HEX Alton - Page 37

Assembly Guide
35

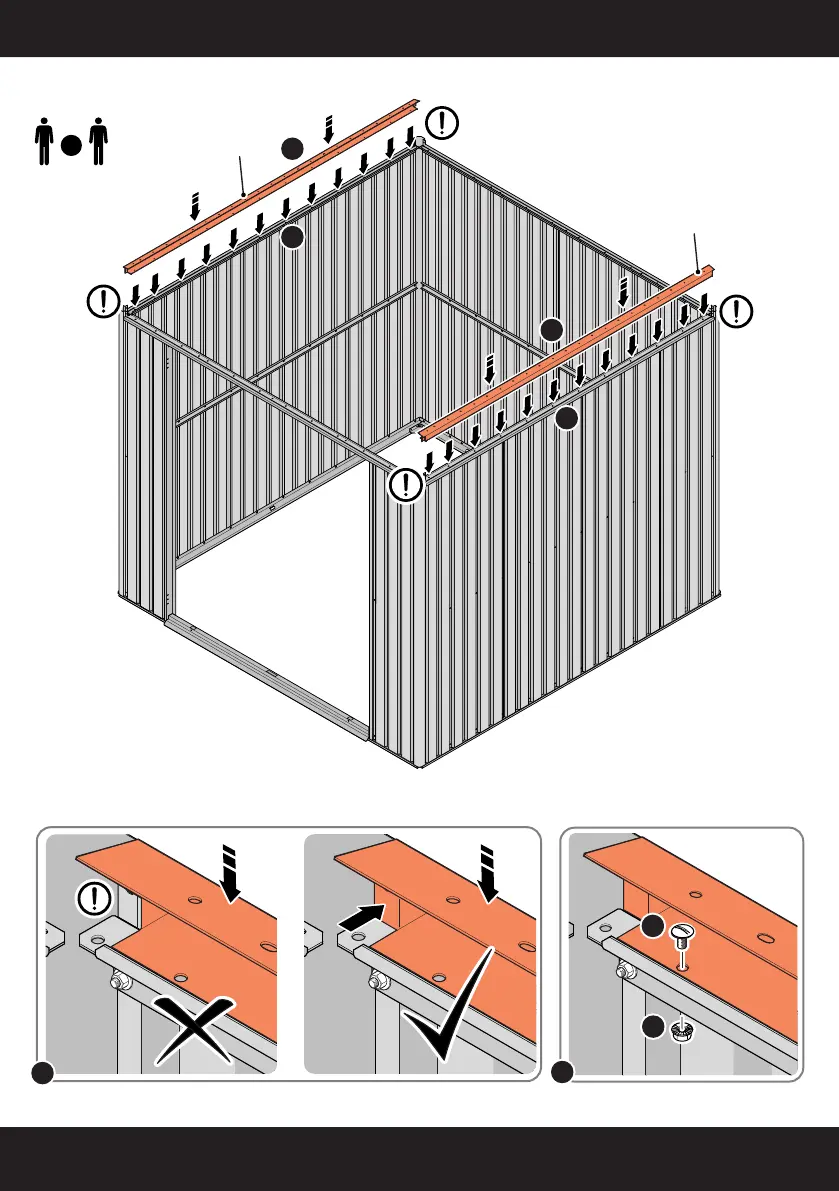

ASSEMBLY STAGE 30
LOCATE AND SECURE ROOF INFILL SIDE 0256-05.
0256-05
0256-05
x2
IMPORTANT: ENSURE ROOF SIDE INFILL 0256-05 IS FITTED ON THE INSIDE AND NOT ON THE OUTSIDE AS ILLUSTRATED ABOVE.
FK5
LOCATE AND SECURE ROOF SIDE INFILL 0256-05 AT x12 LOCATIONS INDICATED AS SHOWN ABOVE ON EACH SIDE.
FK1
30A
30A
30A
30B
30B
30B
