HEX Alton - Page 38

Assembly Guide
36
ASSEMBLY STAGE 31

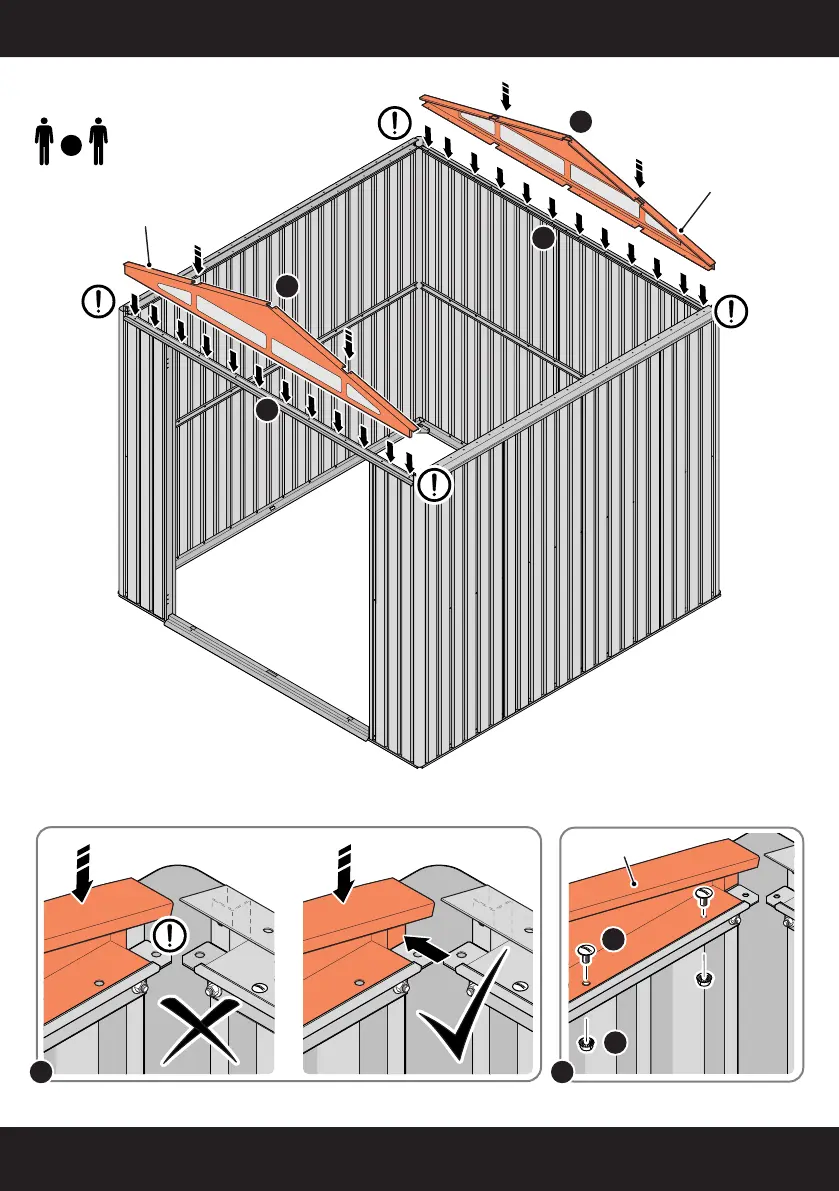

LOCATE AND SECURE ROOF FRONT INFILL 0252-14.
x2
0252-14
0252-14
31A
31A
31A
FK1
FK5
0252-14
LOCATE AND SECURE WINDOW ASSEMBLY 0252-14 AT LOCATIONS INDICATED AS SHOWN ABOVE.
IMPORTANT: ENSURE WINDOW ASSEMBLY 0252-14 IS FITTED ON THE INSIDE AND NOT ON THE OUTSIDE AS ILLUSTRATED ABOVE.
31B
31B
31B
