Assembly Guide
37

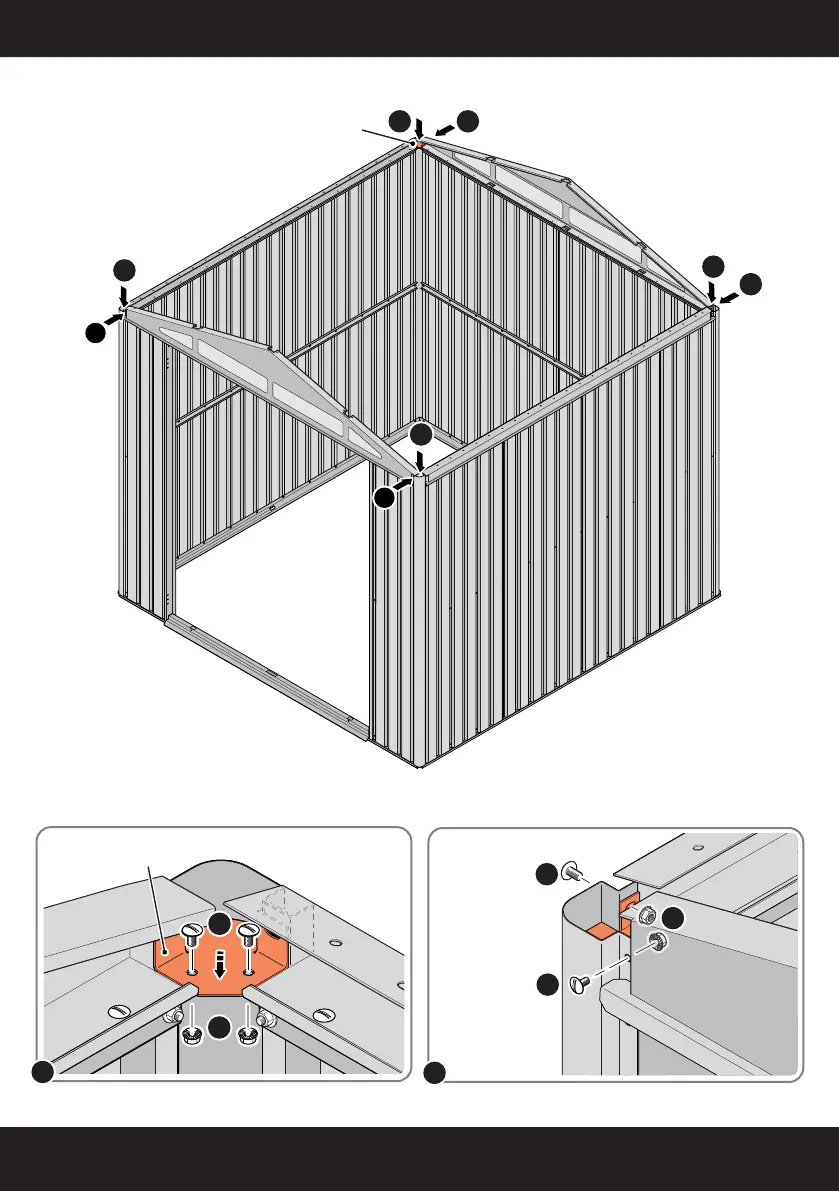

ASSEMBLY STAGE 32
LOCATE AND EACH CORNER BRACKET 0203-15 TO ROOF INFILL AT FOUR LOCATIONS.
32B
32A
FK1
FK1
FK1
FK5
FK5
SECURE EACH CORNER BRACKET 0203-15 TO ROOF INFILLS AT
LOCATIONS INDICATED AS SHOWN ABOVE.
SECURE EACH CORNER BRACKET 0203-15 TO ROOF INFILLS AT
LOCATIONS INDICATED AS SHOWN ABOVE.
0203-15
0203-15 (x4)
32A
32A
32A
32A 32B
32B
32B
32B
