Assembly Guide
38

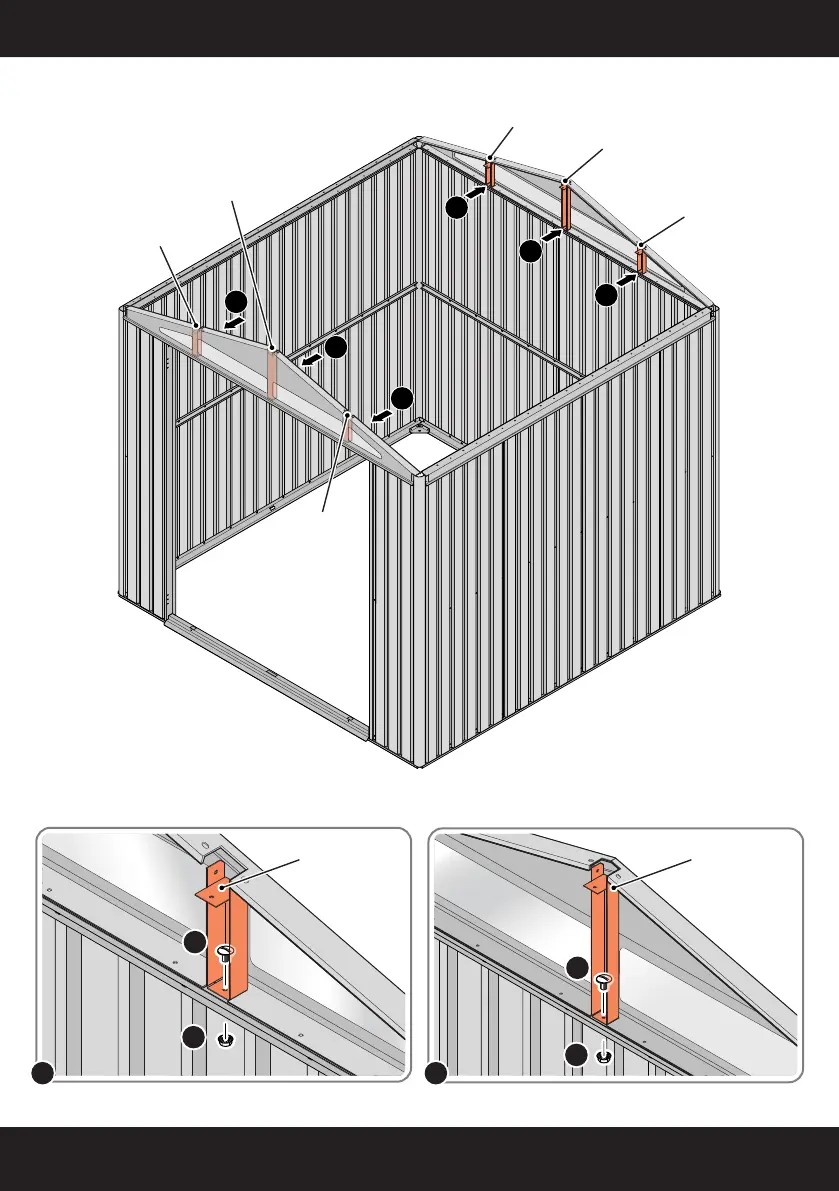

ASSEMBLY STAGE 33
LOCATE AND SECURE ROOF SUPPORTS 0252-07 AND 0252-11.
0252-11
0252-11
0252-07
0252-07
0252-11
0252-11
33B
33A
33A
33B
33A
33A
LOCATE AND SECURE SHORT ROOF SUPPORT 0252-11 AS SHOWN ABOVE. LOCATE AND SECURE LONG ROOF SUPPORT 0252-07 AS SHOWN ABOVE.
FK5
FK1
33A
0252-11 (x4)
FK5
FK1
0252-07 (x2)
33B
