Assembly Guide
55

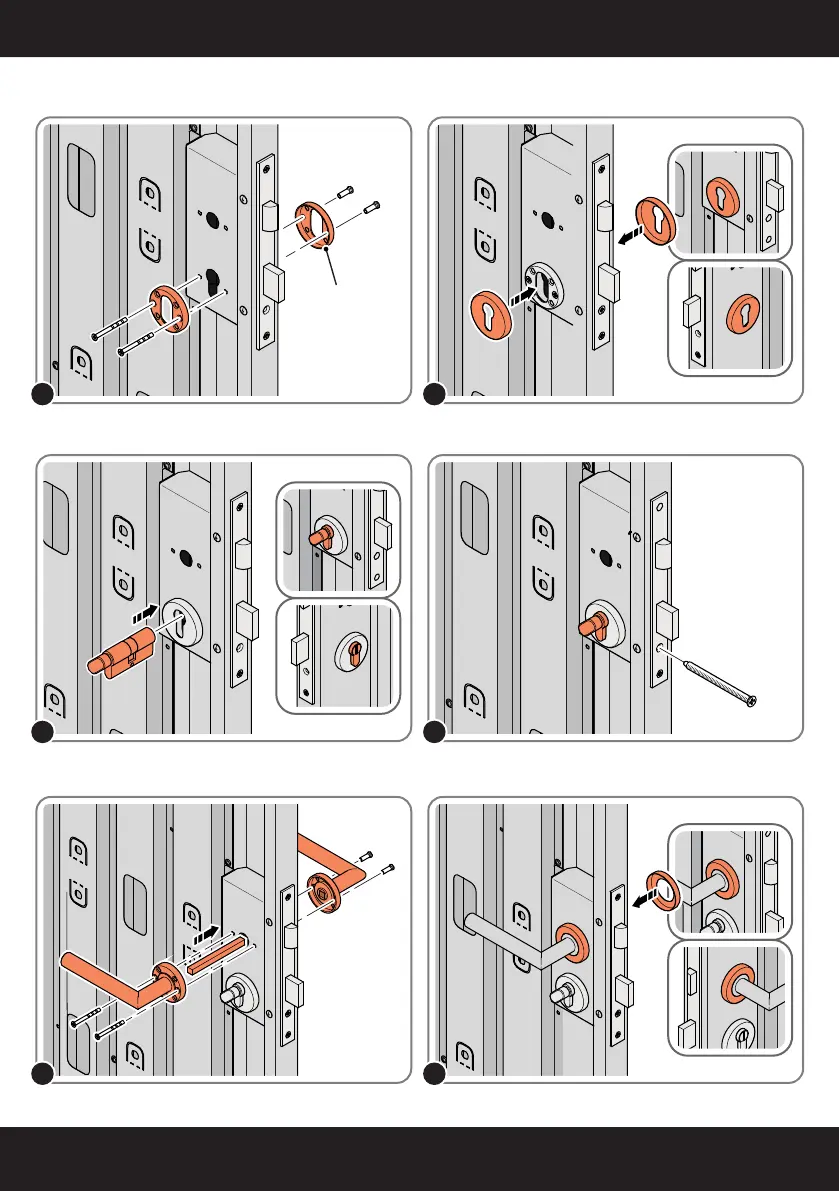

LOCATE COVER ONTO DOOR HANDLE AS SHOWN.
PLEASE NOTE: THESE ARE PUSHED ON AND WILL CLICK INTO PLACE.
LOCATE AND SECURE DOOR HANDLE ASSEMBLY 0203-33 AS SHOWN.
49H49G
PLEASE NOTE: FIXING IS PART OF THE EURO MORTICE LOCK ASSEMBLY.
SECURE EURO CYLINDER 0203-36 AS SHOWN ABOVE.
49F
LOCATE EURO CYLINDER 0203-36 INTO DOOR APERTURE.
IMPORTANT: ENSURE COVER IS FITTED AS SHOWN.
49E
LOCATE EURO ESCUTCHEON COVER 0203-34 ONTO EURO ESCUTCHEON AS SHOWN.
PLEASE NOTE: THESE ARE PUSHED ON AND WILL CLICK INTO PLACE.
49D
0203-34
LOCATE AND SECURE EURO ESCUTCHEON 0203-34 AS SHOWN.
49C
ASSEMBLY STAGE 49 CONTINUED
LOCATE AND SECURE RIGHT-HAND DOOR ASSEMBLY 0205-36 FURNITURE.
