HEX Alton - Page 58

Assembly Guide
56
ASSEMBLY STAGE 50

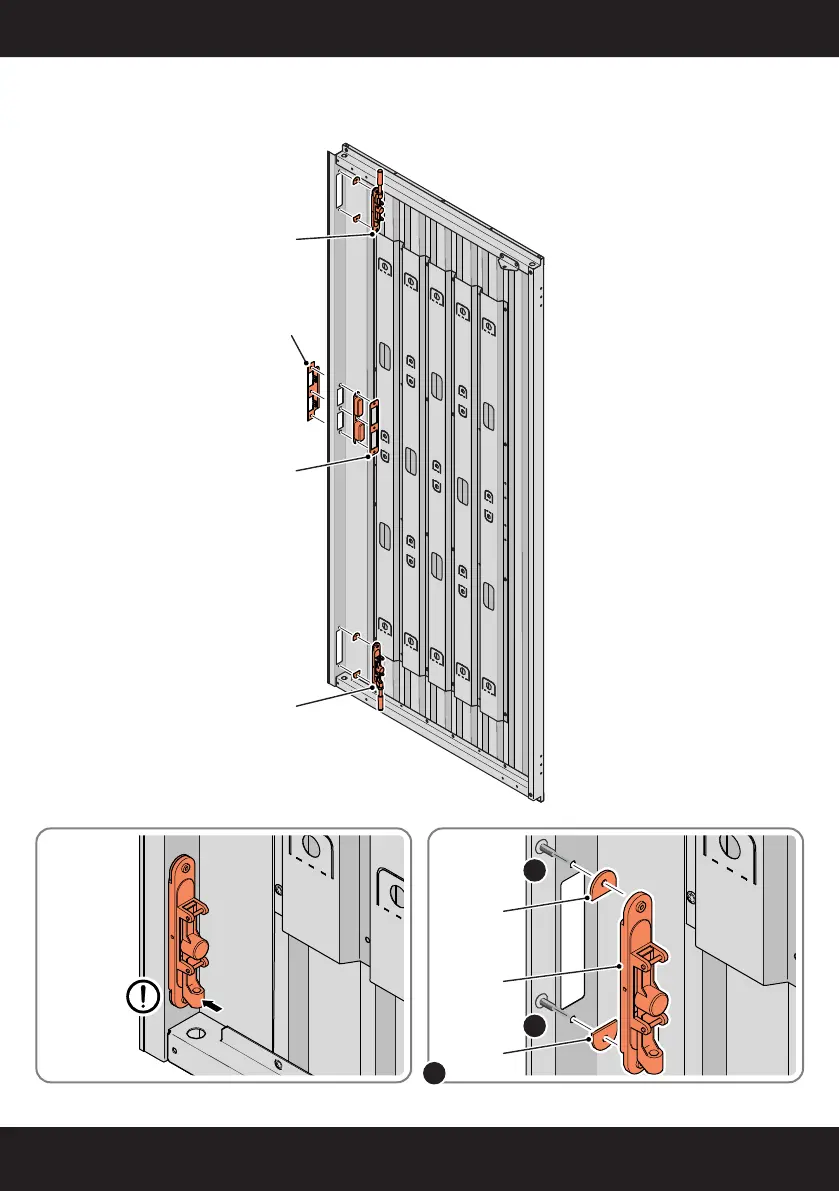

LOCATE AND SECURE LEFT-HAND DOOR ASSEMBLY 0205-37 FURNITURE.
SECURE EACH FLUSH DOOR BOLT ENSURING PLATE PACKER 0203-40 IS
LOCATED AS SHOWN ABOVE.
ENSURE THE PLUNGER INDICATED IS FACING THE BOTTOM OF THE DOOR,
LOCATE AS SHOWN ABOVE AND SECURE USING ADJACENT FIXING METHOD.
LOCATED AS
SHOWN
FK1
FK1
0203-40
0203-40
0203-35
50A
0203-35
0203-35
0203-32
0203-41
