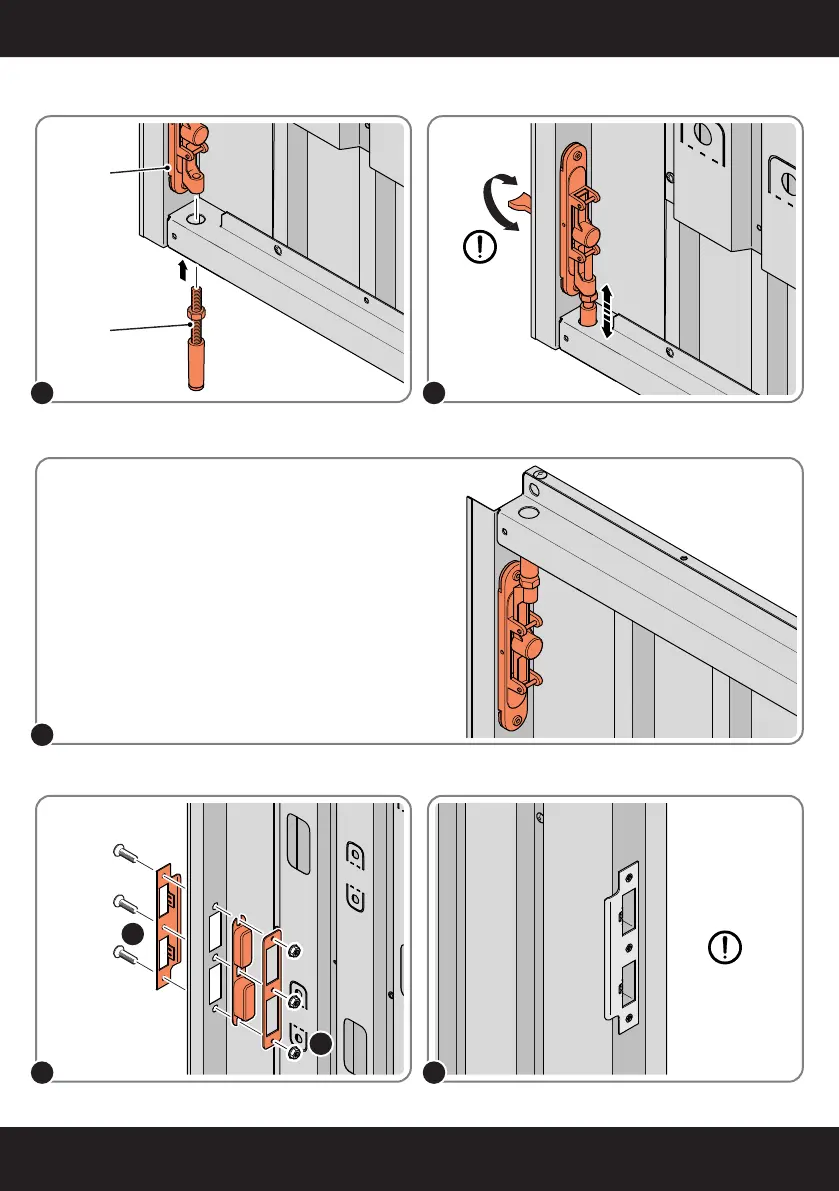

LOCATE AND SECURE LEFT-HAND DOOR ASSEMBLY 0205-37 FURNITURE.
ASSEMBLY STAGE 50 CONTINUED
50D
50B
50F50E
0203-35
FLUSH DOOR
BOLT
0203-35
DOOR BOLT
ENSURE FLUSH DOOR BOLT OPENS AND CLOSES.
OPEN / CLOSE
50C
ATTACH DOOR BOLT ONTO FLUSH DOOR BOLT.
REPEAT 50A / B / C FOR UPPER FLUSH DOOR BOLT
LOCATE AND SECURE UPPER FLUSH DOOR BOLT 0203-35
USING PROCEDURES 50A / B / C, PLUNGER WILL FACE
UPWARDS TOWARDS THE TOP OF THE DOOR
VIEW FROM FRONT
SECURED EURO MORTICE LOCK 0203-32 AS SEEN FROM FRONT.LOCATE AND SECURE EURO MORTICE LOCK 0203-32 AND CATCH
PLATE COVER 0203-41 AS SHOWN ABOVE.
