HEX Alton - Page 60

Assembly Guide

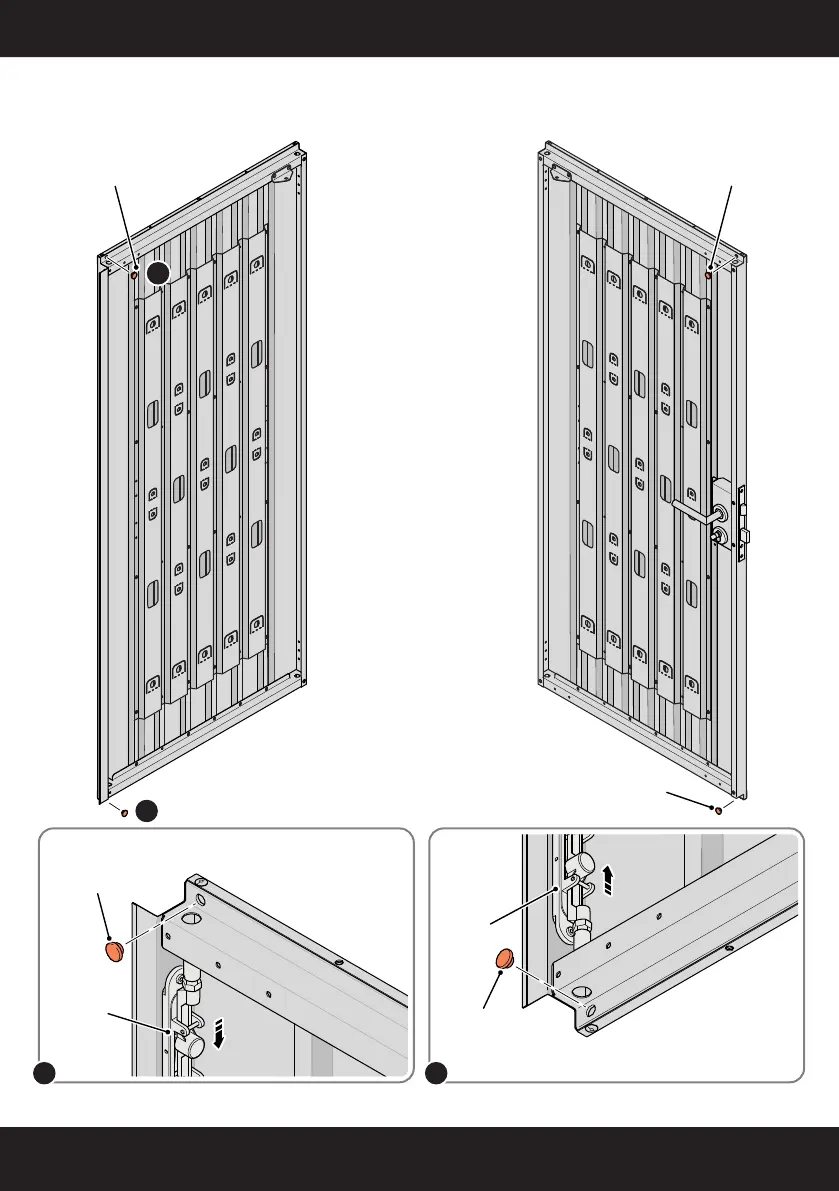

ASSEMBLY STAGE 51
LOCATE AND SECURE A DOOR GROMMET 0203-57 AT EACH LOCATION INDICATED.
LOCATE DOOR GROMMENT 0203-57 AT x2 LOCATIONS INDICATED. LOCATE DOOR GROMMENT 0203-57 AT x2 LOCATIONS AS SHOWN.
0203-35
0203-35
0203-57
PLEASE NOTE: T HESE ARE PUSHED ON AND WILL CLICK INTO PLACE.
PLEASE NOTE: 0203-35 FLUSH BOLTS ARE ALL IN THE UNLOCKED POSITIONS.
0203-57
51B51A
58
0203-57 0203-57
0203-57
51B
51A
