3.5 CAN-COM HUB introduce
CAN-COM HUB is a protocol conversion device. It is a device that must be
equipped for communication using the XROS development package and USB serial
port. This device is not included in the default configuration. If necessary, please
contact customer service.
3.5.1 HUB Connection Diagram
USB CAN-H/L 4PIN interface

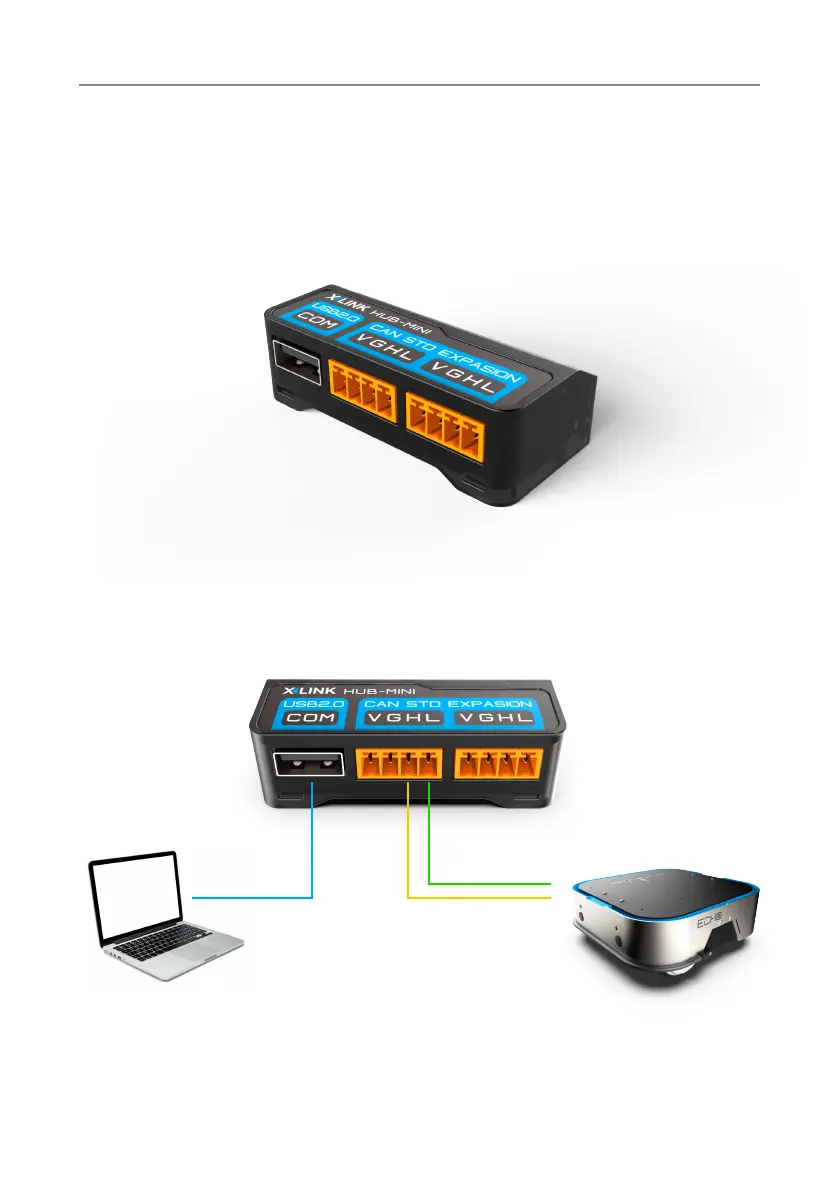

Figure 3.2 Example of HUB connection
Figure 3.1 CAN-COM HUB
