HF Protoss-PE11 User Manual

Protoss-PE11 User Manual
http://www.hi-flying.com - 9 -
2.1. Protoss-PE11 Pins Definition

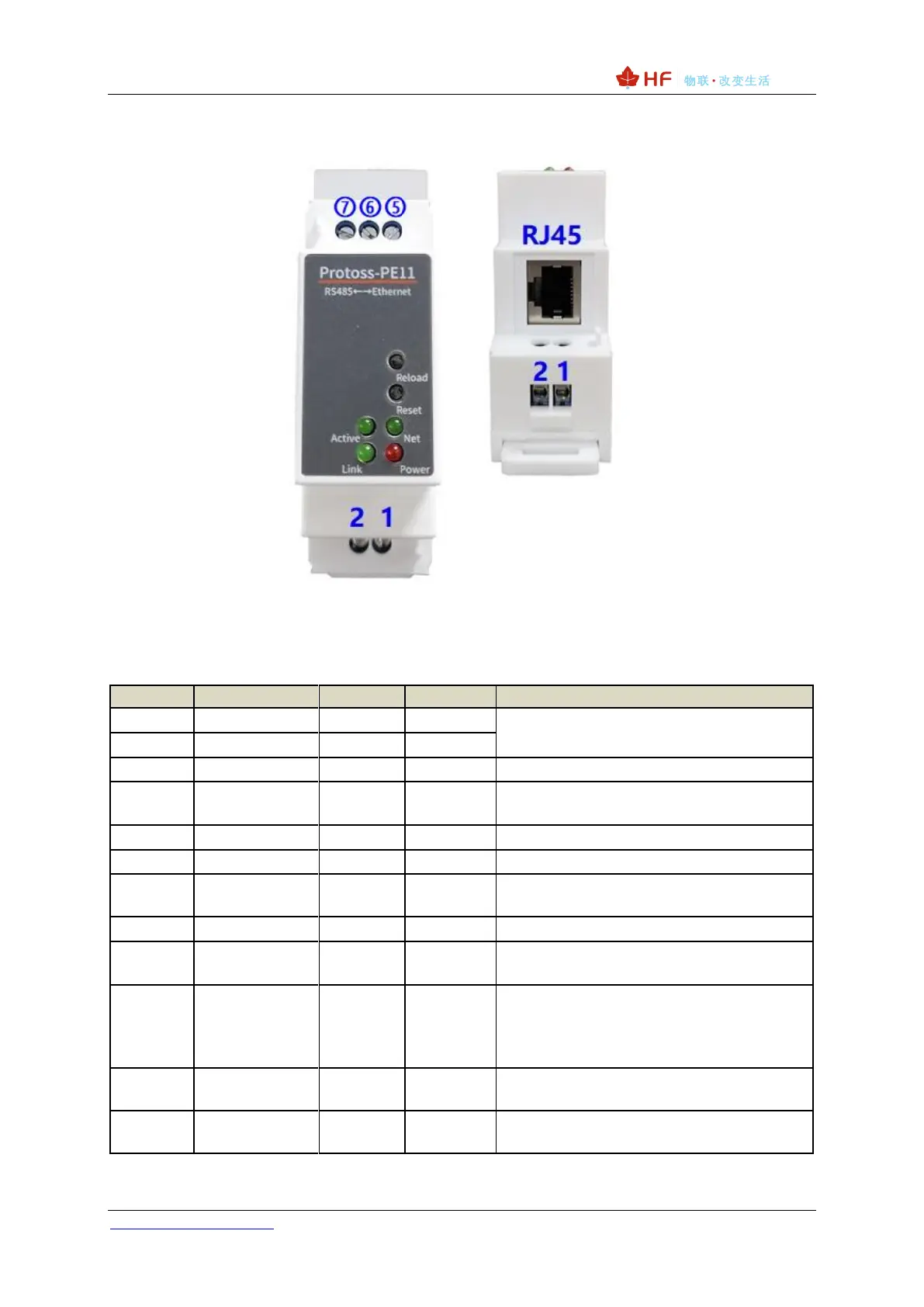

Figure 2. Protoss-PE11 Interface
Table2. Protoss-PE11-H Interface Definition
Pin
Description
Net Name
Signal Type
Comment
1
AC Power Input
L
Power
100～240VAC Input
2
AC Power Input
N
Power
5
RS485_B-
IO
RS485 B-
6
Signal GND
GND
Power
Used for RS485 GND, usually leave it
unconnected
7
RS485_A+
IO
RS485 A+
RJ45
Ethernet
RJ45
I/O
Reload
Restore to factory
setting button
Reload
I
Press down for more than 3 seconds and
loose to restore factory setting.
Reset
Reset button
Reset
I
Hardware reset button
Net
Network status
LED
Net
O
On: Ethernet connection is OK
Off: No Ethernet connection
Active
UART Data
Transfer
Active
O
Off: No data transfer
0.3s Off -> 0.9s On: UART TX Output
0.3s Off -> 0.3s On: UART RX Receive
On: UART bidirection.
Power
Power LED
Power
O
On: Power input OK
Off: Power input NG.
Link
Server
connection LED
Link
O
On: netp Socket connection OK.
Off: no netp Socket connection.
