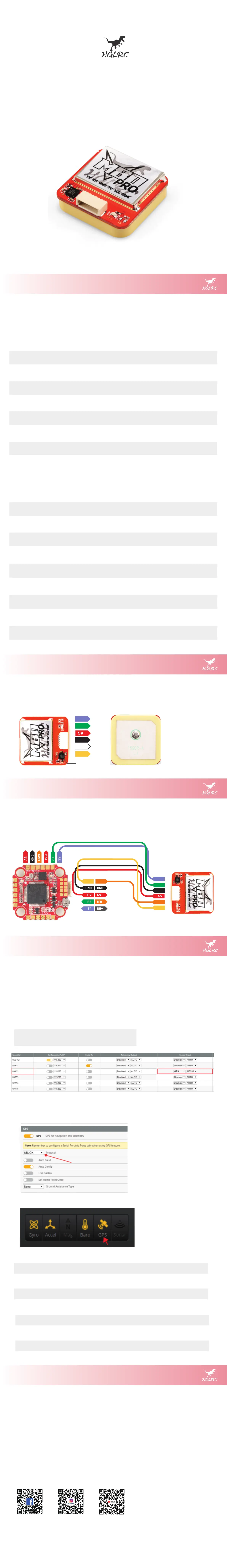

HGLRC M80 Pro GPS
manual
M80 Pro GPS
instruction manual
M80 Pro GPS
instruction manual
Product parameters
Interface definition
M80 Pro GPS
instruction manual
M80 Pro GPS
instruction manual
Wiring Diagram
Function and application description
M80 Pro GPS
instruction manual
Precautions for use
Item Name:HGLRC M8 PRO GPS
Chip:M8030
Power Supply:5V
Antenna:Ceramic Antenna
Receiving Format:GPS,GLONASS,GALILEO,QZSS,SBAS,BDS
Receiving Channel: 72 Searching Channel
Support Rate:115200dps
Output Protocol:UBLOX
Compass:QMC5883
Output Frequency:1Hz-10Hz,Default 10Hz
SpeedPrecison:0.05m/s
Level Positioning Precision: 2D Acc 1.5m(ln Open Air)
Receiving Sensitivity: Trace -167dBm Capture-160dBm
Dynamic Characteristics: Max Height:50000m
Working Temperature:-40°C-+85°C
Storage Temperature:-40°C-+105C
Size:25mmx 25mm x8.3mm
Weight: 12.5g
1.Take the wiring diagram for example,GPS is connected to TX2/RX2, which is the
UART2 port of flight controller
(Note: Be sure to connect the spare port or GPS dedicated port)
2.Firstly,please open the software of Betaflight Configurator and then enter
theinterface of“port”
3.Then open the configuration interface to enable GPS
4.After the setting is completed, please check if the GPS has communication
1. The positive and negative poles of the input voltage are within the specified range.
Otherwise, the GPS will be damaged and no warranty is given.
2. Pay attention to static electricity protection during transportion and using.
Next, find out the UART2 and the sensor input,and then
please turn on the GPS and select the dps rate of 115200
5.If the GPS icon lights up
it means GPS has communication normally
6.If the GPS indicator is not on, please plug in the battery for the flight controller
Some flight controllers need to plug in the battery and then GPS can work normally in this way
7.If the GPS icon does not display or the GPS indicator does not light (powered already)
please check if the wiring is correct or the supplying voltage is normal
8.Betaflight doesn't support QMC5883 compass temporarily
If you need to connect to the compass,please use INAV firmware
and then choose the protocol of UBLOX
SCL
RX
TX
GND
SDA
SCL
RX
TX
GND
SDA
SDA
SCL
Compass
(this side is the
antenna,it must
face up to the sky)
Cold-start-148dBm
Max Speed:500m/s
Max Acceleration:4G
