24G-24.25GHz
Frequency
Typical value
Parameter
Current
70mA
Output serial
level
3.3V
Detection cycle
Adaptive
Vertical
Horizontal
3. Module performance
Modulation CW
Detection distance >4m Static human presence detection>16m motion detection
Scope The hanging height is 3m, the static body detection coverage radius is 2m, and
the mobile detection radius is >5m
Data Format Serial ASCII output/or high and low level
Start Time About 15 s

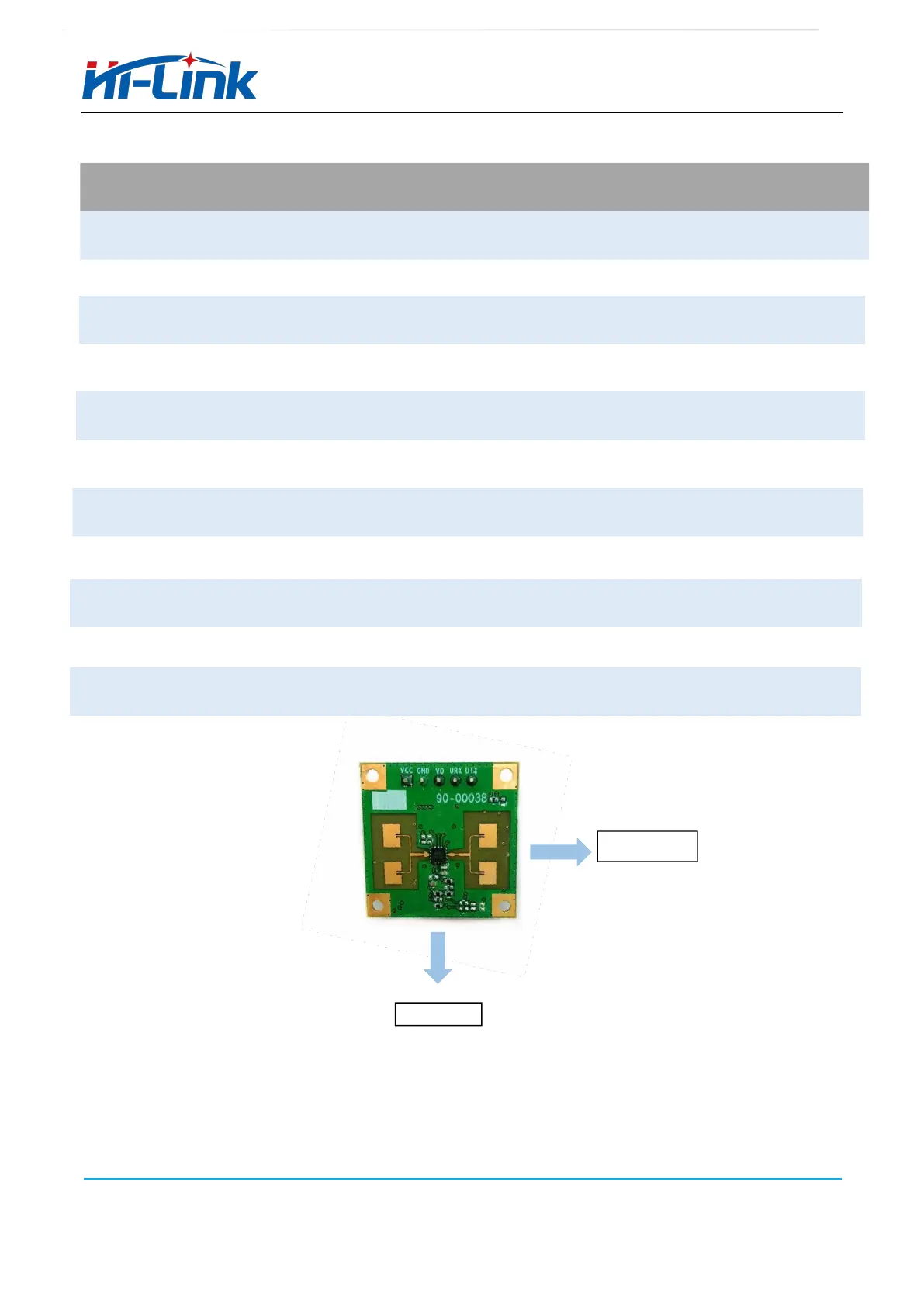

Antenna half power angle Horizontal ±57°, vertical ±24° (see the figure below for the definition of the
horizontal/vertical direction of the antenna)
