6. Radar installation and testing
Test Application Scenario 1: Wall Mounting Linear Test

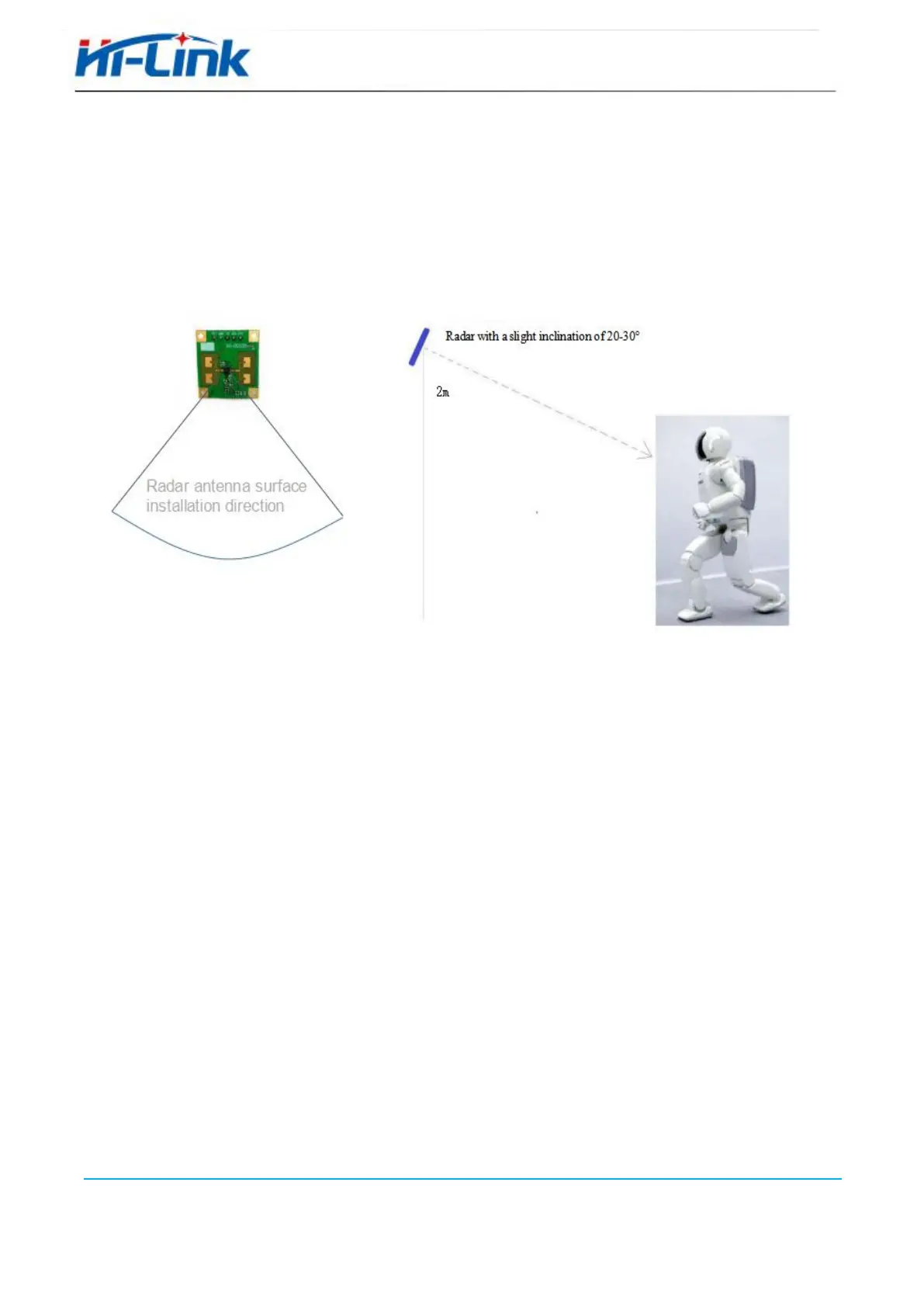

The installation height is 2 meters, and the human body is facing the radar when measuring. Test coverage in
both standing and walking states. (There will be a test environment display in the appendix)
Reference coverage
The figure below shows the radar coverage for stationary standing (orange area) and
motion (blue area). for reference. (The left and right range of the blue motion detection is
limited by the test site, and only 4.5 meters on the left and right can be measured. The actual
coverage may be larger. For details, please refer to the Appendix Test Environment
Reference sensitivity configuration 1:
th1=120 (corresponding to motion detection sensitivity)
th2=250 (corresponding to presence detection sensitivity)
