Hi-Link HLK-LD2410 User Manual

Shenzhen Hi-Link ELectronics Co.,Ltd
User Manual
HLK-LD2410
10
size, state, and RCS of the target, the target distance accuracy will fluctuate; at the same time,
the longest distance will also fluctuate slightly.
6.Performance and Electrical Parameters
Operating frequency
24GHz~ 24.25GHz
Compliant with FCC, CE, non-commission
certification standards
Operating Voltage
5V
（
Can accept 5V ~ 12V voltage power supply)
Average operating current
80 mA
Modulation
FMCW
Interface
A GPIO，IO level 3.3V
A UART
Target application
Human presence sensor
Detection distance
0.75m
～
6m
，
adjustable
Detection angle
±60 °
Distance resolution
0.75m
Sweep Bandwidth
250MHz
Compliant with FCC, CE, non-commission
certification standards
Ambient temperature
-40 ~ 85℃
Dimensions
7mm x 35 mm
Table 2 Performance and Electrical Parameters Table

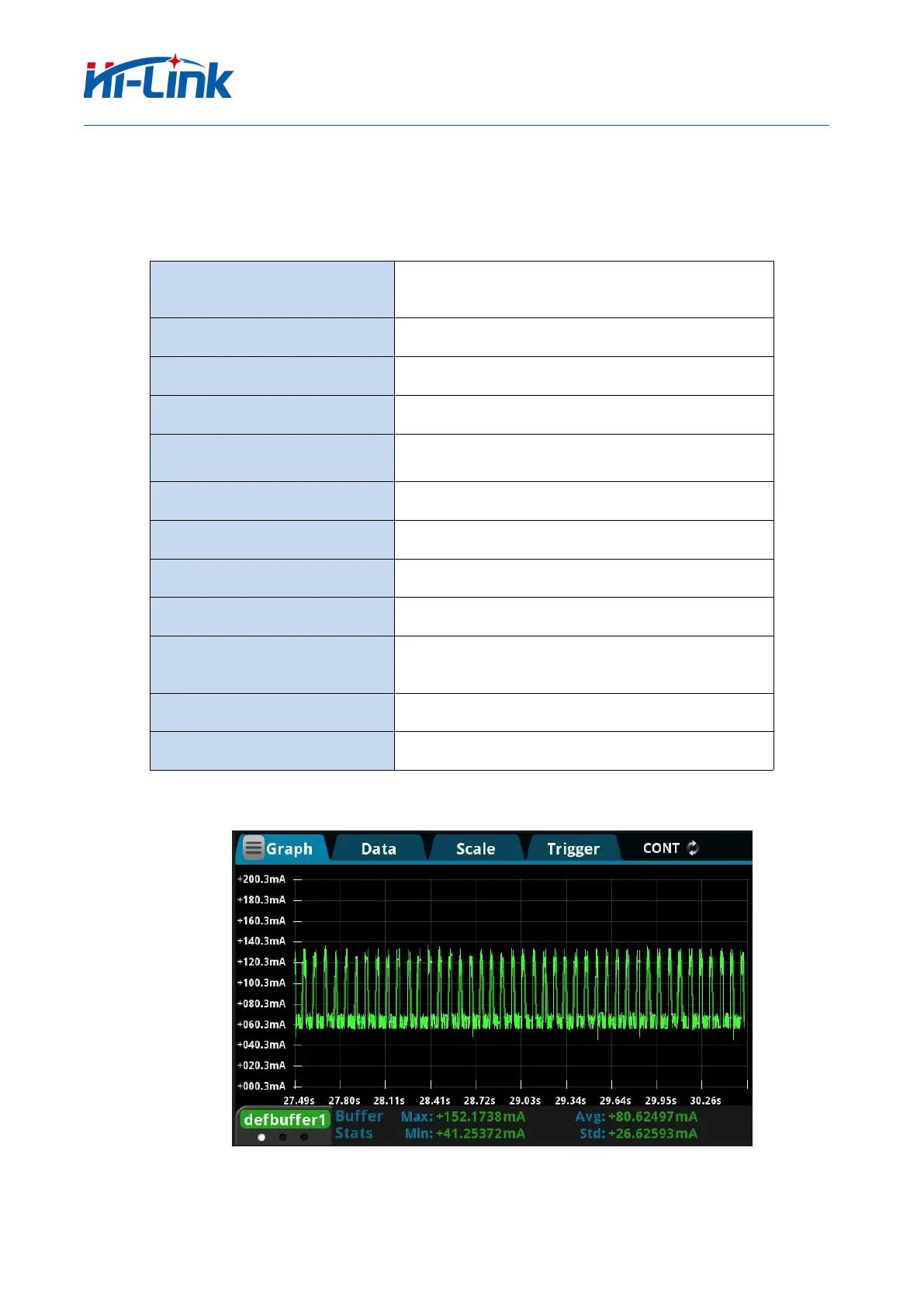

Figure 11 Measured Data of Module Working Current

Hi-Link HLK-LD2410 Specifications

General

Brand	Hi-Link
Model	HLK-LD2410
Category	Control Unit
Language	English
