Shenzhen Hi-Link Electronics Co.,Ltd
User manual
HLK-LD2410B
Page 11 /18
Radar
Wall
5m
High 1.5~2m
(distance unit: meters, angle unit: degrees)

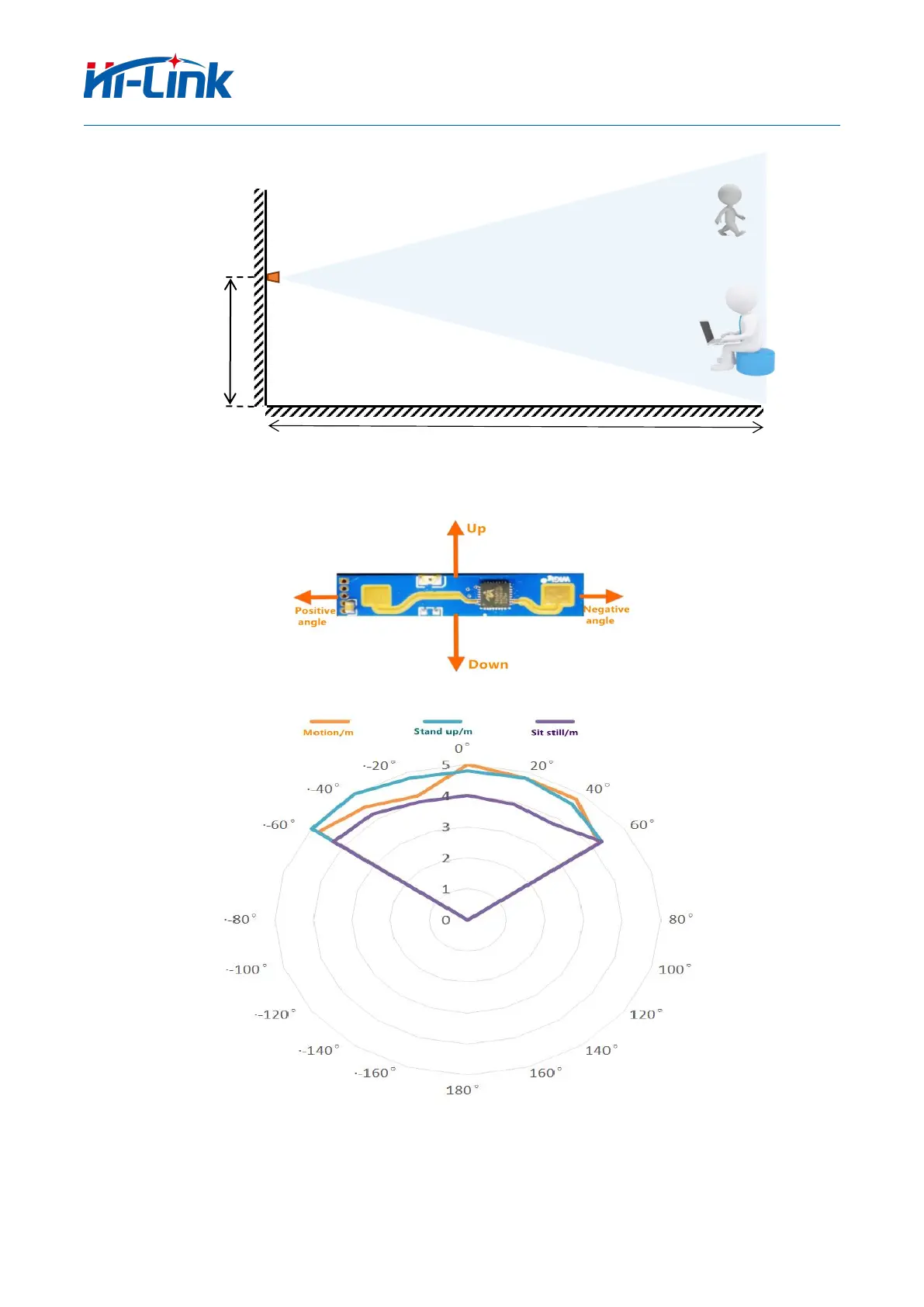

Figure 9 Schematic diagram of wall-mounted installation
Figure 10 Schematic diagram of the detection range (the height of the wall is 1.5 meters)
