Installation Guide for HDD & ODD devices (SATA Type 16CH)

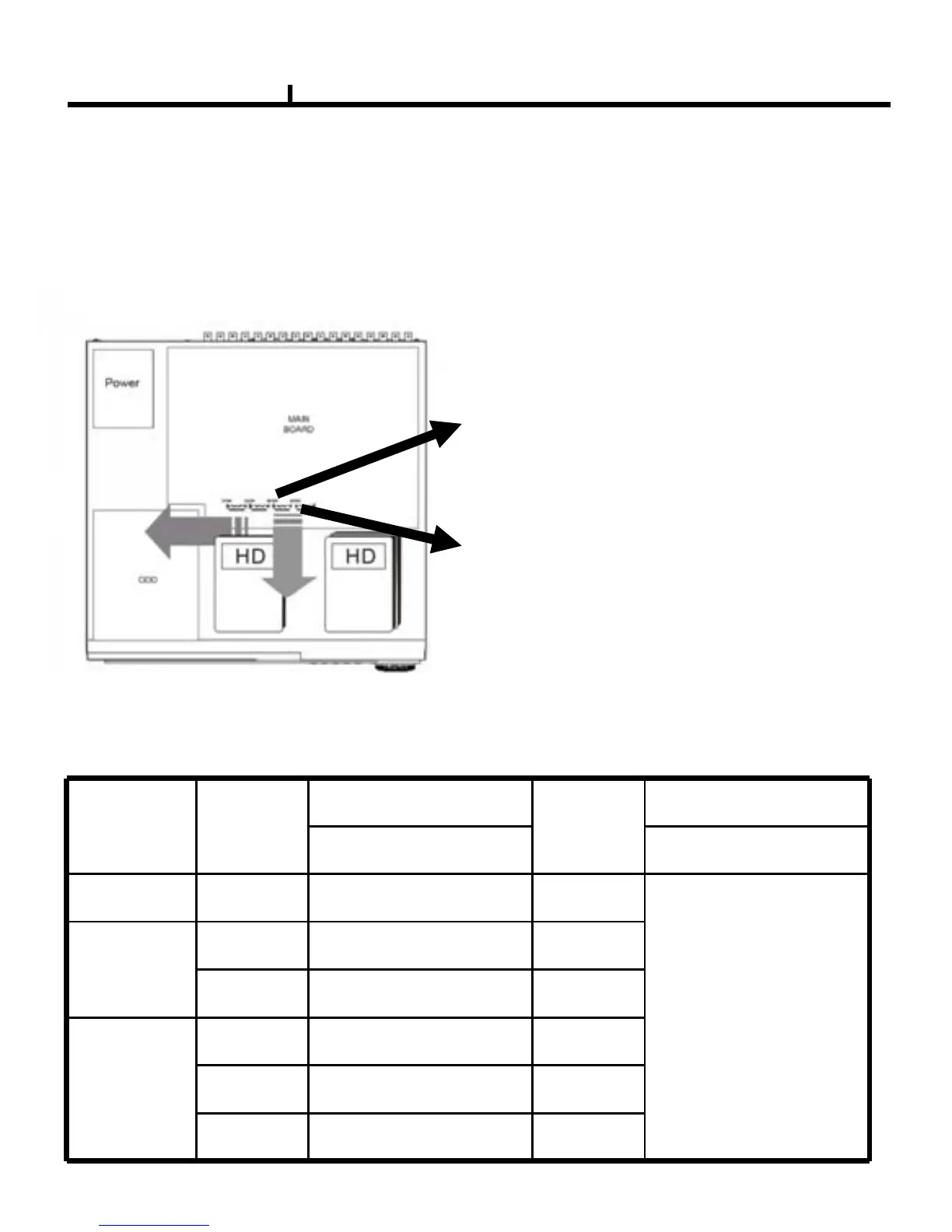

Description
SATA 1 : HDD#1
SATA 2 : HDD#2
SATA 3 : HDD#3
SATA 4 : ODD(CD/DVD)
1. ODD(CD-RW/DVD-RW) devices should be installed as “SATA 4”.
2. HDD for system needs to be installed as “SATA 1”.
Installed HDD
HDD
System
ODD(CD-RW/DVD-RW)
Devices
Connector Connector
HDD x 1 HDD#1 SATA 1 SYSTEM
SATA 4
HDD x 2
HDD#1 SATA 1 SYSTEM
HDD#2 SAAT 2
HDD x 3
HDD#1 SATA 1 SYSTEM
HDD#2 SATA 2
HDD#3 SATA 3
Guide Chart for installing several HDDs
