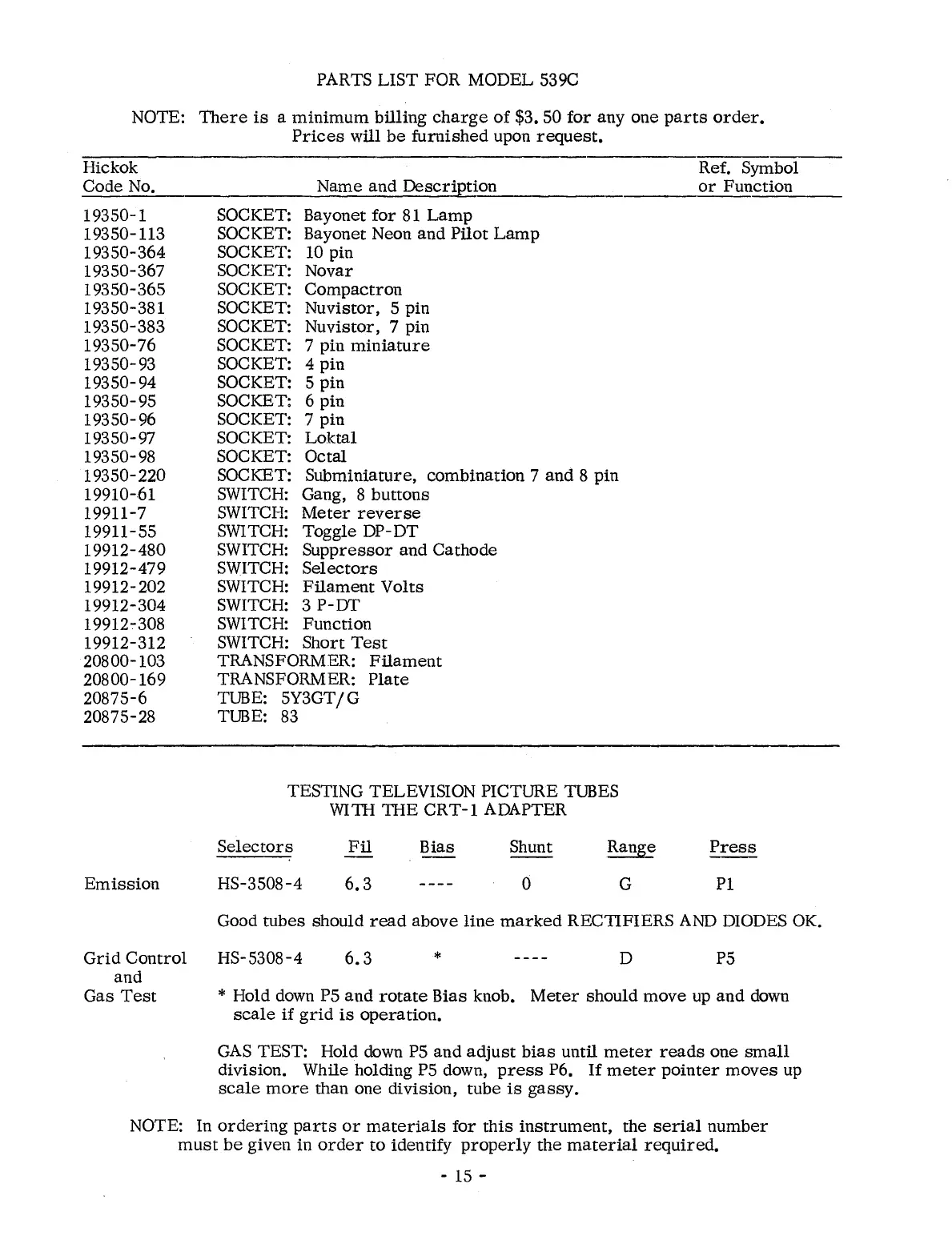

PARTS LIST FOR MODEL 539C
NOTE: There is a minimum billing charge of $3. 50 for anyone parts order.
Hickok
Code No.
19350-1
19350-113
19350-364
19350-367
19350-365
19350-381
19350-383
19350-76
19350-93
19350-94
19350-95
19350-
96
19350-97
19350-98
19350-220
19910-61
19911-7
19911-55
19912-480
19912-479
19912-202
19912-304
19912-308
19912-312
20800-103
20800-169
20875-6
20875-28
Emission
Grid Control
and
Gas Test
Prices will be furnished upon request.
Name and Description
SOCKET: Bayonet for 81 Lamp
SOCKET: Bayonet Neon and Pilot Lamp
SOCKET: 10 pin
SOCKET: Novar
SOCKET: Compactron
SOCKET: Nuvistor, 5 pin
SOCKET: Nuvistor, 7 pin
SOCKET: 7 pin miniature
SOCKET: 4 pin
SOCKET: 5 pin
SOCKET: 6 pin
SOCKET: 7 pin
SOCKET: Lokta1
SOCKET: Octal
SOCKET:
Subminiature, combination 7 and 8 pin
SWITCH: Gang, 8 buttons
SWITCH: Meter reverse
SWITCH: Toggle DP-DT
SWITCH: Suppressor and Cathode
SWITCH:
Selectors
SWITCH: Filament Volts
SWITCH: 3 P- DT
SWITCH: Function
SWITCH: Short Test
TRANSFORMER: Filament
TRANSFORMER: Plate
TUBE: 5Y3GT/G
TUBE: 83
TESTING TELEVISION PICTURE TUBES
WIlli lliE CRT-1 ADAPTER
Selectors Fil
Bias Shunt
HS-3508-4
6.3
o
G
Ref. Symbol
or Function
Press
PI
Good tubes should read above line marked RECTIFIERS AND DIODES OK.
HS-5308-4
6.3
*
D P5
* Hold down P5 and rotate Bias knob. Meter should move up and down
scale if grid is operation.
GAS TEST: Hold down P5 and adjust bias until meter reads one small
division. While holding P5 down, press P6. If meter pointer moves up
scale more than one division, tube is gassy.
NOTE: In ordering parts or materials for this instrument, the serial number
must be given in order to identify properly the material required.
- 15 -
