High-End Technology F-20 - Fan Mounting Procedures

14"
www.EJF.com"
RETRACTS CONTINUED

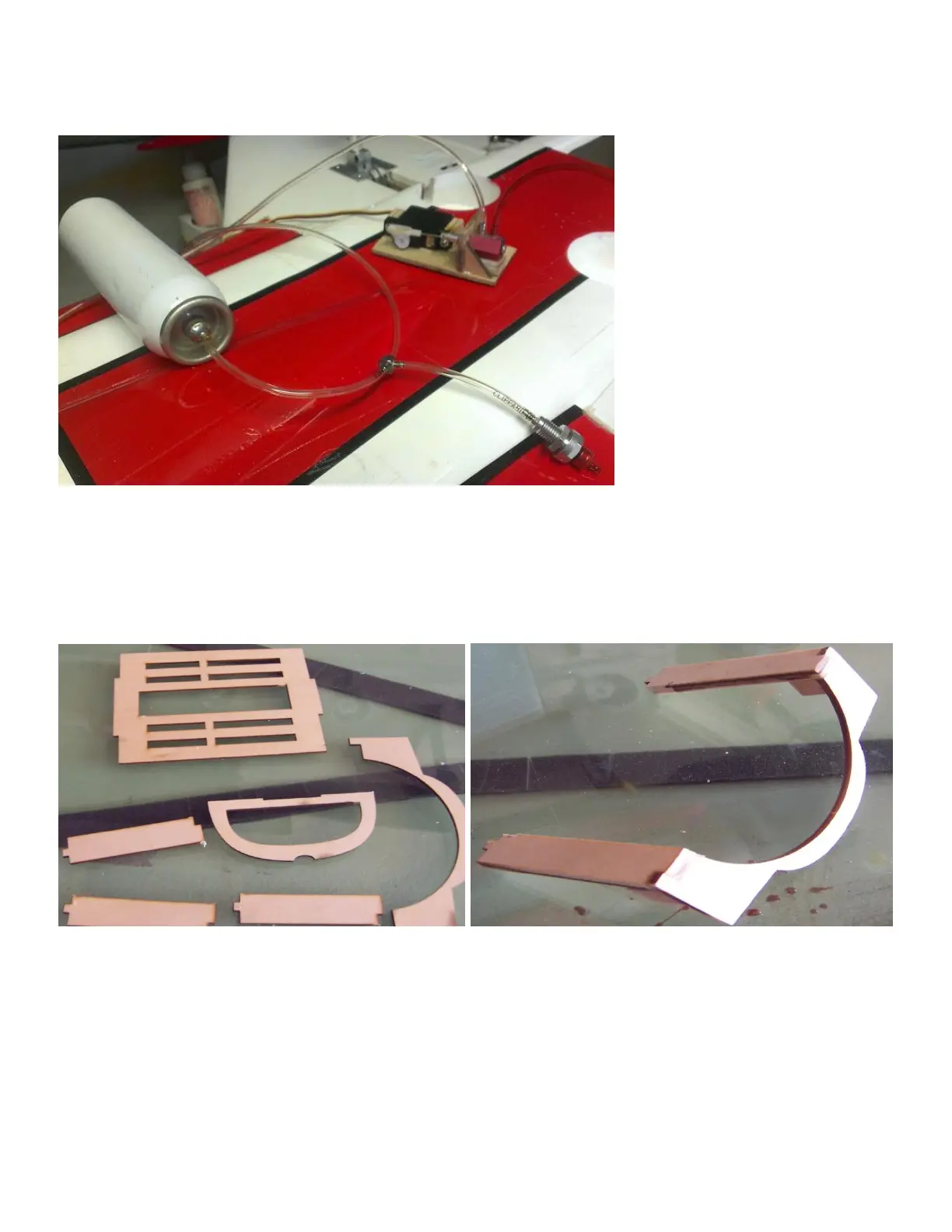

PICTURE ABOVE: Connect your retracts as shown, I used two different color air-lines for illustration. The Red line
above goes to the retracts, the ILUVW³7´WKHQRQHVLGHWRWKHQRVHJHDUDQGWKHVHFRQGVLGHJRHVWRWKH0DLQ*HDULQWKH
wing.
FAN MOUNTING
PICTURE ON LEFT: This are the formers included with the prototype plane. Fan mounting former, there are four rails
and two formers, the four rails are doubled up/glued together to make two rails and then glue them to the two formers, you
can use CA or 5 minute Epoxy.
PICTURE ON RIGHT: Glue your FAN formers together from the three pieces as shown.
