FAN MOUNTING CONTINUED

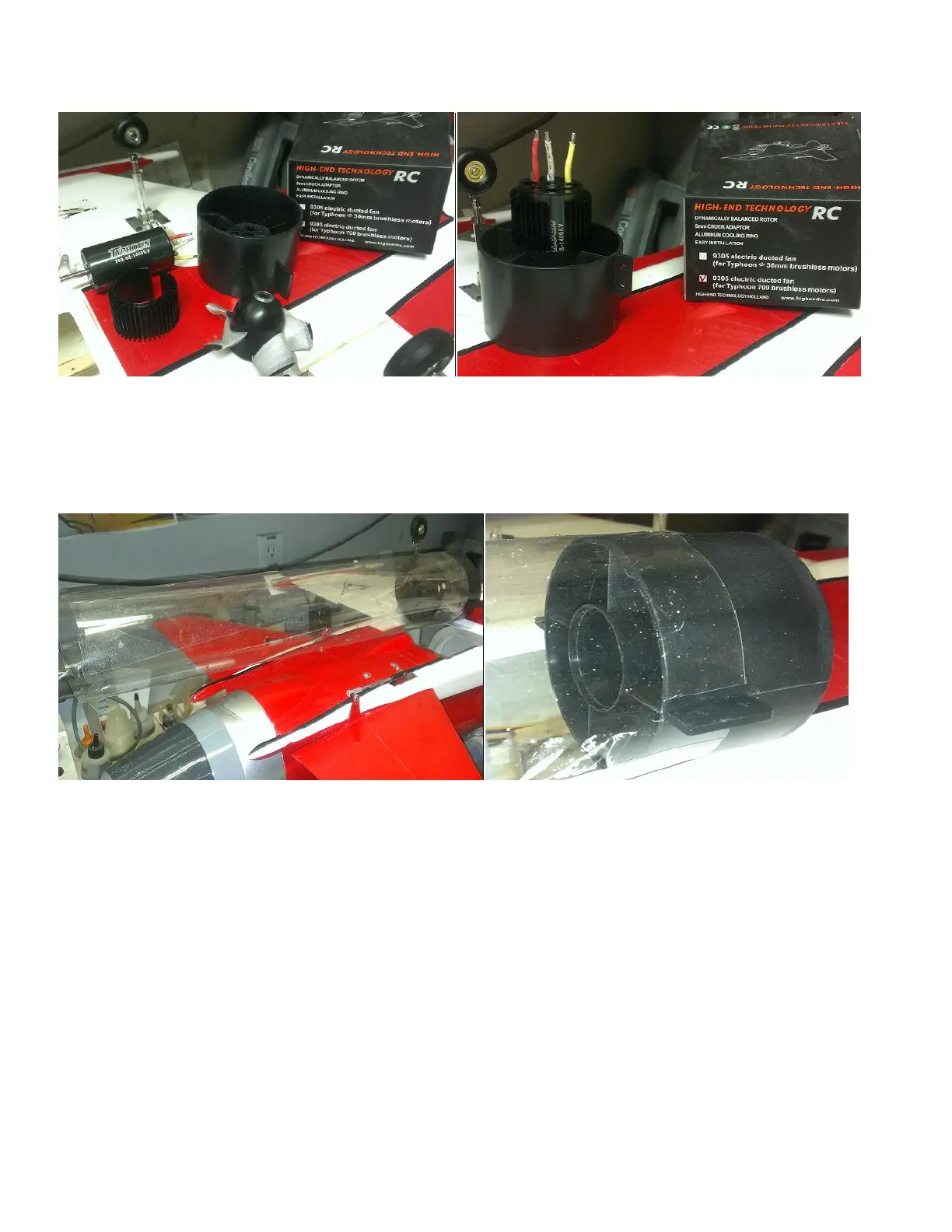

PICTURE ON LEFT: Assemble the Fan and motor of your choice, This is the HET 9305 Fan and the HET 700-68-1400
motor.
PICTURE ON LEFT: Fan and motor assembled and ready to install. This the perfect time to install the connectors for
your Speed Controller (ESC).
PICTURE ON LEFT: Measure your Trust tube, I always use the fan to measure it on front.
PICTURE ON LEFT: Cut two slots on the thrust tube for the ears of the fan to fit around.
