VERTICAL FIN / RUDDER

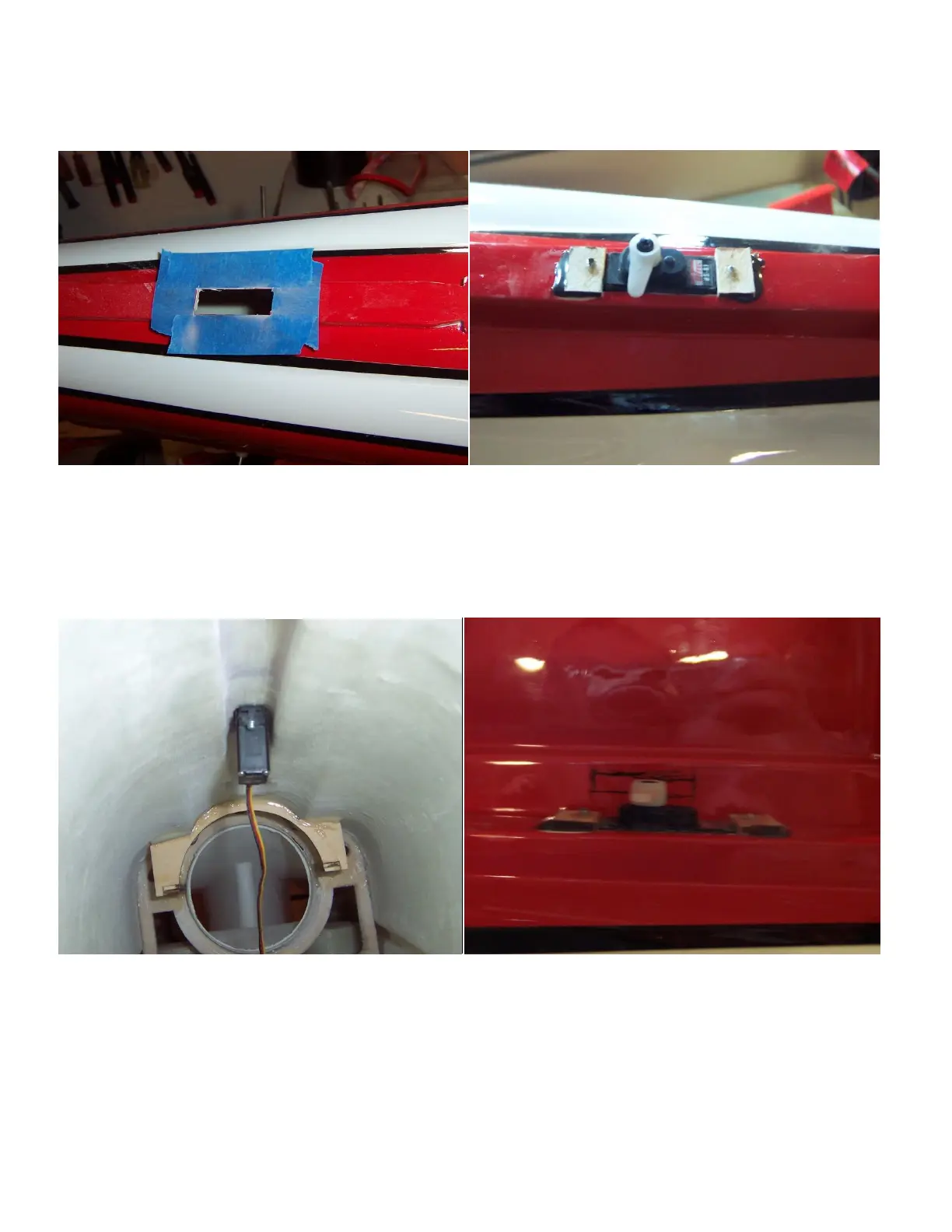

PICTURE ON LEFT: Use your servo to measure and cu the access for the servo, there are many ways to mount a servo.
PICTURE ON RIGHT: If you want to be able to service/access your servo, install it from inside the fuselage, you can
always remove and make changes. Two pieces of wood where glues to hold the servo screws in place.
PICTURE ON LEFT: Rudder Servo as viewed from inside the Fuselage.
PICTURE ON RIGHT: Place the Vertical FIN behind the servo so you can measure where you will need access for your
control Horn. At this point your Rudder servo should be centered using your radio.
