For optimum pickup pe
rf
ormance and ease of installation, please take a
ormance and ea se of installatio n, pl ease take a
moment to read through this Installation Guide before beginning. Thank You.
moment to read through this Installation Guide before beginning. Thank You.
iP-1 INSTALLATION
The information and graphics contained in this document are the property of Highlander Musical Audio Products. Copying of any kind is prohibited, except for personal use only.
©
Highlander Musical Audio Products 1991-2009
THIS INSTALLATION SHOULD ONLY BE UNDERTAKEN BY AN EXPERIENCED LUTHIER
TH IS INSTAL LATI ON SH OU LD ONLY BE UN DE RTA KE N BY AN E XPE RI EN CED LUT HIER
OR A GOOD WOODWORKER WITH EXPERIENCE WORKING ON ACOUSTIC STRINGED INSTRUMENTS.
OR A GOOD W OO DWO RK ER WI TH E XPE RI EN CE WO RK ING O N ACOUS TI C STR IN GE D INS TR UM ENTS.
Using the wrong techniques or tools could result in permanent damage to your guitar.
Highlander is not responsible for any damage resulting from the installation of this pickup system.
Parts Included:
Qty. Description
1 Pre-wired iP-1 Pickup/Preamp Assembly
2 Battery Holder Clips for 9 Volt Battery
2 Pieces of Self Adhesive Velcro® for cable strain relief
Tools Required:
1) HAND DRILL or ELECTRIC DRILL (cordless preferred)
2) MILLING MACHINE or ROUTER AND SADDLE SLOTTING JIG
Used for routing the groove
3)* 17/32" (13.5mm) DRILL BIT, RELIEVED ON RAKE EDGES
Used for drilling guitar end block for the strap jack
4)* 9/16"-12 TPI NC TAP & MACHINIST'S TAP HANDLE
Used for threading end block to accept the strap jack
5)* 1/16" (1.6mm) DIAMETER BALL ENDED END MILL
Used for routing the groove in the bottom of the saddle slot
6) 3/32" (2.5mm) TWIST DRILL BIT
Used for drilling both holes in the saddle slot for the pickup
7) MILLING MACHINE or DISC / BELT SANDER or
MACHINIST'S VISE AND FILE. STRAIGHT EDGE
Used for reducing saddle height to
compensate for the pickup thickness
* The following installation tools are available from Highlander:
17/32" drill bit
9/16"-12TPI tap bit
1/16" router bit
These tools are available individually or as the 'iP-installation kit'

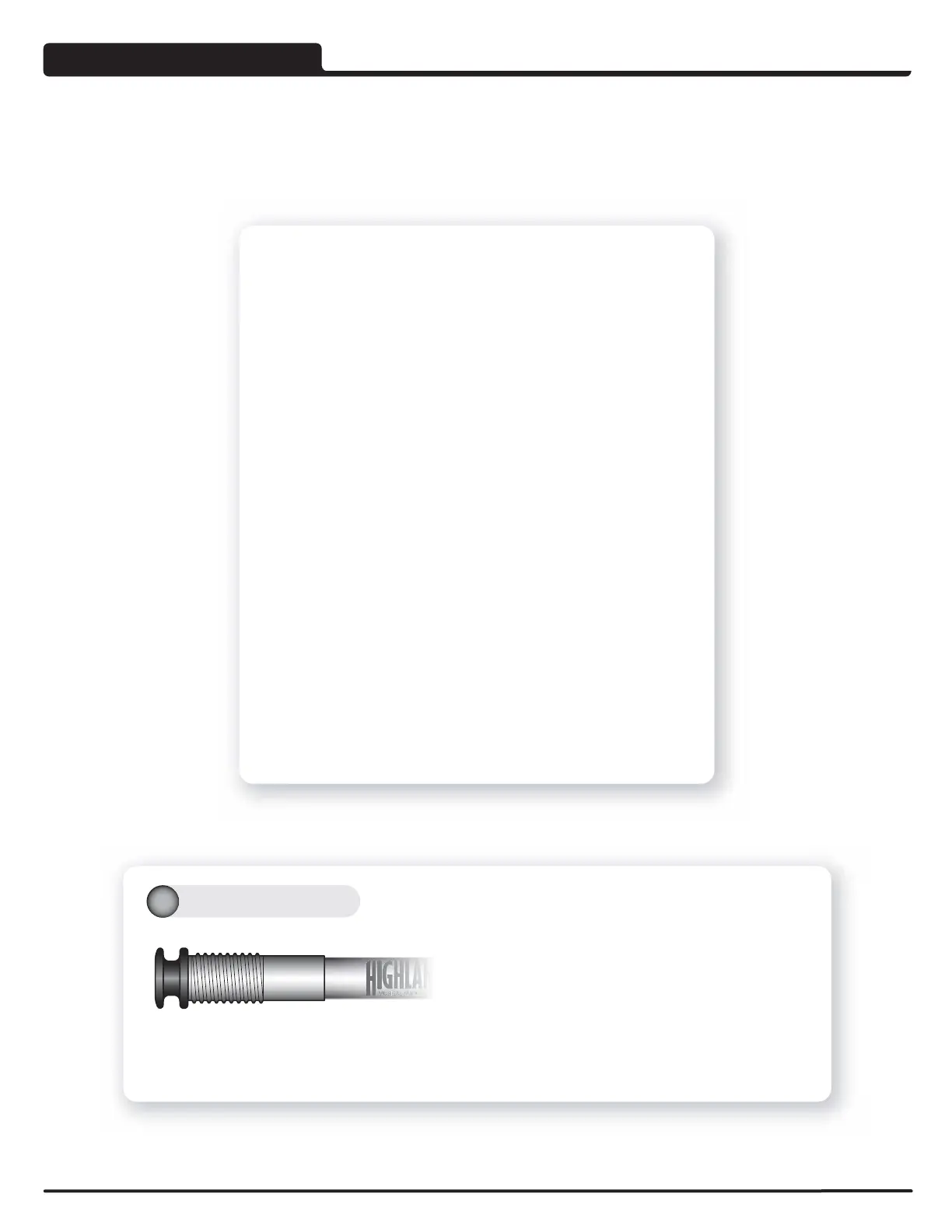

This innovative screw thread is designed
to stay in place regardless of variations in
the end block as it expands and contracts
due to humidity and temperature changes.
By eliminating the typical machine thread
and nut, our preamp will never come loose
and require the awkward task of tightening
a nut at the end pin block inside the guitar.
The elegant strap button holds the strap
securely and will never untwist or loosen.
The iP-1 is turned on when a guitar cord
is plugged in and turned off when it is
unplugged, saving the battery.
About the Output Jack
