HIGHSIDER EVO - Page 2

07/2014 • #161-032A
HIGHSIDER™ handle bar end „EVO“
Mounting Instructions
This HIGHSIDER™ “EVO” handle bar end can be used as an universal bar end or as a
mounting kit for our HIGHSIDER bar end mirrors.
The“EVO” barend tonmost commonhandle barswithan innerdiameter of12mmto
21 mm (that mean most Aluminium and steel handle bars with an outer diameter of 7/8”
(22 mm) to 1” (25,4 mm).
Scope of delivery:
2 x Aluminium handle bar ends (C)
Each 2 x clamp sleeves (E1) + (E2)
Each 2 x centering sleeves (K1), (K2), (K3)
Each 2 x central screw M6 (F), tooth washer (G) and conus-nut (H)
Read this manual carefully and store it.
Step 1:
Unpack the bar ends and check the contents for completeness.
Step 2:
Choose the correct clamp sleeve (E1) (E2) and centering sleeve (K1) (K2) (K3) for your
handle bar.
1. Inner handle bar diameters from 12 mm to max. 13,9 mm: Use sleeve (E1).
2. Inner handle bar diameters from 14 mm to max. 15,9 mm: Use sleeve (E1)+(K1).
3. Inner handle bar diameters from 16 mm to max. 17,9 mm: Use sleeve (E1)+(E2).
4. Inner handle bar diameters from 18 mm to max. 20,9 mm: Use sleeve (E1)+(E2)+(K2).
5. Inner handle bar diameter 21 mm: Use sleeve (E1)+(E2)+(K3).
Step 3:

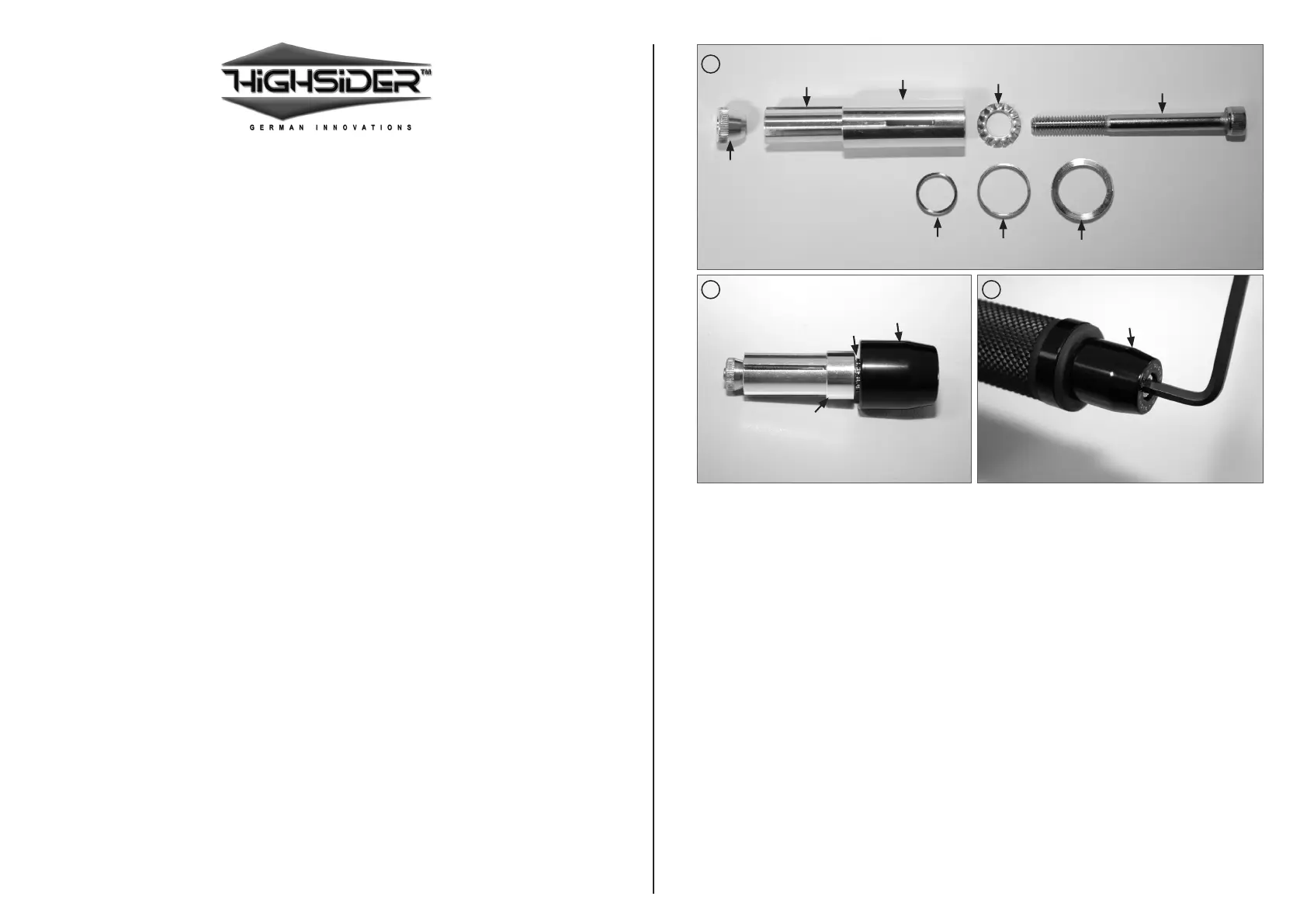

Assemble the clamp sleeves (E1) (E2) and where necessary the suitable centering sleeve
(K1) (K2) (K3) on central screw (F) according to pic. 1+2.
Important: the tooth washer (G) must be placed between the handle bar ends (C) and the
sleeves (E1) (E2).
Pre-tension the clamp sleeve by turning the Allen screw (F),untilthesleevetsmoothlyinto
the bar end. If needed, hold the conus-nut (H) with a multigrip pliers. The handle bar end (C)
shouldlieatonthehandlebartube.
Warning: Make sure that the throttle tube don’t get jammed and can still turn freely!
Tighten the Allen screw (F).
Important notice for optional mirror mounting:
• Attach the mirror arm on the bar end in the desired position, as close to the tube end
as possible.
• Make sure that the throttle tube on the right side may always turn back freely!
A jammed throttle tube can cause bad accidents!
• Adjust the mirror head to guarantee the best view to the rear.
• Please pay attention that the mirror does not impact any parts (e.g. fuel tank) if turning
the handle bar.
• Beforeeachride,makesurethatallpartsarexedwell.
• Damaged mirrors or parts must be replaced immediately.
• Clean your mirror and bar end only with soft cloth and only use suitable soft cleaner.
www.highsider-germany.de
E1
E2
G
K1 K2 K3
H
F
1
2 3
K
G
C
C
