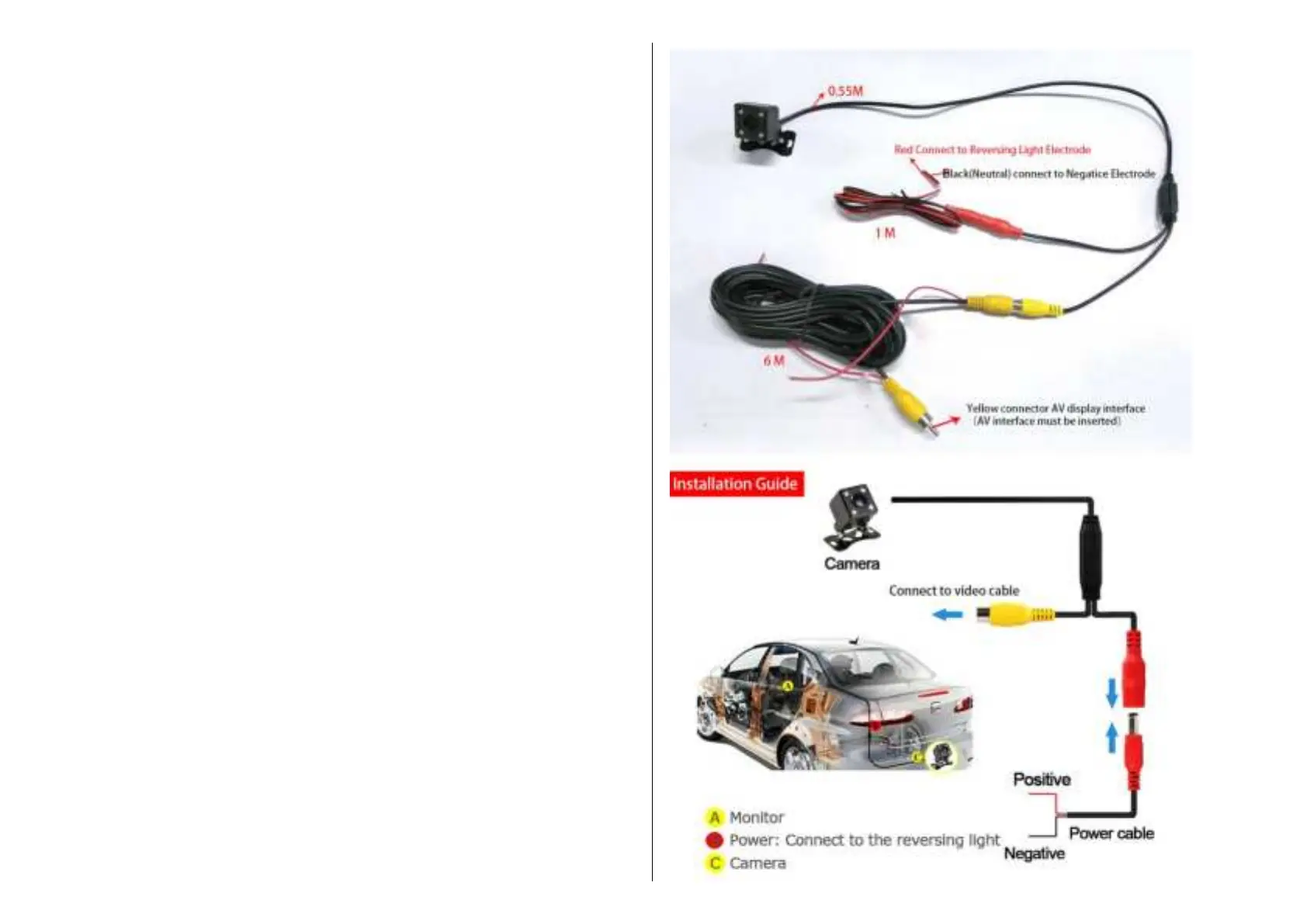

Camera Wiring:
1. Power cable: red and black
Red -- reverse light positive
Black -- reverse light negative
2. RCA cable: yellow port. insert into CAMIN port (yellow) on the radio
3. Make sure the pink cable on the radio power cable is connected to backing line.
Thus, the device will show rear view image automatically when you are parking, and
return to radio page when parking finishes.
