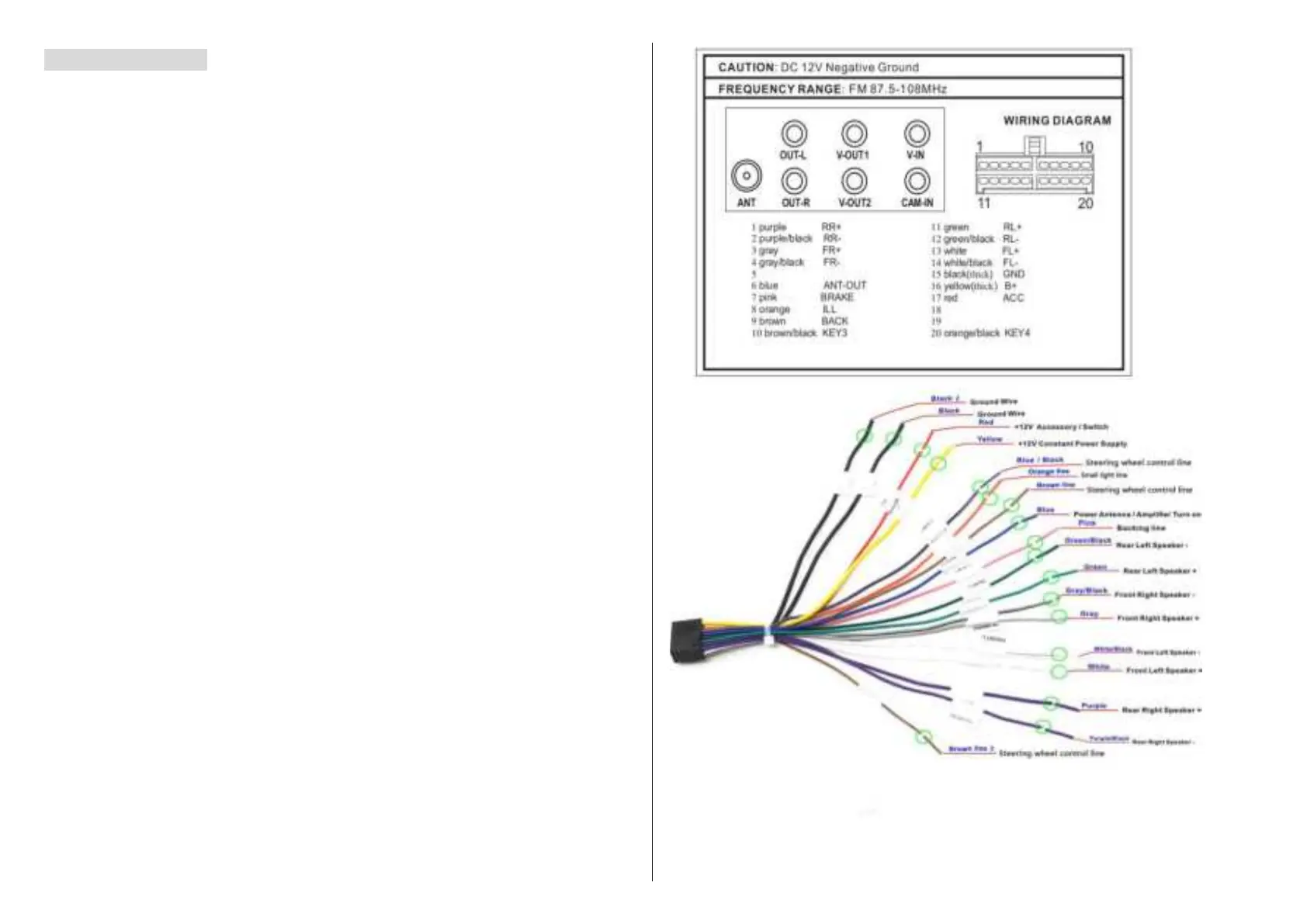

WIRING DIAGRAM
WARNING
Use the specified amperage fuse for each lead. Using a higher amperage fuse may cause
serious damage.
Power Cables Wiring:
Black 1 -- Ground
Black 2 -- Ground
Red -- 12V positive Ignition Switch
（
ACC
）
Yellow -- 12V Battery positive
Blue+Black-- Steering wheel Control line
Orange -- Small Light Line
Brown 1-- Steering Wheel Control Line
Blue -- Power Antenna / Amplifier Turn on
Pink -- Backing Line
Brown 2 -- Steering Wheel Control Line
Speaker Cables Wiring:
There are four groups of speaker cables, green, grey, white and purple. Each color is one
group, and one group connects to one speaker's positive wire and negative wire.
