Thermal Image Scope User Manual
5
Chapter 2 Preparation
2.1 Cable Connection
Connect the device and power adaptor with a type-C cable to power on the device. Alternatively,
connect the device and PC to export files.

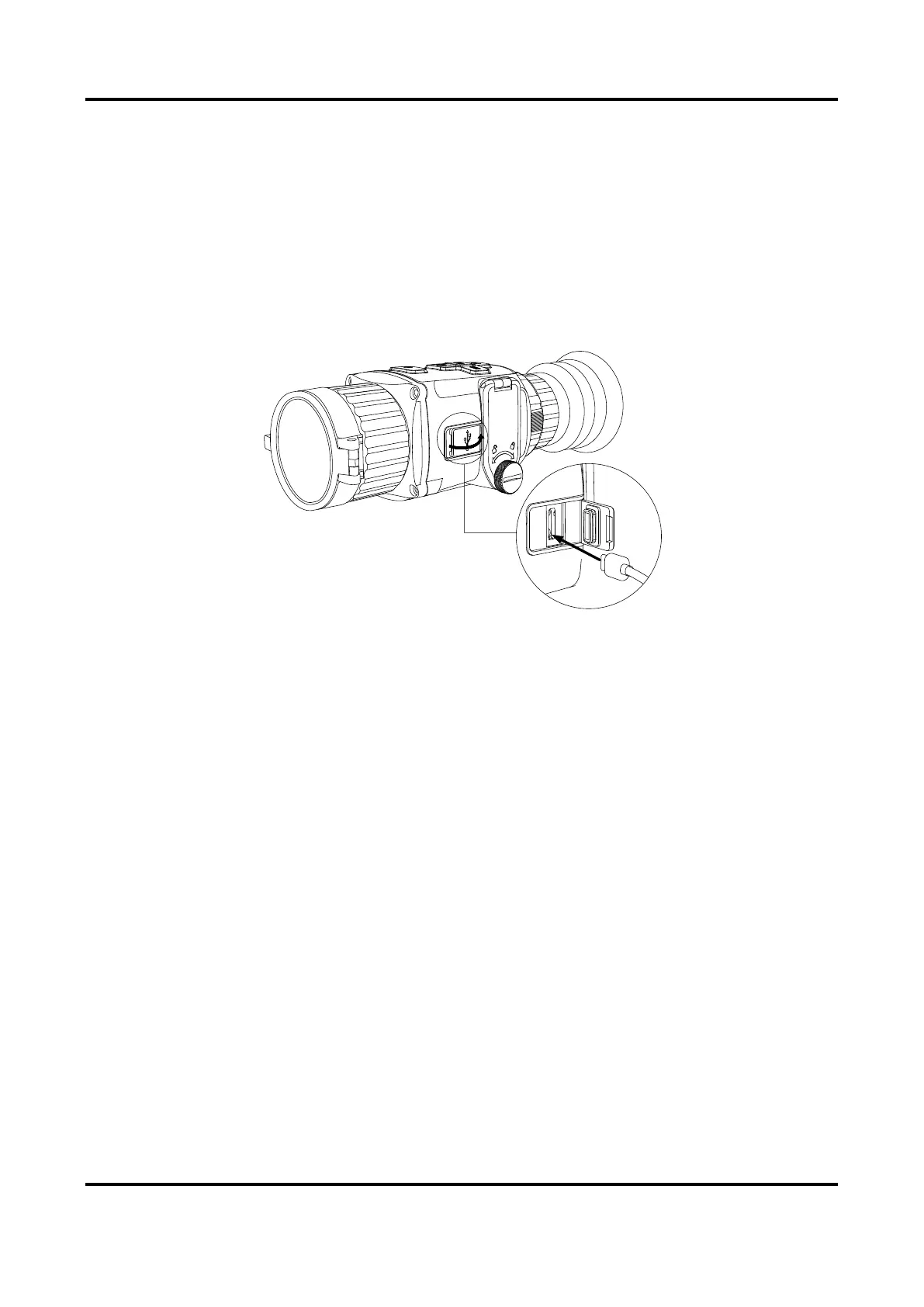

Figure 2-1 Cable Interface
2.2 Install Battery
Insert the batteries into the battery compartment.
Before You Start
● The device supports 3.0 V or 3.7 V rechargeable lithium battery or 3.0 V non-rechargeable dry
battery.
● Select the correct battery voltage in the device menu after you install the battery, or it may
cause abnormal shutdown.
Steps
1. Rotate the knob anticlockwise to loosen it.
To Next Page
