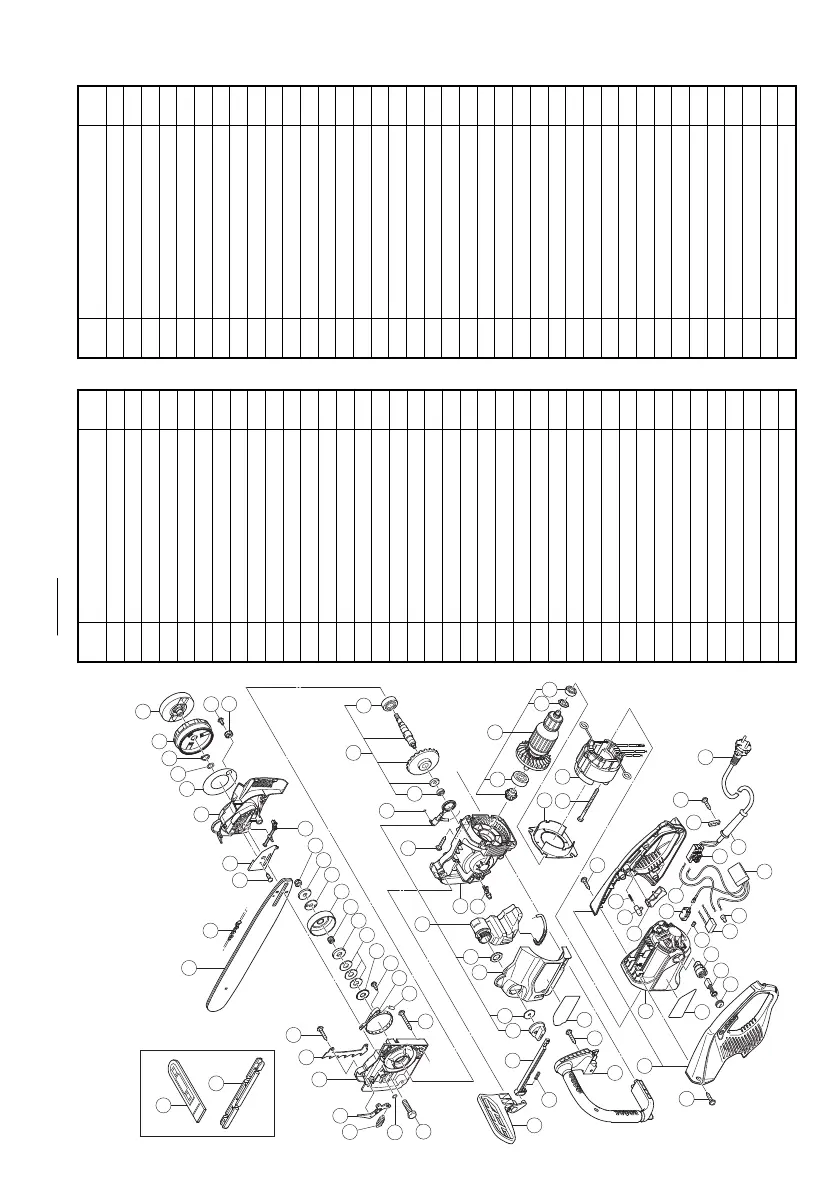

HIKOKI CS 30Y - Page 73

73
A
B
A
B
6
7
501
10
9
8
5
11
12
4
3
2
1
32
31
30
29
28
27
26
25
24
22
21
20
17
16
15
14
13
18
19
17
17
54
55
36
39
38
34
33
35
42
41
43
45
44
46
47
48
49
50
69
68
67
58
59
60
61
62
63
64
65
70
71
72
66
73
74
75
76
52
53
51
56
56
502
37
40
57
23
Item
No.
Part Name Q’TY
1
CHAIN BAR 14 INCH 3/8 SPROCKET PRC
1
2
SAW CHAIN (3/8X14") 91PX-52XJ
1
3 TAPPING SCREW D3 2 4GUIDE PLATE 1 5 SIDE COVER (R) 1 6DUST SHEET 1 7 O-RING (1AP-12) 1 8
RETAINING RING FOR D14 SHAFT
1
9TENSION DIAL 1
10 KNOB 1
11
MACHINE SCREW (W/WASHER) M4X8
1
12 TENSION GEAR 1 13 BRAKE SPRING 1
14 BRAKE LINK 1
15 INNER COVER 1
16 SPIKE BAR 1
17
TAPPING SCREW (W/FLANGE) D5X25
8
18 O-RING (S-6) 1
19 BOLT M8X35 1
20 TAPPING SCREW D5X55 2
21 NEEDLE ROLLER D3 1
22 BRAKE BAND 1
23
MACHINE SCREW (W/WASHERS) M4X12
1
24 WASHER (E) 1
25 SPRING WASHER 3
26 COLLAR (B) 1
27 NEEDLE BEARING (D) 1
28 CLUTCH HOUSING 1
29 WASHER (C) 1
30 WASHER (D) 1
31 NYLON NUT M8 1
32 CHAIN PULLER 1
33 BRAKE HANDLE 1
34 SPRING (C) 1
35 SLIDE ROD 1
36 TANK CAP 1
37 TANK CAP PACKING 1
38 SIDE COVER (L) 1
39 GASKET 1
Item
No.
Part Name Q’TY
40
OIL PUMP ASS’Y (INCLUD.36, 37, 39)
1
41 GEAR CASE 1
42 ADJUST BOLT 1
43 O-RING (S-4) 1
44
SPINDLE GEAR ASS’Y (INCLUD.45,46)
1
45 BALL BEARING 606VVC2 1
46
BALL BEARING 6202VVCMPS2L
1
47
ARMATURE AND PINION SET (INCLUD.48-50)
1
48
BALL BEARING 6301VVCMPS2L
1
49 WASHER (A) 1 50
BALL BEARING 6000VVCMPS2L
1
51 FAN GUIDE 1
52
HEX. HD. TAPPING SCREW D5X50
2
53 STATOR ASS’Y 1
54 FRONT HANDLE 1
55 CAUTION LABEL 1
56
TAPPING SCREW (W/FLANGE) D4X16
7
57 HANDLE SET 1
58
HOUSING ASS’Y (INCLUD.62,63)
1
59 NAME PLATE 1
60 BRUSH CAP 2
61 CARBON BRUSH 2
62 BRUSH HOLDER 1
63
HEX. SOCKET SET SCREW M5X8
1
64 NOISE SUPPRESSOR 1
65 CONNECTOR 50092 1
66 CONTROLLER 1
67 TRIGGER 1
68 OFF LOCK BUTTON 1
69 SPRING (A) 1
70 MICRO SWITCH 1
71 INTERNAL WIRE 1
72 SWITCH 1 73 CORD ARMOR 1
74 CORD CLIP 1
75
TAPPING SCREW (W/FLANGE) D4X16
2
76 CORD 1
501 CHAIN COVER 1
502 PLUG CLIP 1
CS35Y
