HIKVISION DS-2CD864-EI3 Installation Manual

Installation Manual of Network Camera
113

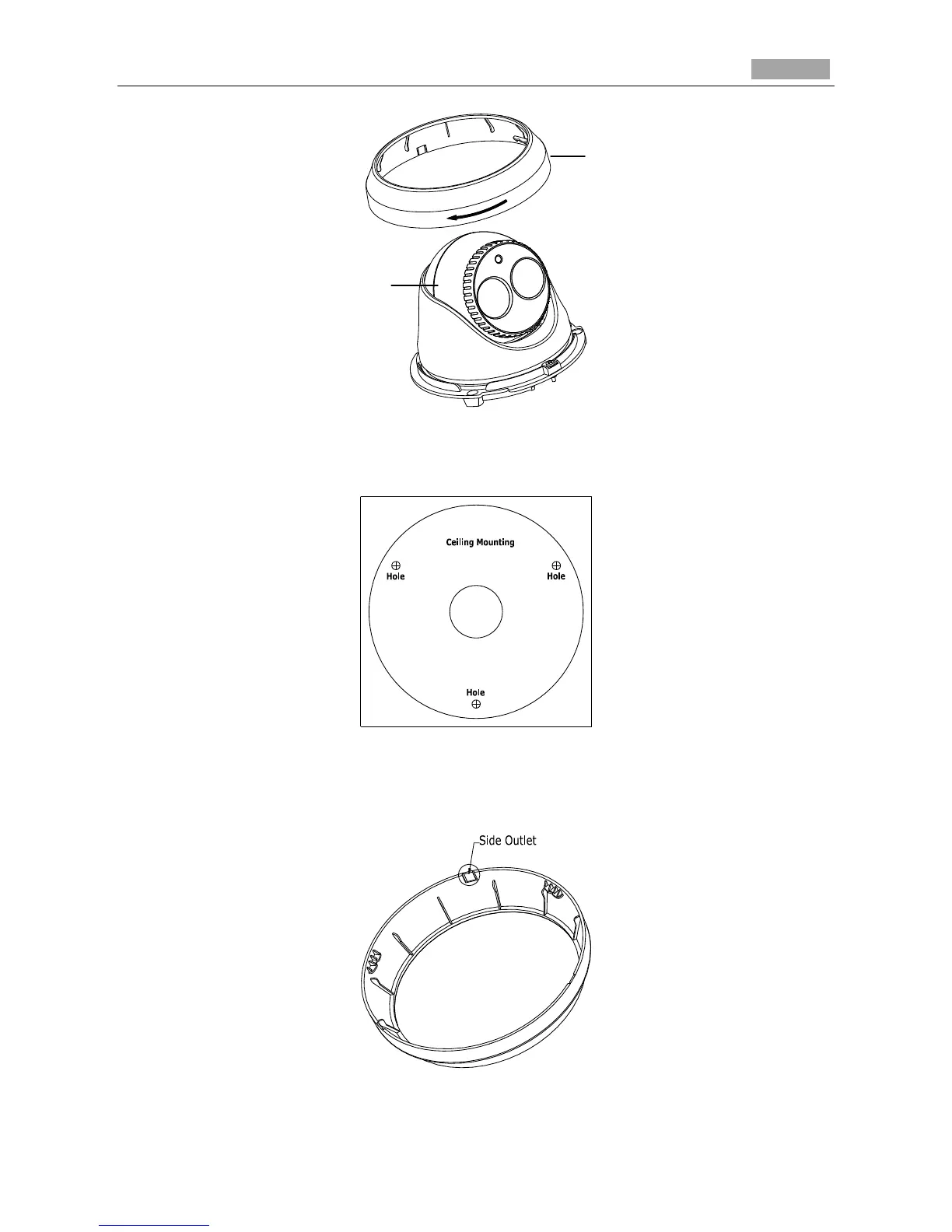

Figure 5-2 Dissemble the Camera
2. Drill the screw holes and the cable hole on the ceiling according to the drill template.
Figure 5-3 The Drill Template
There are two cable outlet methods. One is to route the cables through the cable hole, and the other is
to route the cables through the side outlet shown below.
Figure 5-4 Side Outlet
Trim Ring
Dome Drive
