Installation Manual of Network Camera
128
3. Use 3 screws to fix the bracket to the ceiling and the screw hole on the bracket should align with
the mounting hole on the drill template.

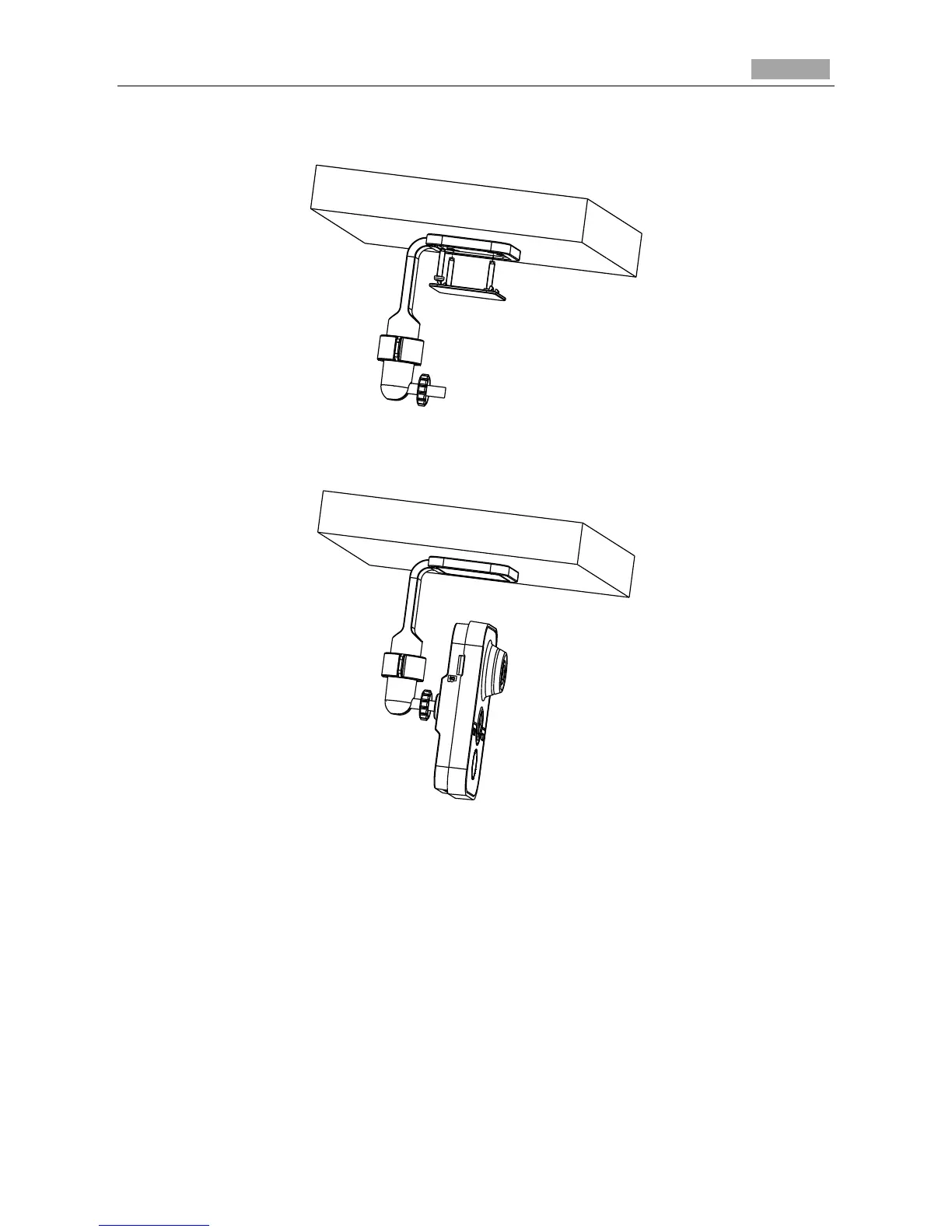

Figure 6-14 Fix the Bracket
4. Install the mounting base cover and attach the camera on the bracket.
Figure 6-15 Install the Cover and Camera
5. Adjust surveillance angel
1). Loosen the knob to adjust the panning position and tilting position.
2). After adjusting the angle of the camera to the desired position, fasten the knob.
