Drill the screw holes and the cable hole (optional) on
the ceiling according to the drill template.

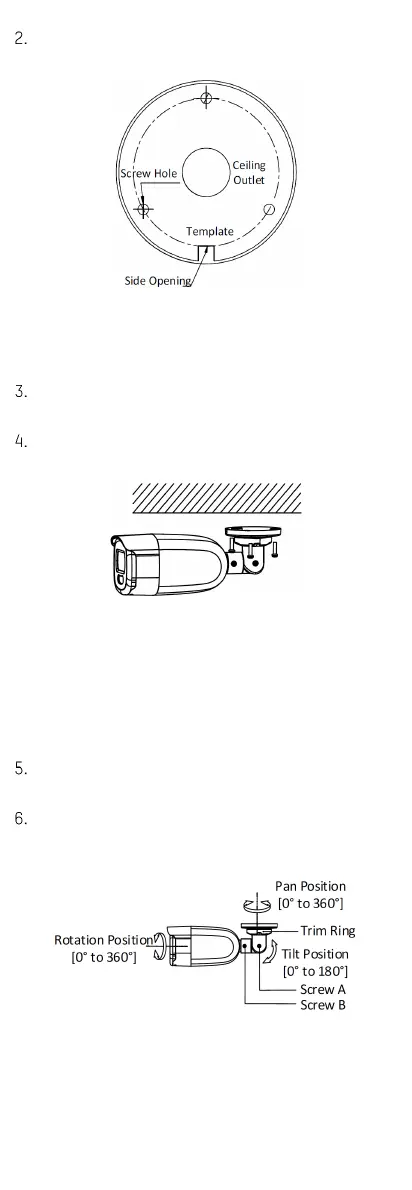

Figure 11, Drill Template
NOTE: Drill a cable hole when using the ceiling outlet
to route the cable.
Route the cables through the cable hole or the side
opening.
Attach the bracket to the ceiling, and secure the
camera with supplied screws.
Figure 12, Secure the Camera to the Ceiling
NOTE: The supplied screw package contains self-
tapping screws and expansion bolts.
For a concrete wall/ceiling, expansion bolts are
required to fix the camera. For a wooden
wall/ceiling, self-tapping screws are required.
Connect the corresponding power cord and video
cable.
Power on the camera to check whether the image on
the monitor is at an optimum angle. If not, adjust the
camera according to the figure below.
Figure 13, 3-Axis Adjustment
1) Loosen trim ring to adjust pan position [0° to 360°].
2) Loosen screw A to adjust tilt position [0° to 180°].
3) Loosen screw B to adjust rotation position [0° to
360°].
