UM ColorVu DS-2CExxHFT-Fxx 122919NA 13

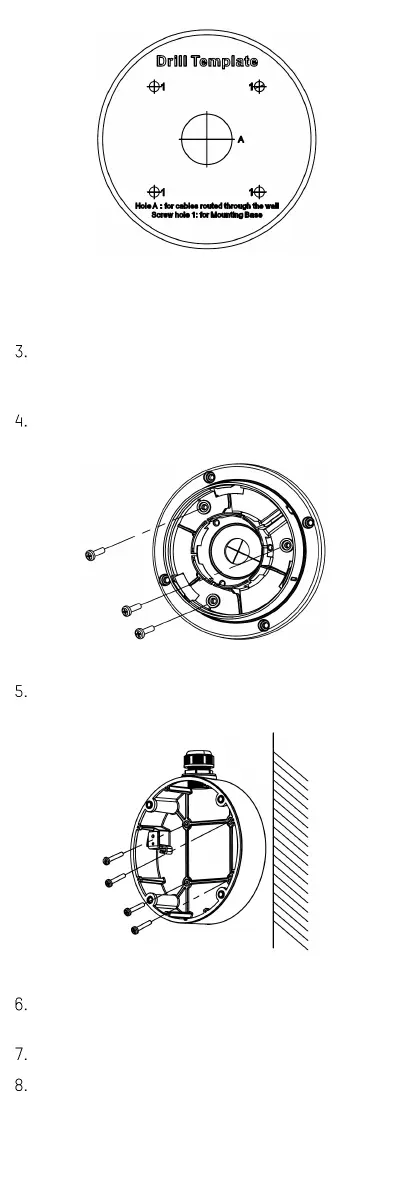

Figure 20, Drill Template
NOTE: Drill a cable hole when using a ceiling outlet to
route the cable.
Take apart the junction box, and align the mounting
base screw holes with those on the junction box
cover.
Install the mounting base to the junction box cover
with three PM4 screws.
Figure 21, Secure Junction Box Cover Screws
Secure the junction box’s body on the wall with four
PA4 × 25 screws.
Figure 22, Secure Junction Box Body
Route the cables through the junction box’s bottom
or side cable hole.
Attach the junction box cover to its body.
Repeat steps 7 to 9 of
2.3.1 Ceiling/Wall Mounting
without Junction Box
to finish the installation.
