3. Take apart the junction box, and align the screw
holes of the bullet camera with those on the
Junction box’s cover.
4. Install the camera on the junction box’s cover with
supplied screws.

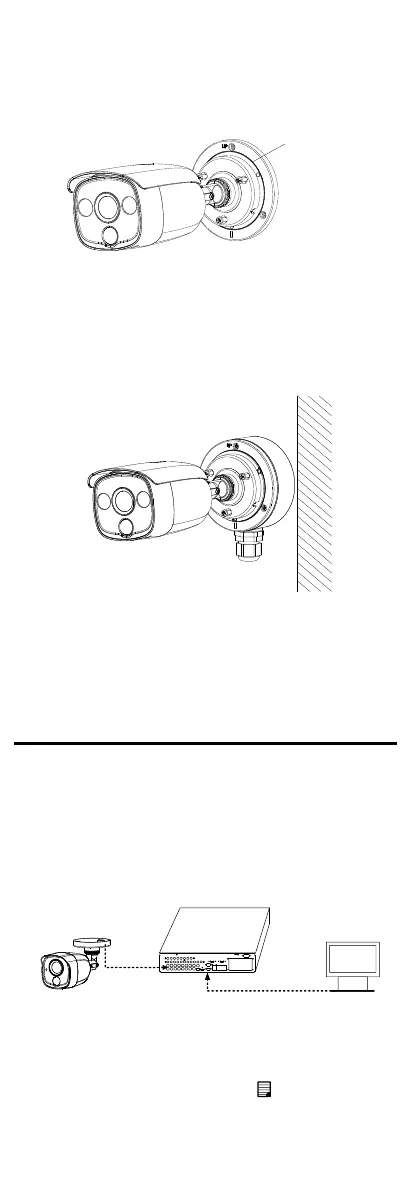

Figure 2-12 Install the camera on the Junction Box
5. Secure the junction box’s body on the ceiling/wall.
with supplied screws.
6. Route the cables through the bottom cable hole, or
the side cable hole of the junction box.
7. Combine the junction box cover with its body with
supplied screws on the junction box’s cover.
Figure 2-13 Combine the Junction Box’s Cover with its
Body
8. Repeat the step 5 and 6 of 2.2.1 Ceiling/Wall
Mounting without Junction Box to complete the
installation.
3 Menu Description
Please follow steps below to call the menu.
NOTE:
Menu description part is only for your reference. It
might have some differences due to the specific model
that you have.
Steps:
1. Connect the camera with the TVI DVR, and the
monitor, shown as the figure 3-1.
Figure 3-1 Connection
2. Power on the analog camera, TVI DVR, and the
monitor to view the image on the monitor.
3. Click PTZ Control to enter the PTZ Control interface.
4. Call the camera menu by clicking button, or call
the preset No. 95.
To Next Page
