HIKVISION DS-2TD4166-25/V2

Thermal Network Speed Dome Quick Start Guide
8
No.
Components
7
Network Cable from Router/Switch
Steps:
1. Feed the plugless network cable ⑦ through the lock nut ⑥, waterproof rubber
gasket ⑤ (rubber gasket inset ridge must face waterproof endcap), and the
water-proof endcap ④ in order.
2. Crimp an RJ-45 network plug ③onto the end of the cable, taking care to insert the
twisted pairs of wires in correct order.
3. Place the O-type gasket ② onto the end of the camera’s network interface socket
①.
4. Insert the network plug ③ into the camera’s network interface socket①.
5. Insert the water-proof rubber gasket ⑤ into the waterproof endcap ④, and secure
lock nut ⑥ with the water-proof endcap ④.
6. Align the snap on the water-proof endcap ④ with the notch on the camera’s
network interface socket ①, and then secure the water-proof endcap ④ to the
camera’s network interface socket ① to finish installation.
Camera
Switch/Router
Align the snap and notch.
i. Insert ⑤ into ④.
ii. Secure ⑥ with ④.

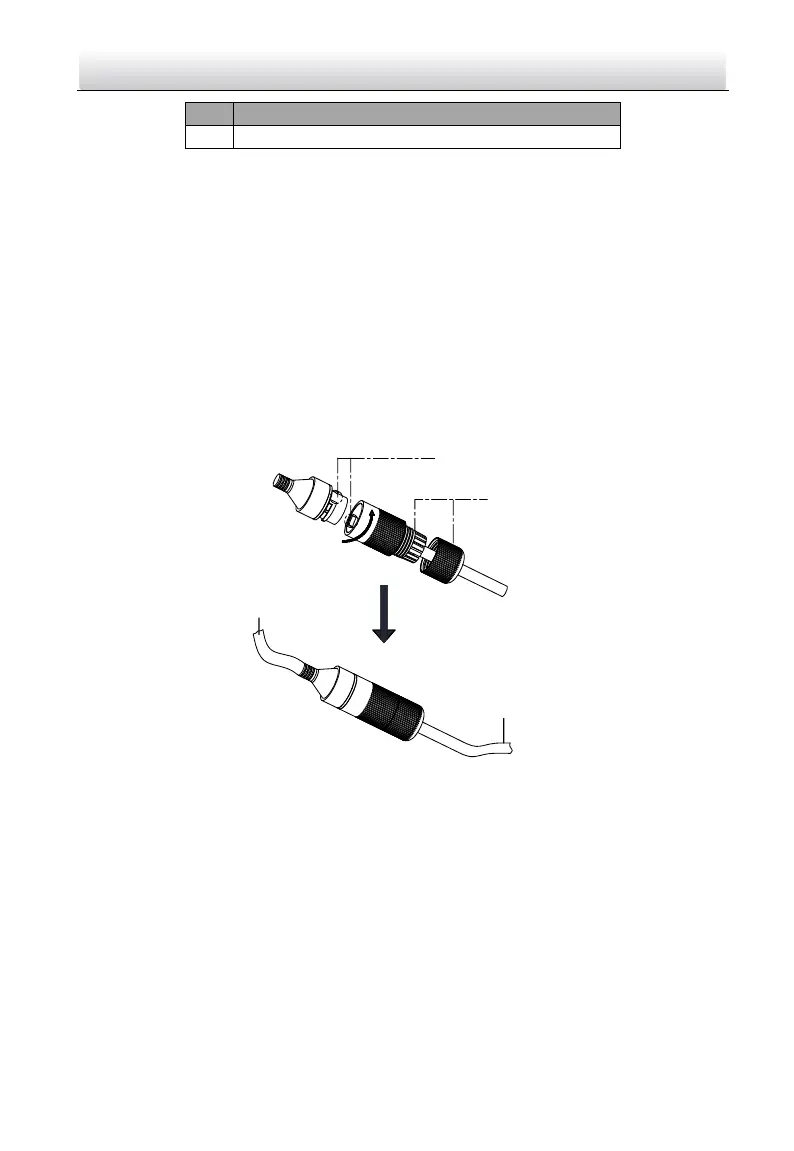

Figure 3-3 Water-proof Accessory Installation
