Cables

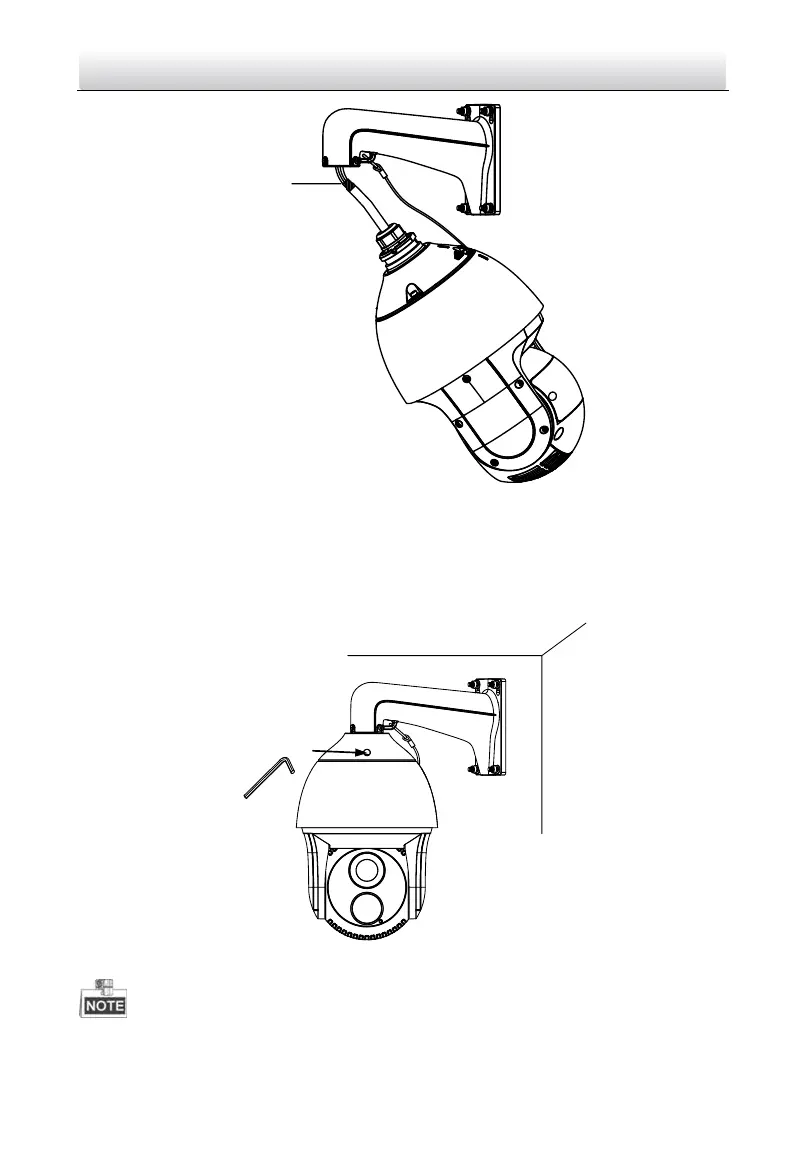

Figure 3-14 Route the Cables
5. Connect the corresponding cables.
6. Align the back box of the speed dome with the head cover. Use an L-wrench to
tighten the lock screws to secure the speed dome and the bracket.
Lock Screw
Figure 3-15 Secure the Speed dome
 The bracket in Figure 3-6 is the recommended bracket for this series of speed
