Network Bullet Camera·Quick Start Guide
16
Cable Description
Power Supply
Network
Alarm In/Out

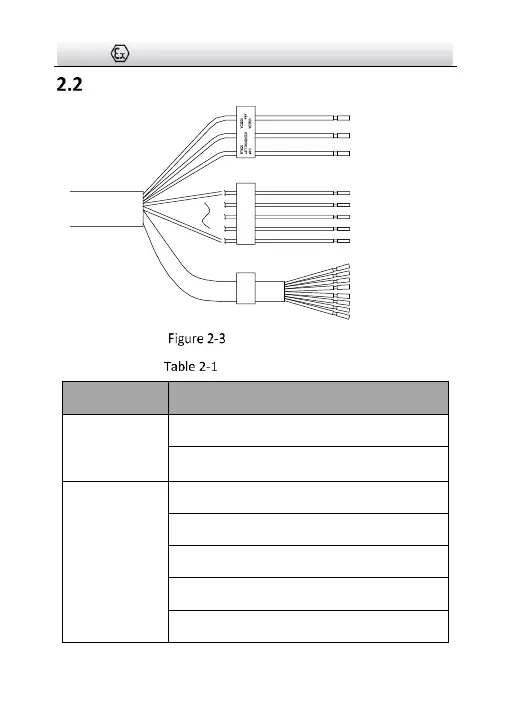

Overview of Cables
Description of Cables
Cables
Description
Power Supply
Voltage: 100 VAC to 240 VAC
YELLOW/GREEN: for grounding
Alarm In/Out
YELLOW/BLUE: ALARM_IN1
WHITE/RED: ALARM_OUT1
YELLOW/ORANGE: ALARM_IN2
WHITE/PURPLE: ALARM_OUT2
YELLOW/BLACK: ALARM_GND
