Quick Operation Guide of DS-6700 Series Audio/Video Encoder
7

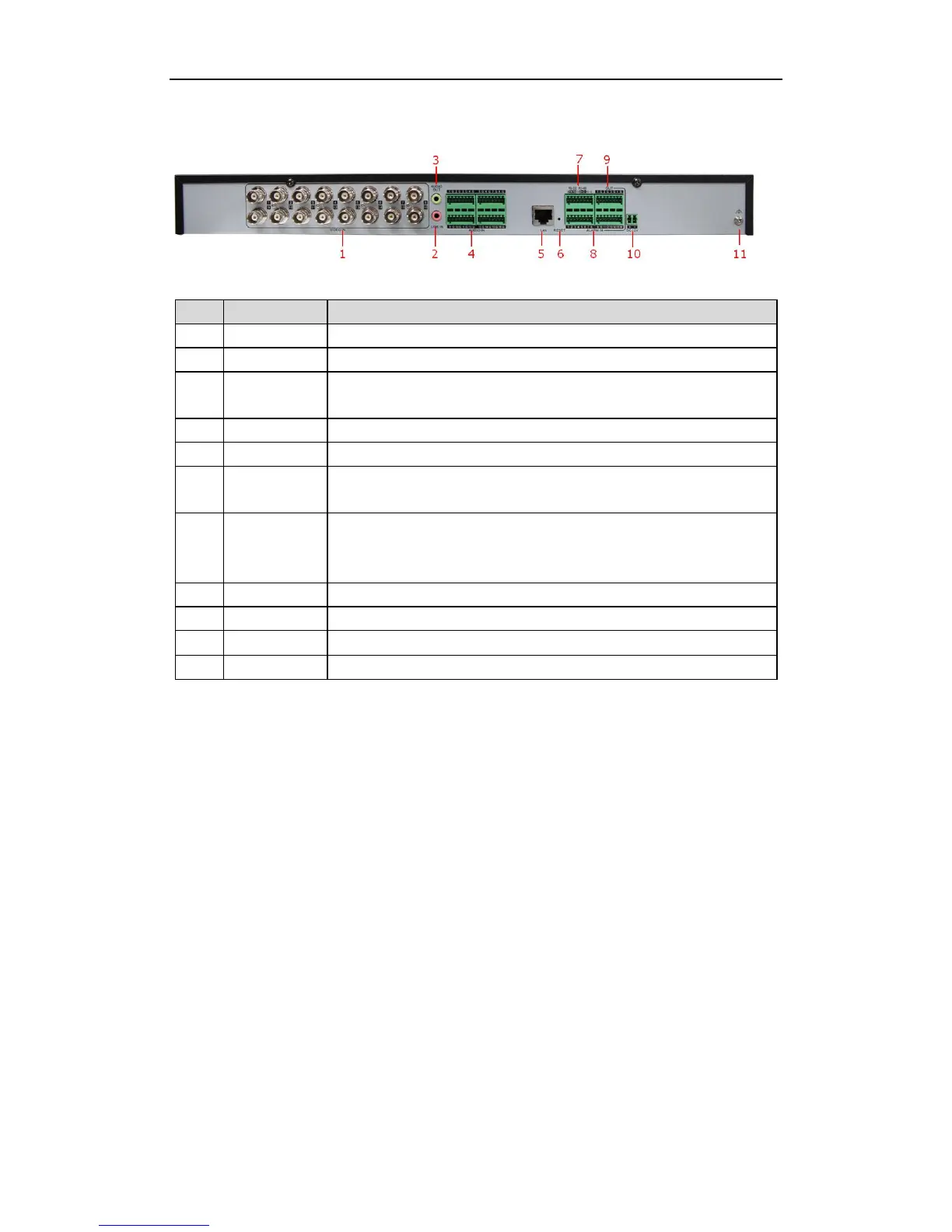

DS-6716HWI/HFI (-SATA):
Description of rear panel:
Item
Description
1
VIDEO IN
BNC connectors for video input.
2
LINE IN
3.5mm two-way audio interface; connect to active pick-up, microphone, etc.
3
AUDIO OUT
3.5mm audio output interface; connect to audio output device, e.g., loudspeaker,
etc.
4
AUDIO IN
Line input interface for audio input.
5
LAN
10M/100/1000Mbps adaptive Ethernet interface.
6
RESET
Restore the factory default settings by holding the RESET button for more than 15
seconds after power is turned on.
7
RS-232, RS-485
RS-232 serial interface for configuration of device’s parameters or used as
transparent channel; RS-485 serial interface for connection to pan/tilt unit, speed
dome, etc.
8
ALARM IN
Relay alarm input.
9
ALARM OUT
Relay alarm output.
10
DC12V
12V DC power supply.
11
GND
Grounding
