HIKVISION DS-7204HGHI-SH User Manual

User Manual of Digital Video Recorder
144
1) Click Apply button to save the settings.
2) You can click Refresh button to get the latest status of the port mapping.

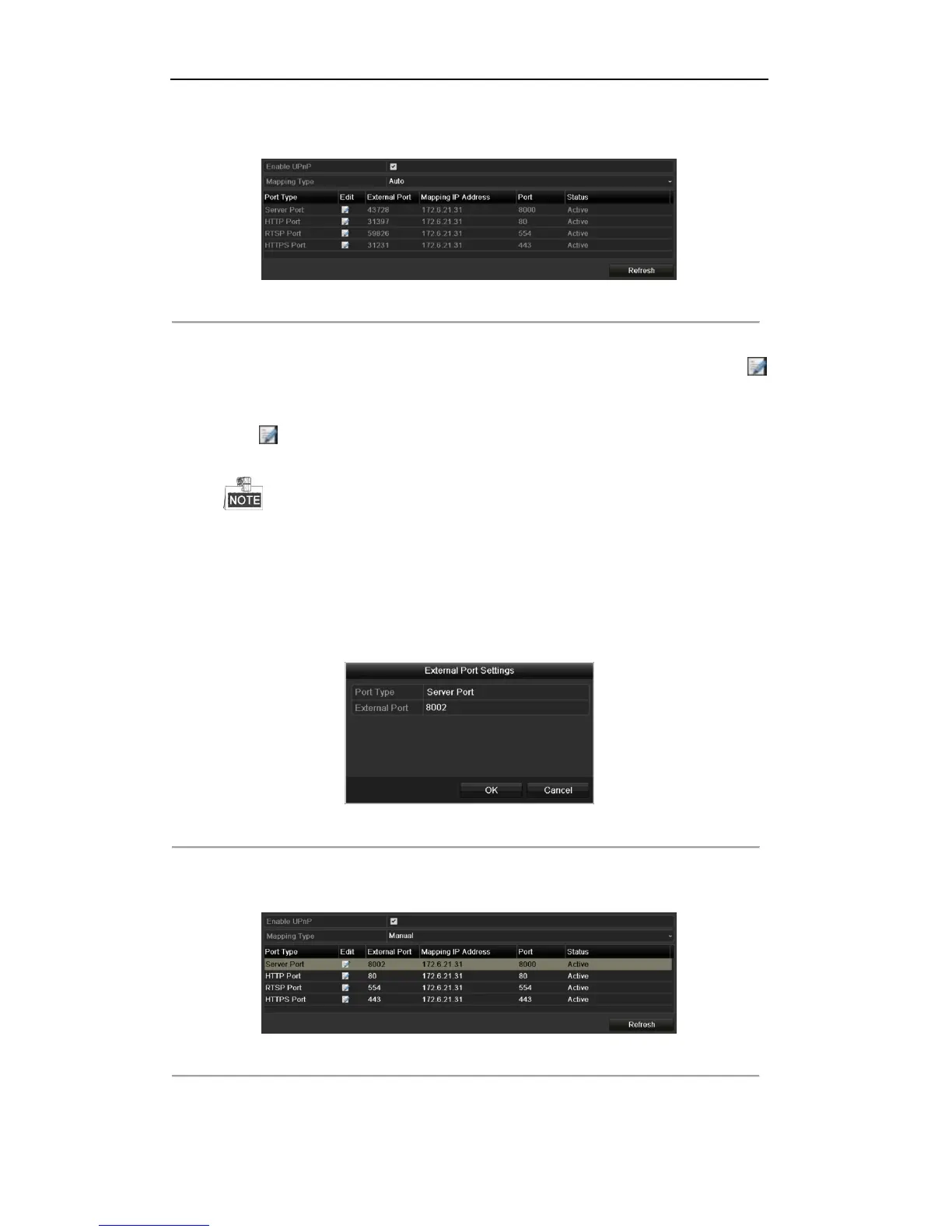

Figure 9. 17 UPnP™ Settings Finished-Auto
OPTION 2: Manual
If you select Manual as the mapping type, you can edit the external port on your demand by clicking
to activate the External Port Settings dialog box.
Steps:
1) Click to activate the External Port Settings dialog box. Configure the external port No. for server
port, http port and RTSP port respectively.
 You can use the default port No., or change it according to actual requirements.
 External Port indicates the port No. for port mapping in the router.
 The value of the RTSP port No. should be 554 or between 1024 and 65535, while the value of
the other ports should be between 1 and 65535 and the value must be different from each other.
If multiple devices are configured for the UPnP™ settings under the same router, the value of
the port No. for each device should be unique.
Figure 9. 18 External Port Settings Dialog Box
2) Click Apply button to save the settings.
3) You can click Refresh button to get the latest status of the port mapping.
Figure 9. 19 UPnP™ Settings Finished-Manual

HIKVISION DS-7204HGHI-SH Specifications

General

Product color	Black
Channels quantity	4 channels
Total storage capacity	1000 GB
Video compression formats	H.264
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Audio input	1
BNC input ports	4
USB 2.0 ports quantity	2
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Power requirements	12V DC
Power consumption (typical)	15 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Dimensions (WxDxH)	315 x 242 x 45 mm
