HIKVISION DS-7204HUHI-K1 Manual

© 2020 Hikvision USA Inc. • All Rights Reserved • Specifications subject to change without notice.
Hikvision USA Inc., 18639 Railroad Street, City of Industry, CA 91748, USA • Hikvision Canada, 4848 rue Levy, St-Laurent, Quebec, Canada, H4R 2P1
Tel: +1-909-895-0400 • Toll Free in USA: +1-866-200-6690 • E-Mail: sales.usa@hikvision.com • www.hikvision.com 080620NA 

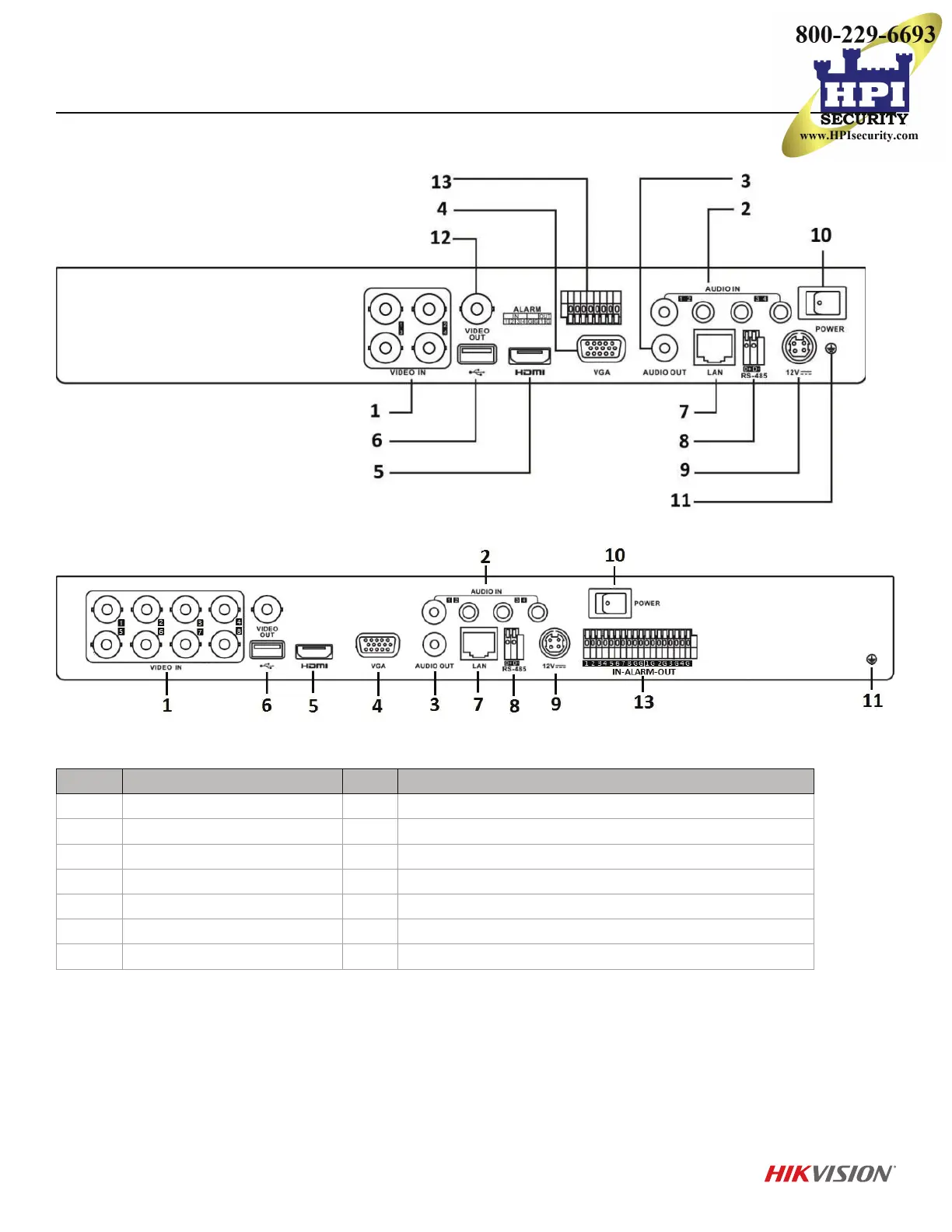

Rear Panels
• DS-7204HUHI-K1
• DS-72xxHUHI-K2
NOTE: DS-7208HUHI-K2 shown. DS-7216HUHI-K2 has 16 video inputs.
No. Description No. Description
1 VIDEO IN 8 RS-485 Serial Interface
2 AUDIO IN, RCA Connector 9 12 VDC Power Input
3 AUDIO OUT, RCA Connector 10 Power Switch
4 VGA Interface 11 GND
5 HDMI Interface 12 VIDEO OUT
6 USB Interface 13 Alarm In/Out
7 LAN Network Interface

HIKVISION DS-7204HUHI-K1 Specifications

General

Video Input	4 channels
Video Output	1 HDMI, 1 VGA
Video Bitrate	32 Kbps to 6 Mbps
Audio Bitrate	64 Kbps
Dual Stream	Yes
Stream Type	Video, Video & Audio
Synchronous Playback	4-ch
SATA	1 SATA interface
HDD Capacity	Up to 10 TB capacity for each disk
Network Interface	1, RJ45 10M/100M self-adaptive Ethernet interface
Power Supply	12 VDC
Operating Humidity	10% to 90%
Max Resolution	1080p
Video Compression	H.264+
Audio Output	1-ch RCA (Linear, 1 KΩ)
Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1 KΩ)
HDMI Output	1
VGA Output	1
Recording Resolution	1080p
Playback Resolution	1080p
Network Protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, UPnP™, HTTPS
USB Interface	2 USB 2.0
Operating Temperature	-10 °C to +55 °C
