HIKVISION DS-7204HUHI-K1 Manual




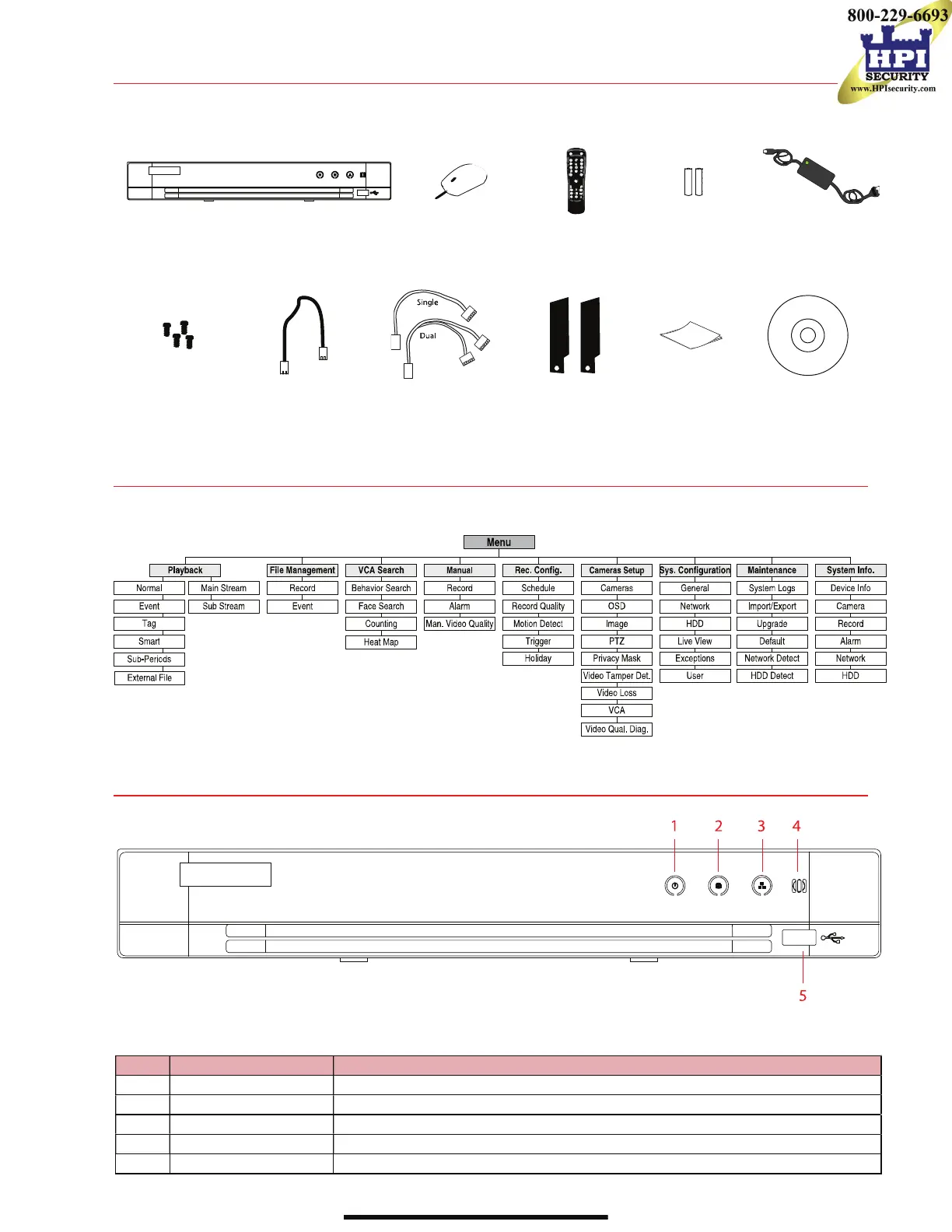

WHAT’S IN THE BOX
Make sure the following items are in your box:
DVR

Mouse
Remote

AAA Cells
(x 2)
Power
Supply

HDD Screws
(-K1 = x 4)
(-K2 = x 8)
SATA Cable
(-K1 = x 1)
(-K2 = x 2)
HDD Power Cable
(-K1 = x 1 single)
(-K2 = x 1 dual)
Rack Ears
(8-, 16-ch = x 2)
QSG
DVD

MENU TREE
Use this menu tree to navigate the embedded menus.

FRONT PANEL
Figure 1, DS-72xxHUI-Kx(/P), DS-72xxHQI-Kx(/P) Front Panel
No.
Item
Description
1
Power
On
when power switch on rear panel is turned on
2
HDD
Flickers when reading from/writing to the HDD
3
Tx/Rx
Blinks when network connection is functioning properly
4
Remote Sensor
Receives signals from the remote control
5
USB Port
Connec
ts
to USB devices

HIKVISION DS-7204HUHI-K1 Specifications

General

Video Input	4 channels
Video Output	1 HDMI, 1 VGA
Video Bitrate	32 Kbps to 6 Mbps
Audio Bitrate	64 Kbps
Dual Stream	Yes
Stream Type	Video, Video & Audio
Synchronous Playback	4-ch
SATA	1 SATA interface
HDD Capacity	Up to 10 TB capacity for each disk
Network Interface	1, RJ45 10M/100M self-adaptive Ethernet interface
Power Supply	12 VDC
Operating Humidity	10% to 90%
Max Resolution	1080p
Video Compression	H.264+
Audio Output	1-ch RCA (Linear, 1 KΩ)
Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1 KΩ)
HDMI Output	1
VGA Output	1
Recording Resolution	1080p
Playback Resolution	1080p
Network Protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, UPnP™, HTTPS
USB Interface	2 USB 2.0
Operating Temperature	-10 °C to +55 °C
