2.3.8 Configuring Signal Input Channel
This chapter is applicable only to DS-73xx/90xxHUI-K Series DVRs.
Purpose
You can configure the analog and IP signal input types and enable 5 MP long
distance transmission.
1. Go to Menu > Camera > Signal Input Status.

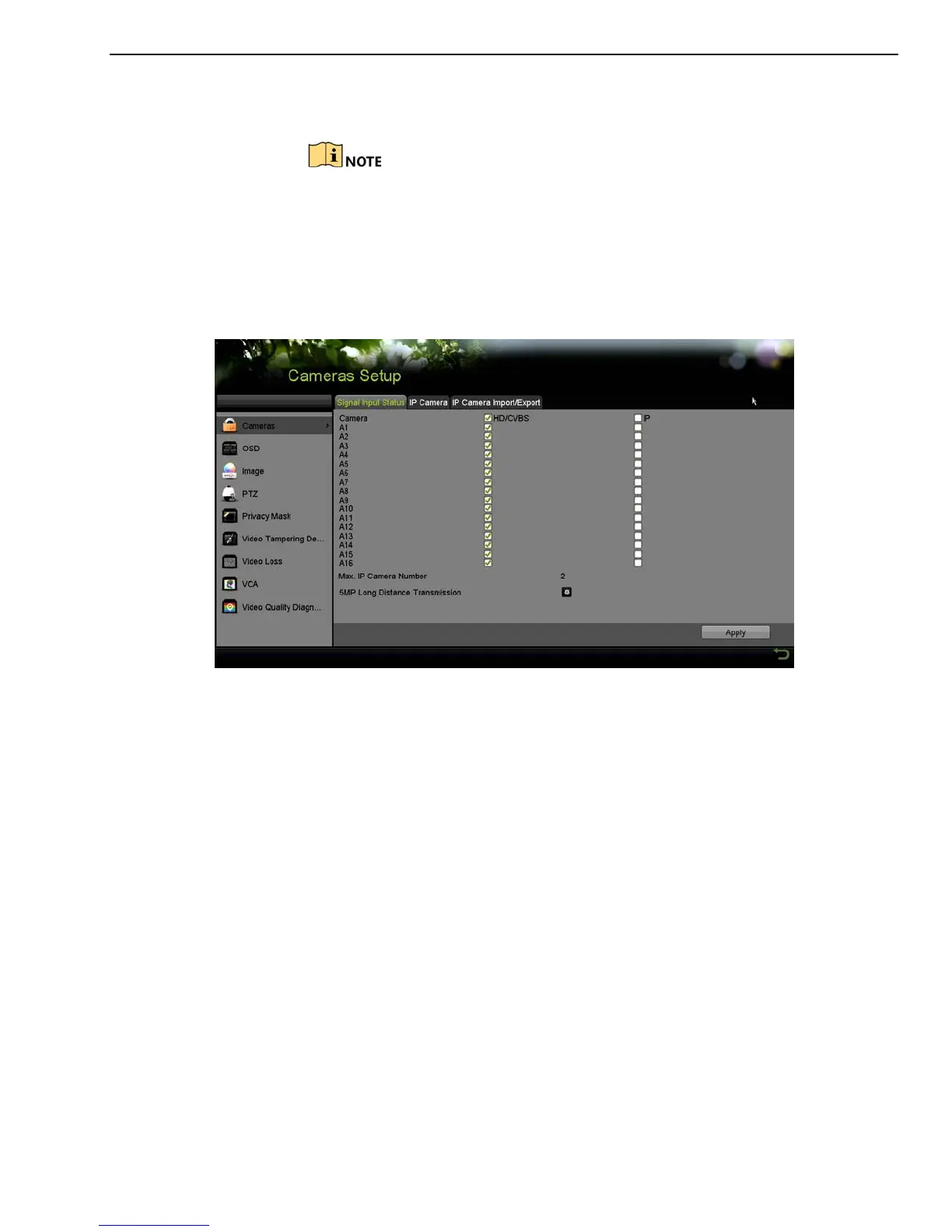

Figure 41, Signal Input Status
2. Check this checkbox to select different signal input types: HD/CVBS and IP.
If you select HD/CVBS, four types of analog signal inputs including
TurboHD and CVBS can be connected randomly for the selected channel.
If you select IP, an IP camera can be connected to the selected channel.
3. Click Apply to save the settings.
You can view the maximum number IP cameras in the Max. IP Camera
Number text field. Disabling one analog channel will add one IP channel.
For DS-73xxHUI-K4 Series and DS-73xxHQI-K4 Series DVRs, the accessible
IP channels are X+2 (X refers to the disabled analog channel(s) of the DVR;
maximum is 10 IP cameras). For DS-9008HUI-K8, the accessible IP
channels are X+8 (X refers to the disabled analog channel(s) of the DVR;
maximum is 16 IP cameras). For DS-9016HUI-K8, the accessible IP
channels are X+16 (X refers to the disabled analog channel(s) of the DVR;
maximum is 36 IP cameras).
