User Manual of Digital V
ideo Recorder
81

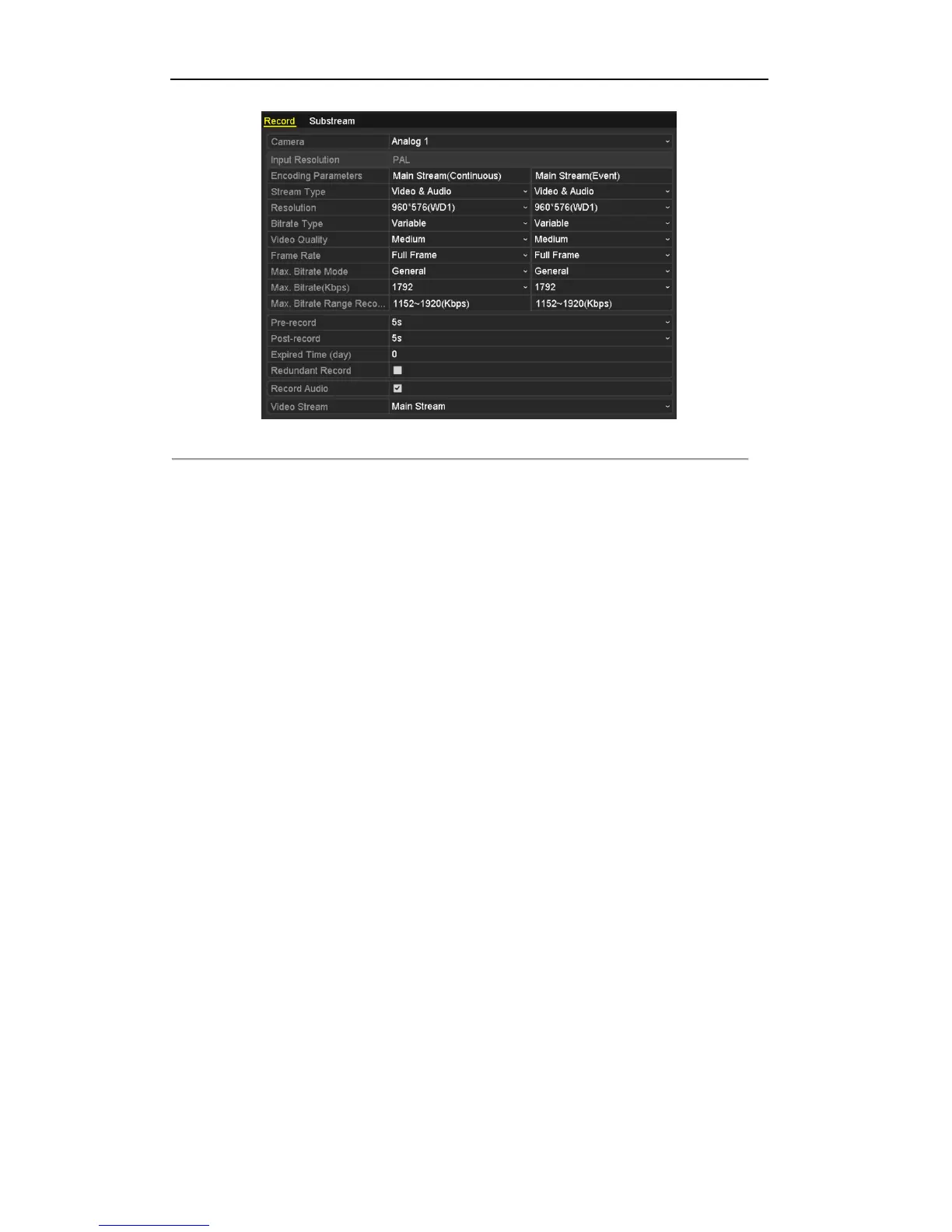

Figure 5. 27
E
ncoding Parameters
2)
Selec
t Camera you want to configure.
3)
Chec
k
the checkbox of
Redundant
Record
.
4)
Click
Apply
to save settings.
If the encod
ing parameters can
also b
e used
to other channels,
click
Copy
and
choose the
channel you
want to
apply the settings.
80
82
Table of Contents
Default Chapter
1
Digital Video Recorder
1
User Manual
1
Preventive and Cautionary Tips
4
Trademarks and Registered Trademarks
5
Product Key Features
7
Table of Contents
10
Chapter 1 Introduction
14
Front Panels
15
IR Remote Control Operations
23
USB Mouse Operation
25
Input Method Description
26
Rear Panel
27
Chapter 2 Getting Started
30
Starting up and Shutting down the DVR
31
Using the Wizard for Basic Configuration
33
Adding and Connecting the IP Cameras
38
Adding the Online IP Cameras
38
Editing the Connected IP Cameras and Configuring Customized Protocols
41
Chapter 3 Live View
43
Introduction of Live View
44
Operations in Live View Mode
45
Front Panel Operation
45
Using the Mouse in Live View
46
Using an Auxiliary Monitor
47
Main/Aux Output Switching
47
Quick Setting Toolbar in Live View Mode
48
Channel-Zero Encoding
50
Adjusting Live View Settings
51
Manual Video Quality Diagnostics
53
User Logout
54
Chapter 4 PTZ Controls
55
Configuring PTZ Settings
56
Setting PTZ Presets, Patrols & Patterns
58
Customizing Presets
58
Calling Presets
58
Customizing Patrols
59
Calling Patrols
60
Customizing Patterns
61
Calling Patterns
61
Customizing Linear Scan Limit
62
Calling Linear Scan
63
One-Touch Park
63
PTZ Control Panel
65
Chapter 5 Recording Settings
66
Configuring Encoding Parameters
67
Configuring Record Schedule
70
Configuring Motion Detection Record
73
Configuring Alarm Triggered Record
75
Manual Record
77
Configuring Holiday Record
78
Configuring Redundant Recording
80
Configuring HDD Group for Recording
82
Files Protection
83
Chapter 6 Playback
85
Playing Back Record Files
86
Playing Back by Channel
86
Playing Back by Time
88
Playing Back by Event Search
90
Playing Back by Tag
92
Smart Playback
95
Playing Back by System Logs
96
Playing Back External File
98
Auxiliary Functions of Playback
99
Playing Back Frame by Frame
99
Smart Search
99
Digital Zoom
101
Reverse Playback of Multi-Channel
101
Chapter 7 Backup
103
Backing up Record Files
104
Backing up by Normal Video Search
104
Backing up by Event Search
108
Backing up Video Clips
110
Managing Backup Devices
114
Chapter 8 Alarm Settings
117
Setting Motion Detection
118
Setting Sensor Alarms
120
Detecting Video Loss
123
Detecting Video Tampering
125
Setting All-Day Video Quality Diagnostics
127
Handling Exceptions
129
Setting Alarm Response Actions
131
Triggering or Clearing Alarm Output Manually
133
Chapter 9 Network Settings
134
Configuring General Settings
135
Configuring Advanced Settings
137
Configuring Pppoe Settings
137
Configuring Extranet Access
137
Configuring Ddns
138
Configuring NTP Server
141
Configuring SNMP
142
Configuring NAT
143
Configuring the Remote Alarm Host
145
Configuring Multicast
145
Configuring RTSP
146
Configuring Server and HTTP Ports
146
Configuring HTTPS Port
147
Configuring Email
148
Telnet Settings
149
Checking Network Traffic
151
Configuring Network Detection
152
Testing Network Delay and Packet Loss
152
Exporting Network Packet
152
Checking Network Status
154
Checking Network Statistics
154
Chapter 10 HDD Management
156
Initializing Hdds
157
Managing Network HDD
159
Managing Esata
161
Managing HDD Group
162
Setting HDD Groups
162
Setting HDD Property
163
Configuring Quota Mode
165
Checking HDD Status
167
Checking S.M.A.R.T Information
168
Detecting Bad Sector
169
Configuring HDD Error Alarms
170
Chapter 11 Camera Settings
171
Configuring OSD Settings
172
Configuring Privacy Mask
173
Configuring Video Parameters
174
Chapter 12 DVR Management and Maintenance
175
Viewing System Information
176
Viewing Device Information
176
Viewing Camera Information
176
Viewing Record Information
177
Viewing Alarm Information
177
Viewing Network Information
178
Viewing HDD Information
178
Searching and Exporting Log Files
180
Importing/Exporting IP Camera Info
183
Importing/Exporting Configuration Files
184
Upgrading System
185
Upgrading by Local Backup Device
185
Upgrading by FTP
185
Restoring Default Settings
186
Chapter 13 Others
187
Configuring RS-232 Serial Port
188
Configuring General Settings
189
Configuring DST Settings
190
Configuring more Settings
191
Managing User Accounts
192
Adding a User
192
Deleting a User
194
Editing a User
194
Logging Out/Shutting Down/Rebooting Device
196
Appendix
197
Glossary
198
Troubleshooting
199
List of Compatible Hikvision IP Cameras
