HIKVISION DS-7316HQHI-F4/N Quick Start Guide

Digital Video Recorder Quick Start Guide
32
Purpose
For DS-7200HUHI-F/S series DVR, you can view the analog signal input channels and types and the
connectable maximum IP camera number, and configure 5MP long distance transmission.
Step 1 Enter the Signal Input Status interface.
Menu > Camera > Signal Input Status

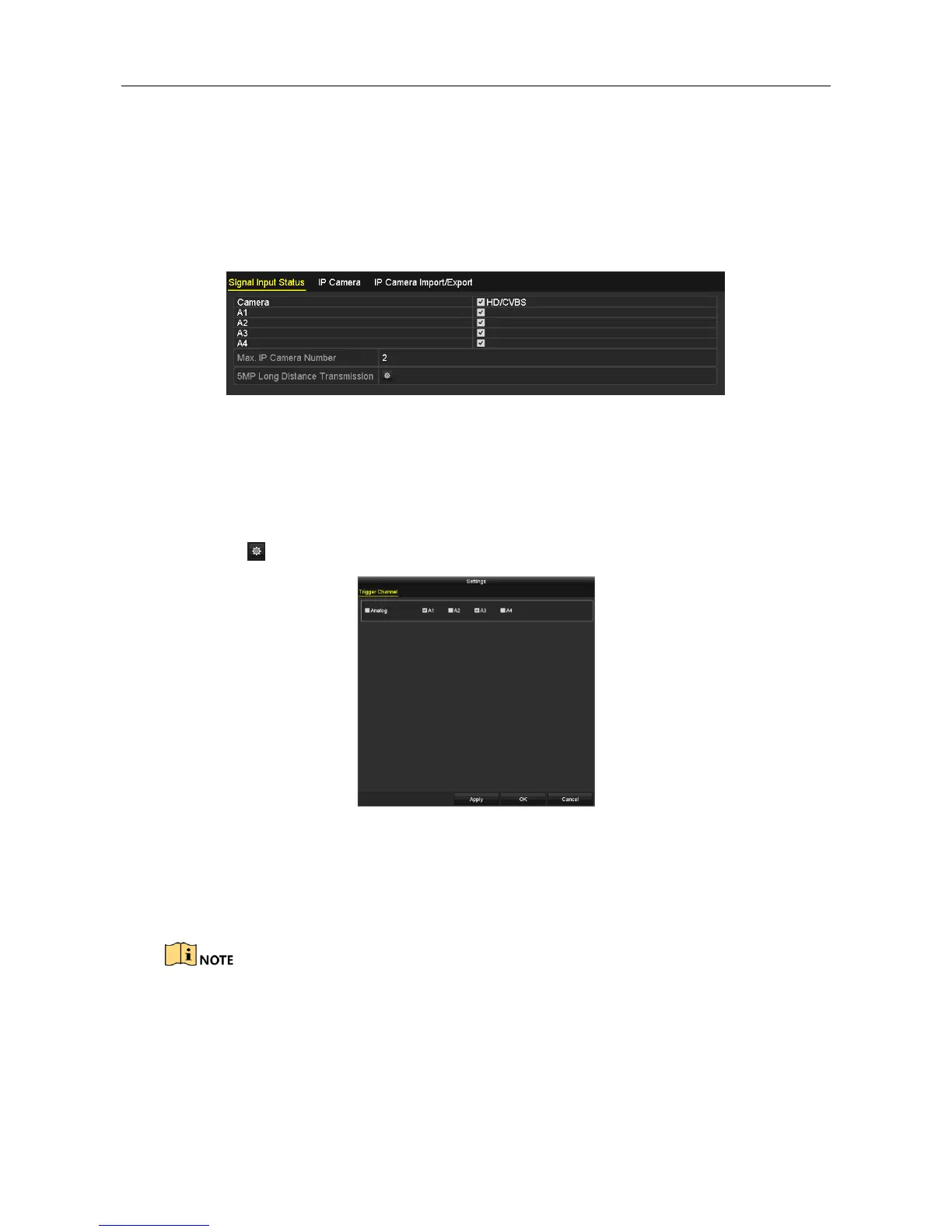

Figure 3-19 View Signal Input Type (2)
Step 2 View the analog signal input channels and types, and the connectable maximum IP camera
number.
Step 3 (Optional) You can enable 5 MP Long Distance Transmission for the Turbo HD and AHD
signal input. Follow the steps below to enable the function.
1) Click to enter the 5 MP Long Distance Transmission Settings interface.
Figure 3-20 5 MP Long Distance Transmission Settings
2) Check the checkbox(es) to enable 5 MP Long Distance Transmission of the selected
channel(s).
3) Click Apply to save the settings and OK to return to the Signal Input Status interface.

For -E series DVR, each two video channels are grouped in sequence, e.g., CH01 and CH02,
CH03 and CH04...; and each two channels in the same group must be connected with the
same type of video source (Turbo HD or CVBS).

HIKVISION DS-7316HQHI-F4/N Specifications

General

Product color	Black
Audio output channels	1.0 channels
Video compression formats	H.264
BNC input ports	1
Video input channels	16 channels
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Power consumption (typical)	45 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Dimensions (WxDxH)	445 x 390 x 70 mm
