HIKVISION DS-7316HQHI-F4/N Quick Start Guide

Digital Video Recorder Quick Start Guide
38

The POS overlay function is only supported by DS-7300/8100HQHI-F/N and
DS-7300/8100/9000HUHI-F/N series DVR. When the POS is enabled in playback, the POS
information will be overlaid on the video.

For DS-7200HUHI-F/S series DVR, you can click to show the VCA information in the
smart playback. Then the configured line or quadrilateral in VCA configuration and target
frame(s) will be shown on the playback interface. Click to hide the VCA information.

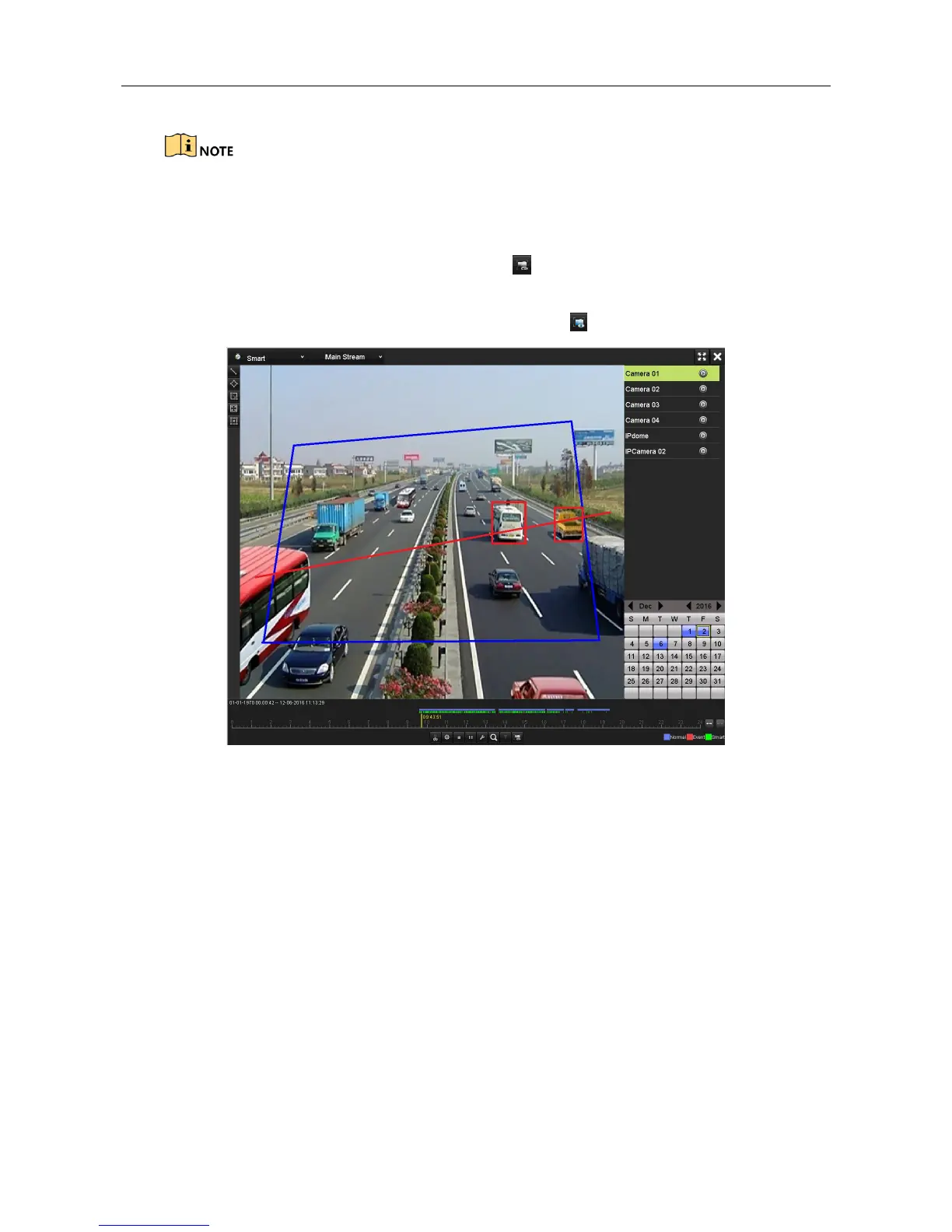

Figure 3-26 Show VCA Information in Smart Playback
Step 4 (Optional) Select the channel(s) to execute simultaneous playback of multiple channels.

HIKVISION DS-7316HQHI-F4/N Specifications

General

Product color	Black
Audio output channels	1.0 channels
Video compression formats	H.264
BNC input ports	1
Video input channels	16 channels
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Power consumption (typical)	45 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Dimensions (WxDxH)	445 x 390 x 70 mm
