HIKVISION DS-7316HQHI-F4/N Quick Start Guide

Digital Video Recorder Quick Start Guide
8
Table 1-2 Description of Front Panel 2
No.
Name
Function Description
1
POWER
Turns yellow when the power switch on the rear panel
is turned on.
STATUS
Flickers red when data is being read from or written
to HDD.
Tx/Rx
Flickers yellow when network connection is
functioning properly.
2
IR Receiver
Receiver for IR remote
3
USB Interfaces
Universal Serial Bus (USB) ports for additional devices
such as USB mouse and USB Hard Disk Drive (HDD).

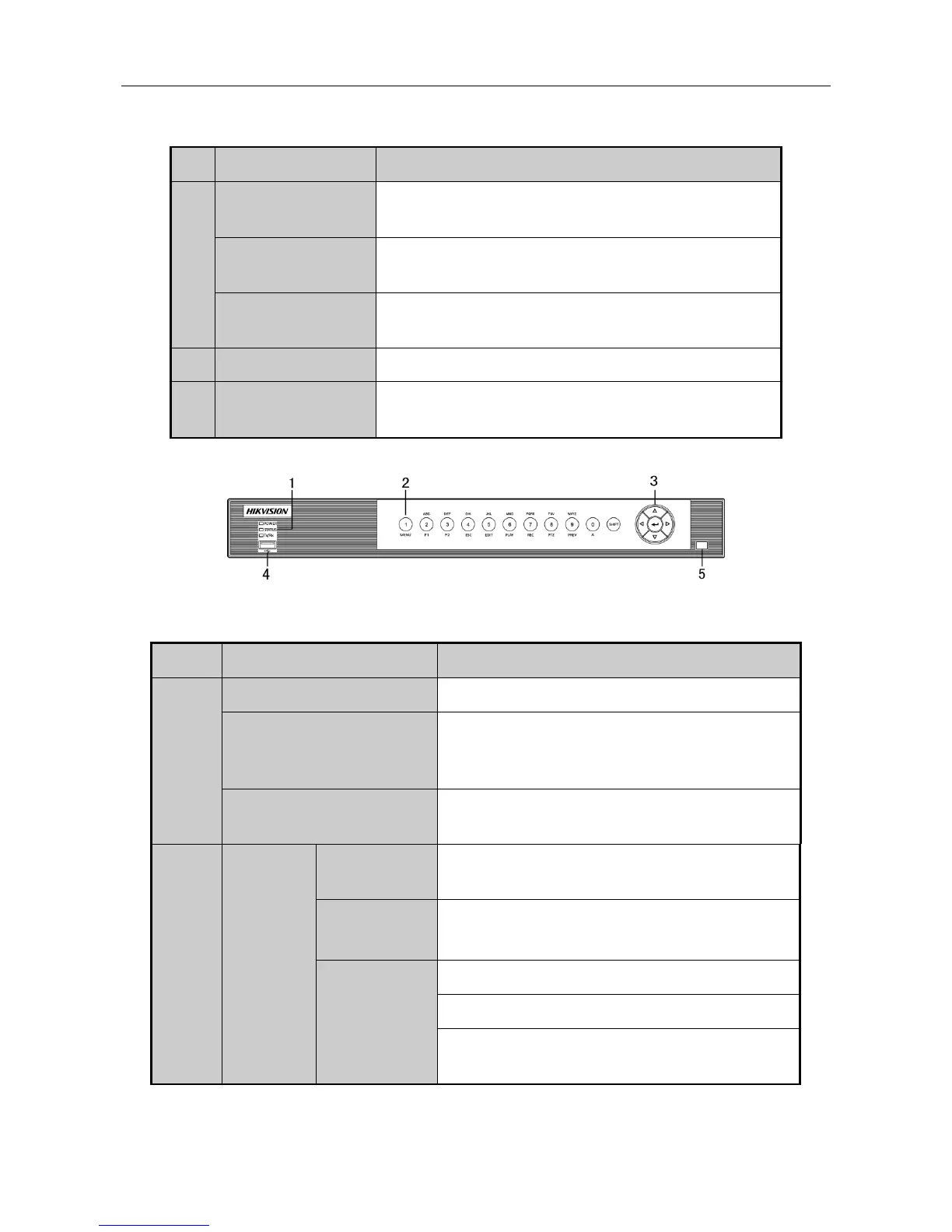

 Front Panel 3
Figure 1-3 Front Panel 3
Table 1-3 Description of Front Panel 3
No.
Name
Function Description
1
POWER
Turns green when the device is running.
STATUS
Flickers red when data is being read from or
written to HDD, and turns green when the SHIFT
function is realized.
Tx/Rx
Flickers green when network connection is
functioning properly.
2
Composite
Keys
SHIFT
Switches between the numeric or letter input
and functions of the composite keys.
1/MENU
Enters numeral “1”;
Accesses the main menu interface.
2/ABC/F1
Enters numeral “2”;
Enters letters “ABC”;
Uses the F1 button to select all items in a list
field;

HIKVISION DS-7316HQHI-F4/N Specifications

General

Product color	Black
Audio output channels	1.0 channels
Video compression formats	H.264
BNC input ports	1
Video input channels	16 channels
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Power consumption (typical)	45 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Dimensions (WxDxH)	445 x 390 x 70 mm
