Step 4 (Optional) Repeat the steps above to install other HDDs.
Step 5 Close the front panel and lock it with key.

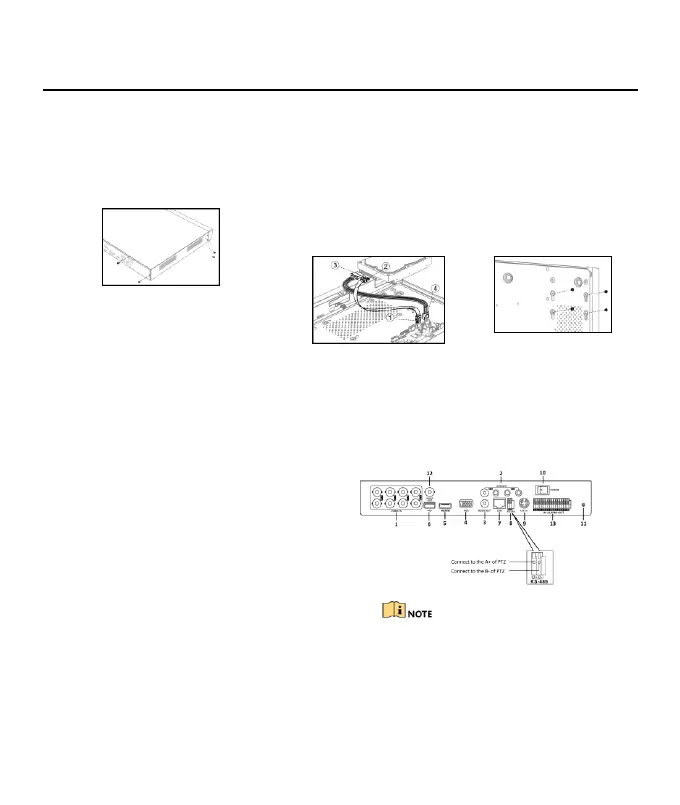

2.2.3 Fix-on-Bottom Installation
Fix-on-bottom installation is applicable when you need to install and fix the HDD on the device bottom.
Step 1 Remove the cover from device
by unfastening the screws on
panels.
Step 2 Connect the data cable and
power cable.
1) Connect one end of data cable to
the device motherboard.
2) Connect the other end of data
cable to HDD.
3) Connect one end of power cable
to HDD.
4) Connect the other end of power
cable to the device motherboard.
Step 3 Set the device up,
match HDD screw
threads with the
reserved holes on the
device bottom, and fix
HDD with screws.
Step 4 (Optional) Repeat the steps above to install other HDDs.
Step 5 Reinstall the device cover and fasten screws.
2.3 RS-485 and Controller Connection
To connect PTZ to the DVR:
Step 1 Disconnect pluggable block from the
RS-485 terminal block.
Step 2 Press and hold the orange part of the
pluggable block, insert signal cables
into slots, and release the orange
part. Ensure signal cables are in tight.
Step 3 Connect A+ on PTZ to D+ on terminal
block and B- on controller to D- on
terminal block. Fasten stop screws.
Step 4 Connect pluggable block back into
terminal block.
Typical Connection:
Figure 2-1 Controller Connection A
Make sure both the controller and DVR are grounded.
