Quick Start Guide of Network Video Recorder
9

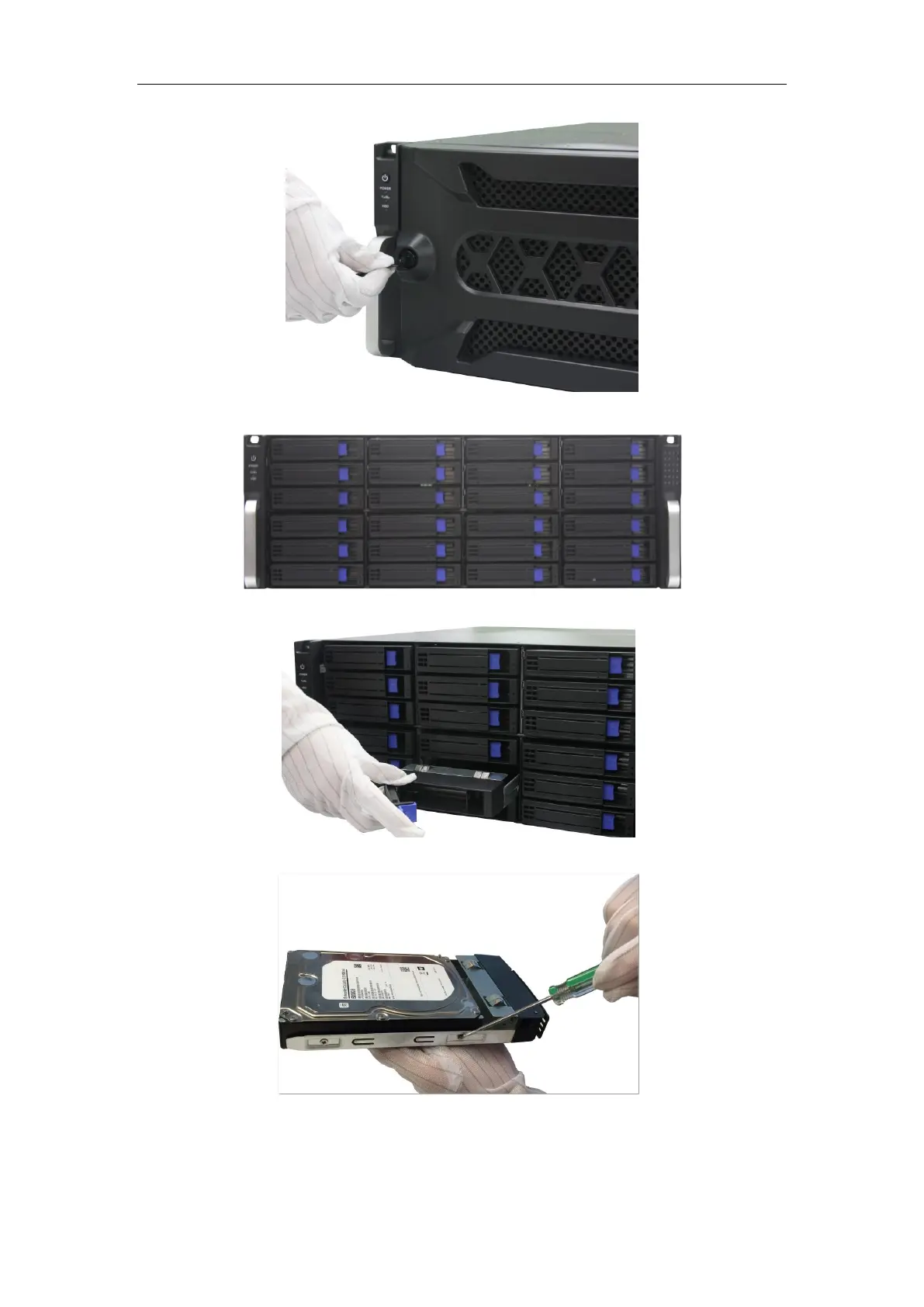

2. Take the front panel off from the device and then the HDD cases appear.
3. Press the blue spring lock of the HDD case according to the direction of arrow and pull the HDD case out.
4. Put the HDD into the HDD case (with the PCB side downward) and secure them together with 4 screws.
5. Insert the HDD case (with the PCB side of HDD downward) to the device and push the spring lock back to
the case to lock it.
