HIKVISION DS-96128NI-H16 - Rear Panel

Quick Start Guide of Network Video Recorder
13
Rear Panel

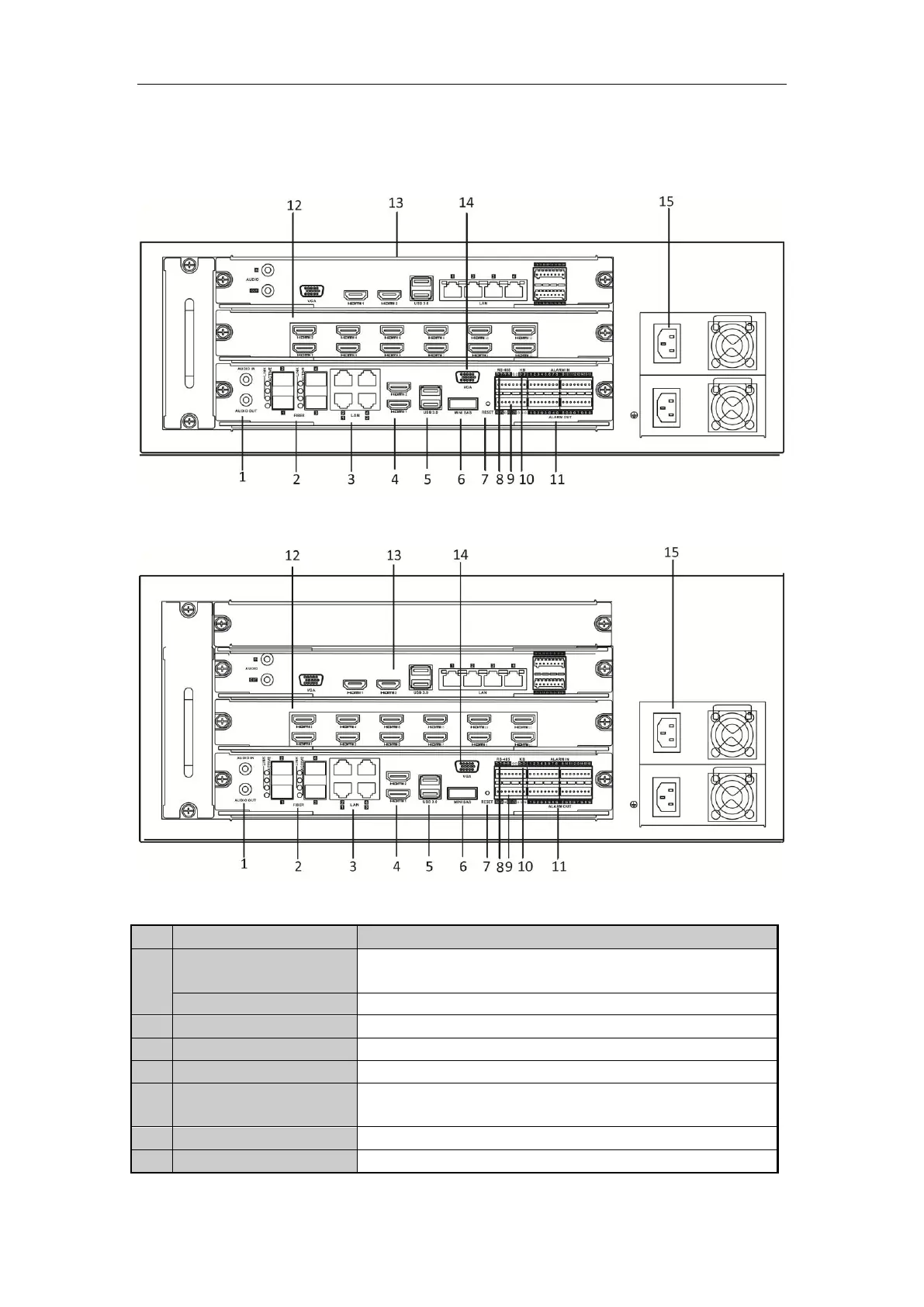

Rear Panel of DS-96000NI-H16/F16
Rear Panel of DS-96000NI-H24/F24
No.
Item
Description
1
AUDIO OUT
RCA connector for audio output. This connector is synchronized with
VGA video output.
AUDIO IN
RCA connector for audio input.
2
FIBER Interface
4 FIBER network interfaces.
3
LAN Interface
4 LAN network interfaces.
4
HDMI
TM
2 HDMI
TM
video output connectors.
5
USB 3.0 interface
Universal Serial Bus (USB) ports for additional devices such as USB
mouse and USB Hard Disk Drive (HDD).
6
MINI SAS (Optional)
Connects to SAS expansion enclosure.
7
Reset
Reset the device.
