Access Control Terminal·User Manual
2
Chapter 2 Component Description

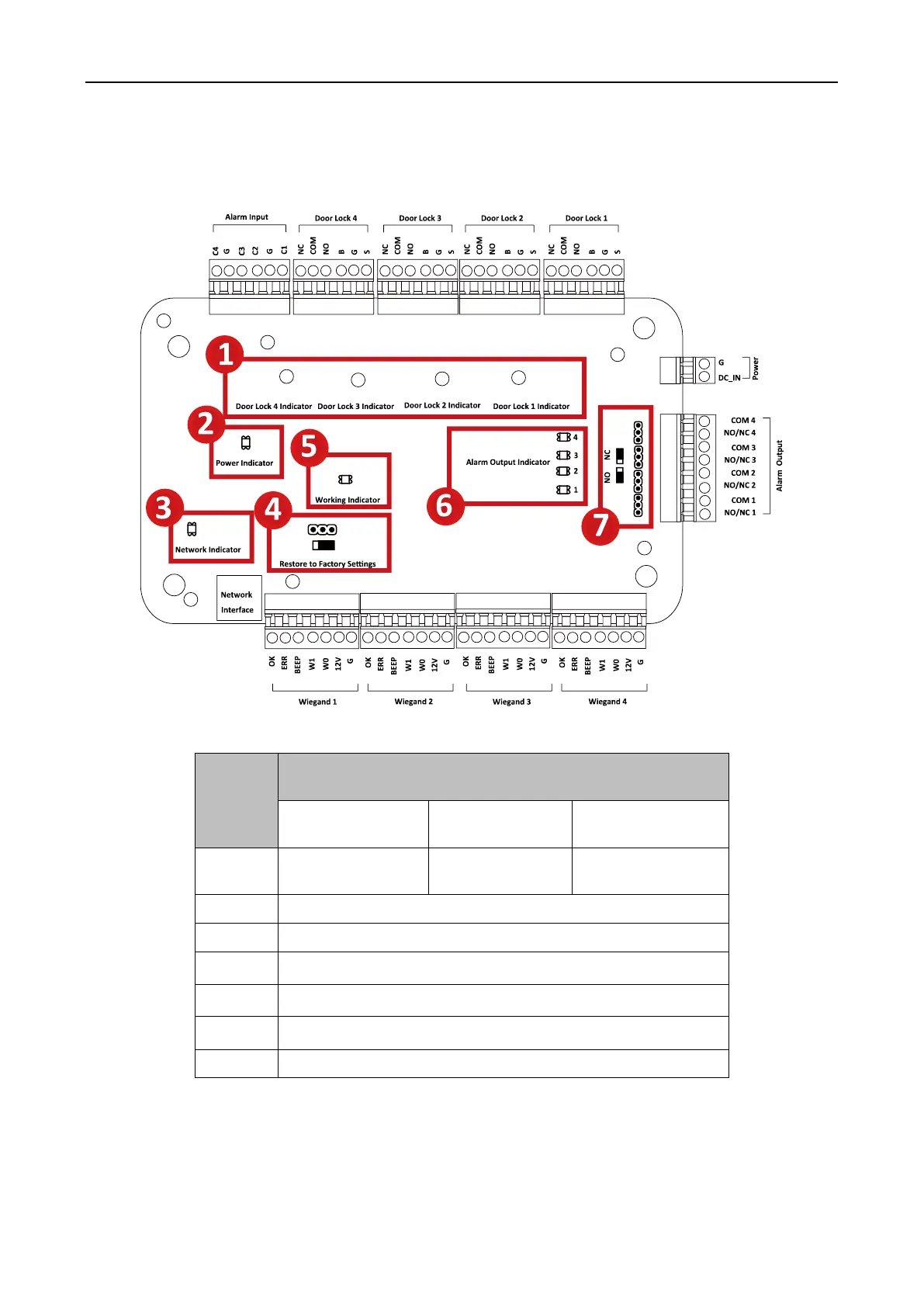

Take DS-K2804 as an example, the component schematic diagram is shown below.
DS-K2800 component descriptions are as follows:
No.
Component Description
DS-K2801
DS-K2802
1
Door Lock 1
Indicator
Door Lock 1/2
Indicator
2
Power Indicator
3
Network Indicator
4
Jumper Cap for Restoring Factory Settings
5
Working Indicator
6
Alarm Output Indicator
7
Alarm Output (NO/NC) Jumper Cap
