HIKVISION DS-K2804 User Manual

Access Control Terminal·User Manual
29
resetting the password monthly or weekly can better protect your product.

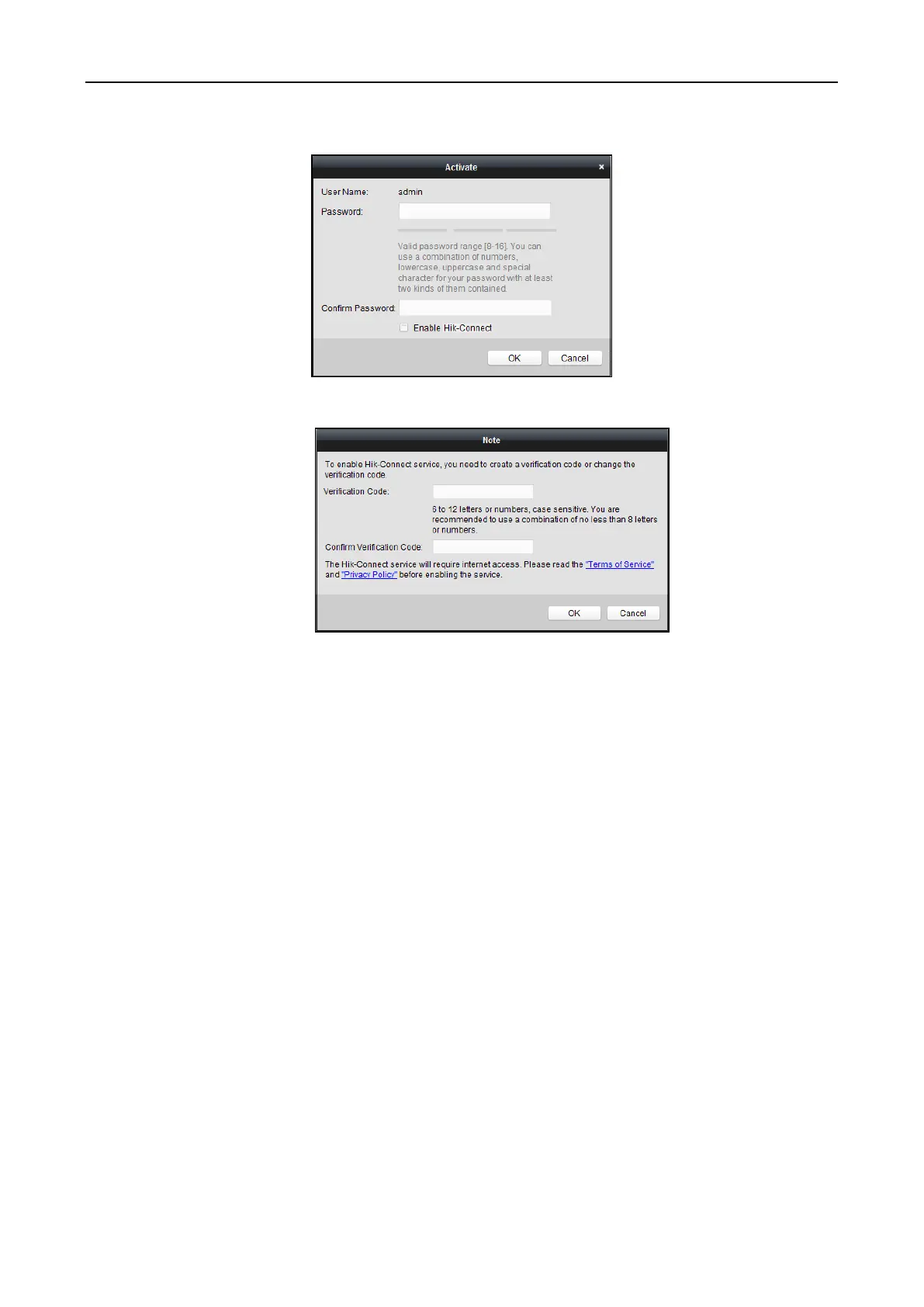

5. (Optional) Enable Hik-Connect service when activating the device if the device supports.
1) Check Enable Hik-Connect checkbox to pop up the Note dialog.
2) Create a verification code.
3) Confirm the verification code.
4) Click Terms of Service and Privacy Policy to read the requirements.
5) Click OK to enable the Hik-Connect service.
6. Click OK to activate the device.
A “The device is activated.” window pops up when the password is set successfully.
7. Click Modify Netinfo to pop up the Modify Network Parameter interface.
Note: This function is only available on the Online Device area. You can change the device IP
address to the same subnet with your computer if you need to add the device to the software.
8. Change the device IP address to the same subnet with your computer by either modifying the
IP address manually or checking the checkbox of DHCP.
9. Input the password set in step 4 and click OK to complete the network settings.

HIKVISION DS-K2804 Specifications

General

Product type	Access controller
Certification	CE, FCC
Compatibility	Wiegand
Mounting type	Wall
Product color	Black
Brand compatibility	Hikvision
Operating temperature (T-T)	-20 - 65 °C
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	285 mm
Width	237 mm
Height	69 mm
