HIKVISION DS-KB2411T-IM - Wiring 1 (1 Door Station and 1 Indoor Station)

Video Door Phone User Manual
6
3.2.1 Wiring 1 (1 Door Station and 1 Indoor Station)
Caution
● Do not pull power cables on the rear panel of the door station hard to avoid the
disconnection of power cables.
● Use the insulated tape to tape the bare wires, so as to avoid the short circuit.
Indoor Station
Analog Camera Electric Bolt
Door Station
B+ — Wire for power supply
V — Wire for video input
A — Wire for audio input/output
G — Wire for grounding
The electric bolt need an
external power supply.

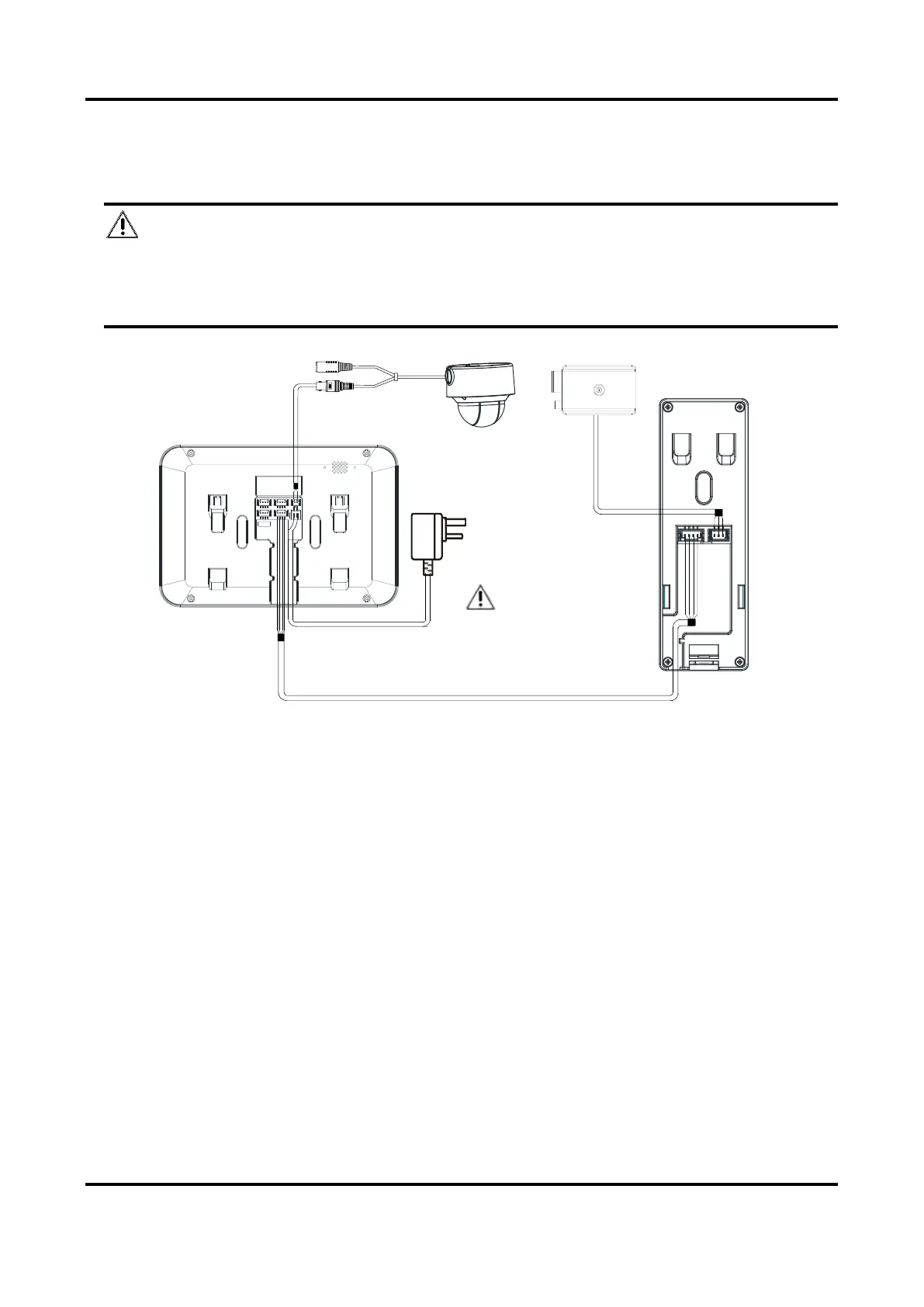

Figure 3-3 Wiring 1 (1 Door Station and 1 Indoor Station)
