HIKVISION DS-KB6403-WIP User Manual

9
2 Doorbell Installation
2.1 Attach Mounting Template
Mounting template is included in the box content, and it is an auxiliary help for you to
install the doorbell.
Steps
1. Determine the installation height of doorbell.

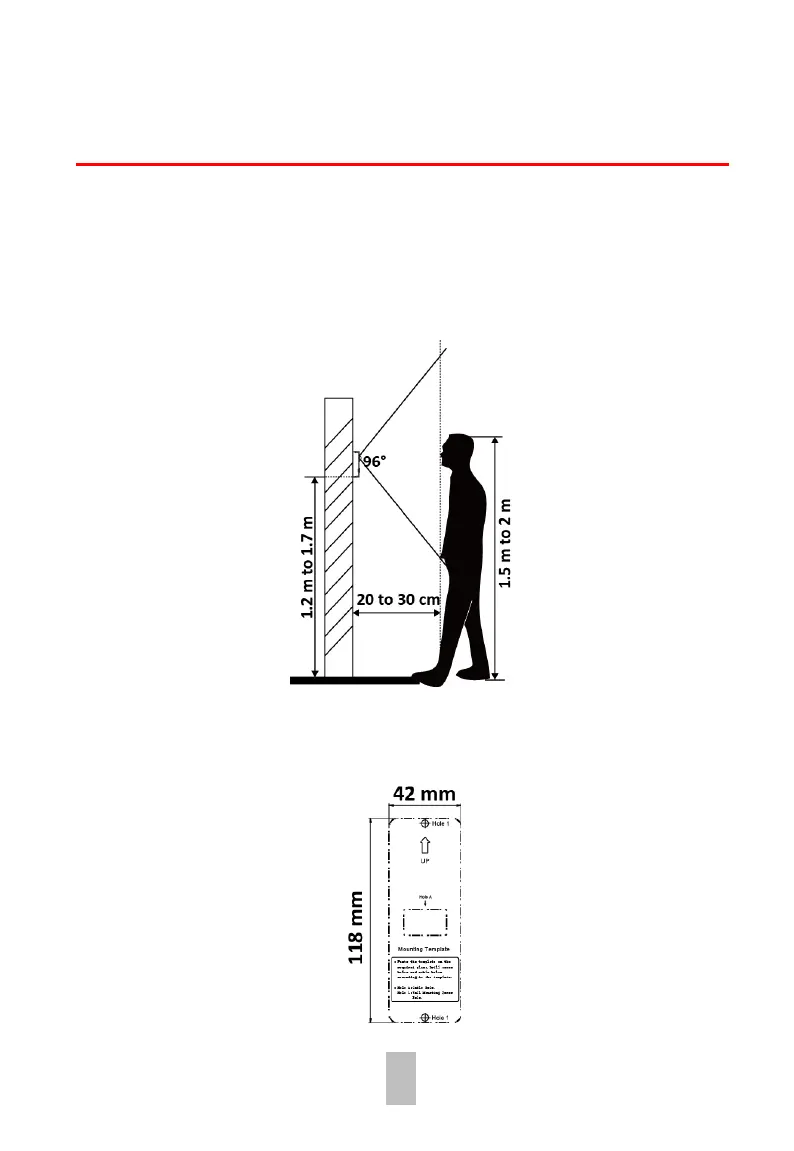

Figure 2-1 Suggested Installation Height
2. Align the cable hole on the mounting template with the cable hole on the wall.
3. Attach the mounting template on the wall.
Figure 2-2 Mounting Template

HIKVISION DS-KB6403-WIP Specifications

General

Color	Yes
Video codecs	H.264
Certification	CE
Frequency band	2.4 GHz
Number of buttons	2 buttons
Connectivity technology	Wireless
Sustainability certificates	RoHS
Number of displays supported	-
Maximum number of cameras supported	1
Voice codecs	G.711u
Megapixel	2 MP
Sensor type	CMOS
Supported video modes	720p
Viewing angle, vertical	96 °
Viewing angle, horizontal	180 °
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	128 GB
LED type	IR
Night vision distance	5 m
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	10 - 90 %
Display diagonal	- \
Operating system installed	Linux
Product color	Gray
International Protection (IP) code	IP54
Supported network protocols	TCP/IP, RTSP
Power consumption	0.6 mA
Operating voltage (door opener)	12 V

Weight and Dimensions

Depth	122.4 mm
Width	45.9 mm
Height	28.1 mm
